1746-OX8隔离继电器输出模块

1.产 品 资 料 介 绍：

1746-OX8 隔离继电器输出模块介绍

1. 属于 SLC 500 系列 8 通道继电器输出模块
2. 通道间完全电气隔离，抗干扰能力强
3. 支持交流和直流负载通用，适用范围广
4. 每路输出配备独立 LED 状态指示灯
5. 采用机械继电器触点，导通电阻小、带载能力强
6. 支持常开触点输出模式
7. 具备浪涌抑制电路，延长继电器使用寿命
8. 可拆卸端子排设计，布线与维护便捷
9. 占用 SLC 500 机架单个插槽位置
10. 由背板 5V DC 供电，无需额外辅助电源
11. 工作温度范围适应各类工业现场环境
12. 输出与 PLC 背板之间高压隔离，提升系统安全性
13. 可直接驱动接触器、报警器、阀门等大功率设备
14. 适用于需要电气隔离的开关控制场景
15. 该型号已停产，市场以二手、翻新备件为主

1746-OX8隔离继电器输出模块 英文资料：

Introduction to 1746-OX8 Isolation Relay Output Module

1746-OX8 is a Rockwell SLC 500 series 8-channel isolation relay output module designed specifically for strong electrical loads and high safety isolation requirements. The following is a detailed introduction:

Belonging to SLC 500 series 8-channel relay output module

Complete electrical isolation between channels, strong anti-interference ability

Supports both AC and DC loads, with a wide range of applications

Each output is equipped with an independent LED status indicator light

Using mechanical relay contacts, with low conductivity and strong load-bearing capacity

Support normally open contact output mode

Equipped with surge suppression circuit to extend the service life of relays

Detachable terminal block design, convenient wiring and maintenance

Occupy a single slot position in the SLC 500 rack

Powered by 5V DC from the backplane, no additional auxiliary power supply required

The working temperature range is suitable for various industrial site environments

High voltage isolation between output and PLC backplane to enhance system safety

Can directly drive high-power equipment such as contactors, alarms, valves, etc

Suitable for switch control scenarios that require electrical isolation

This model has been discontinued, and the market mainly consists of second-hand and refurbished spare parts

In summary, 1746-OX8 is a highly reliable isolation relay output module in the SLC 500 system. With its channel isolation and strong load capacity, it is widely used in industrial control applications that require high safety and stability.

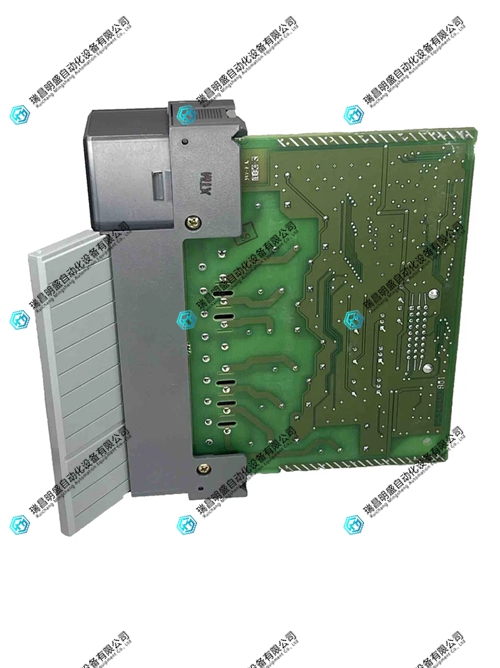

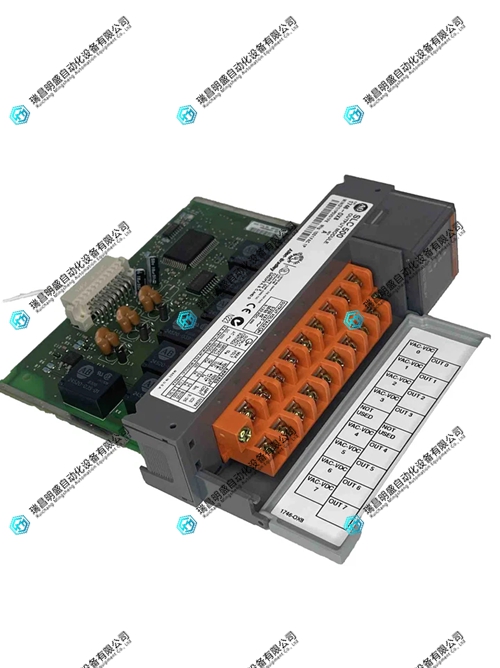

1746-OX8隔离继电器输出模块 产品展示
