1784-KTX通信接口模块

1.产 品 资 料 介 绍：

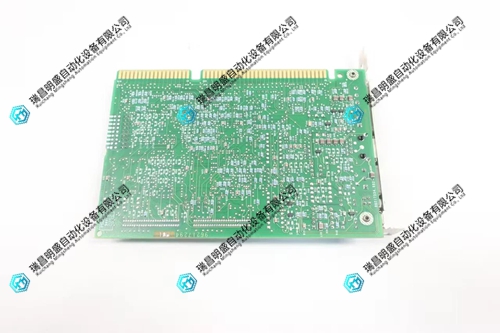

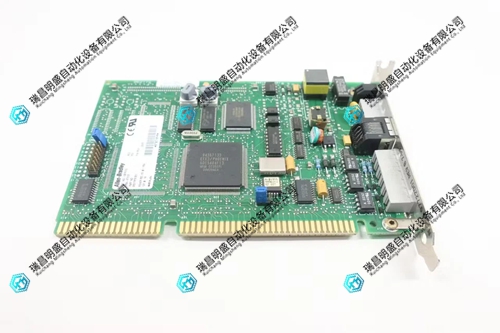

1784-KTX 通信接口模块（ISA 总线）

核心参数（纯文本、无链接）

1. 型号：1784‑KTX / 1784‑KTX/B，半长 ISA 卡，单通道设计。
2. 总线类型：16 位 ISA/EISA 插槽，不兼容 8 位 ISA。
3. 支持协议：DH+、DH‑485；可直连 PLC‑2/PLC‑3 背板。
4. 通信功能：
   • 作为 DH+ / DH‑485 网络活动节点，与 PLC‑5、SLC 5/04 等通信。
   • 远程 I/O 扫描器，管理远程 I/O 站。
   • 支持 PLC‑PLC 通信、编程器在线监控与程序上传下载。
5. 物理接口：1 个 15 针 D‑sub 接口，用于连接 DH+ / DH‑485 网络电缆。
6. 供电：由 ISA 总线 5V DC 供电，无需外部电源。
7. 状态指示：板载 LED，显示电源、网络活动与故障状态。
8. 尺寸重量：约 160×114×25mm，重量约 0.25–0.34kg。
9. 环境参数：工作温度 0–60°C，存储温度‑40–85°C，湿度 5%–95% 无凝露。
10. 兼容系统：适配 Windows NT/98 等传统工控系统，需配套 KTX Utilities 软件。
11. 产品状态：已停产，市场以翻新 / 备件为主，用于老旧 PLC‑5、SLC 系统维护。
12. 应用场景：工厂自动化、过程控制、老旧产线监控、PLC 程序调试与数据采集。

1784-KTX通信接口模块 英文资料：

1784-KTX Communication Interface Module (ISA Bus)

1784-KTX is a Rockwell Allen Bradley 1784 series ISA bus communication interface card, used for industrial PC/upper computer access to DH+, DH-485 networks, and can also be directly connected to PLC-2/PLC-3 backboards, with remote I/O scanning and PLC communication functions.

Core parameters (plain text, no links)

Model: 1784-KTX/1784-KTX/B, half length ISA card, single channel design.

Bus type: 16 bit ISA/EISA slot, not compatible with 8-bit ISA.

Supporting protocols: DH+, DH-485; Can be directly connected to PLC-2/PLC-3 backboards.

Communication function:

As an active node of DH+/DH-485 network, communicate with PLC-5, SLC 5/04, etc.

Remote I/O scanner, managing remote I/O stations.

Support PLC-PLC communication, online monitoring of programmers, and program upload and download.

Physical interface: 1 15 pin D-sub interface, used to connect DH+/DH-485 network cables.

Power supply: Powered by ISA bus 5V DC, no external power supply required.

Status indication: onboard LED, displaying power, network activity, and fault status.

Size and weight: approximately 160 × 114 × 25mm, weighing approximately 0.25-0.34kg.

Environmental parameters: working temperature 0-60 ° C, storage temperature -40-85 ° C, humidity 5% -95%, no condensation.

Compatible system: Suitable for traditional industrial control systems such as Windows NT/98, requiring KTX Utilities software.

Product status: discontinued, mainly for refurbishment/spare parts in the market, used for maintenance of old PLC-5 and SLC systems.

Application scenarios: Factory automation, process control, monitoring of old production lines, PLC program debugging and data collection.

1784-KTX is a standard interface for connecting ISA bus to DH+network in traditional Rockwell systems, suitable for communication networking between old industrial computers and PLC-5/SLC systems.
