AB 1762-L24BXB可编程控制器属于MicroLogix 1200系列

发布时间:2024-05-15人气:
  • AB 1762-L24BXB可编程控制器属于MicroLogix 1200系列
  • AB 1762-L24BXB可编程控制器属于MicroLogix 1200系列
  • AB 1762-L24BXB可编程控制器属于MicroLogix 1200系列
  • AB 1762-L24BXB可编程控制器属于MicroLogix 1200系列
  • AB 1762-L24BXB可编程控制器属于MicroLogix 1200系列

 A-B  1762-L24BXB可编程控制器 是罗克韦尔自动化(Rockwell Automation)旗下的Allen-Bradley品牌的一款产品。这款控制器模块属于MicroLogix 1200系列,具有一系列的技术特点和功能。

 A-B  1762-L24BXB可编程控制器 详情介绍:

AB 1762-L24BXB可编程控制器是罗克韦尔自动化(Rockwell Automation)旗下的Allen-Bradley品牌的一款产品。这款控制器模块属于MicroLogix 1200系列,具有一系列的技术特点和功能。

首先,它具有内置电源,额定输入电源电压为24VDC。此外,它配有一个mini-DIN 8引脚圆形RS232连接器,这个连接器安装在控制器的前面板上,可以用于多种通信功能,如编程、硬件配置、在线编辑以及与可视化系统的通信,如监控和数据采集(SCADA)和人机界面(HMI)。

在电源方面,这款控制器在5VDC时提供400mA的输出电流,在24VDC时提供350mA的输出电流,总电源使用功率为27瓦。它的设计能够承受20ms 15A的浪涌电流,显示了其出色的电气性能。

在环境适应性方面,这款控制器的工作温度范围为+0°C至+55°C(+32°F至+131°F),储存条件为相对湿度5-95%的-40°C至+85°C(-40°F至+185°F)的设施中。这表明它可以在广泛的工业环境中稳定运行。

安装方面,AB 1762-L24BXB支持DIN导轨或直接面板安装,为用户提供了灵活的安装选择。其物理尺寸为90毫米(DIN插销打开时)或104毫米(DIN插销关闭时)、110毫米(宽)和87毫米(深),体积适中,便于安装和集成。

在功能方面,这款控制器具有24个I/O点,包括10个24V DC输入项和4个快速24V DC输入项,以及5个继电器输出、4个24V DC FET输出和1个高速24V DC FET输出。这些丰富的I/O选项使其能够满足各种工业自动化和控制需求。

此外,由于采用了模块化设计,用户可以独立选择I/O、端子类型和网络接口,使得这款控制器在应用中具有高度的灵活性和可定制性。同时,其可拆卸线系统和可配置功能使得安装、维护和故障诊断变得更加简单和方便。

总的来说,AB 1762-L24BXB可编程控制器是一款功能强大、性能稳定、安装方便、易于维护的工业自动化控制设备,广泛应用于各种工业自动化和控制系统中。

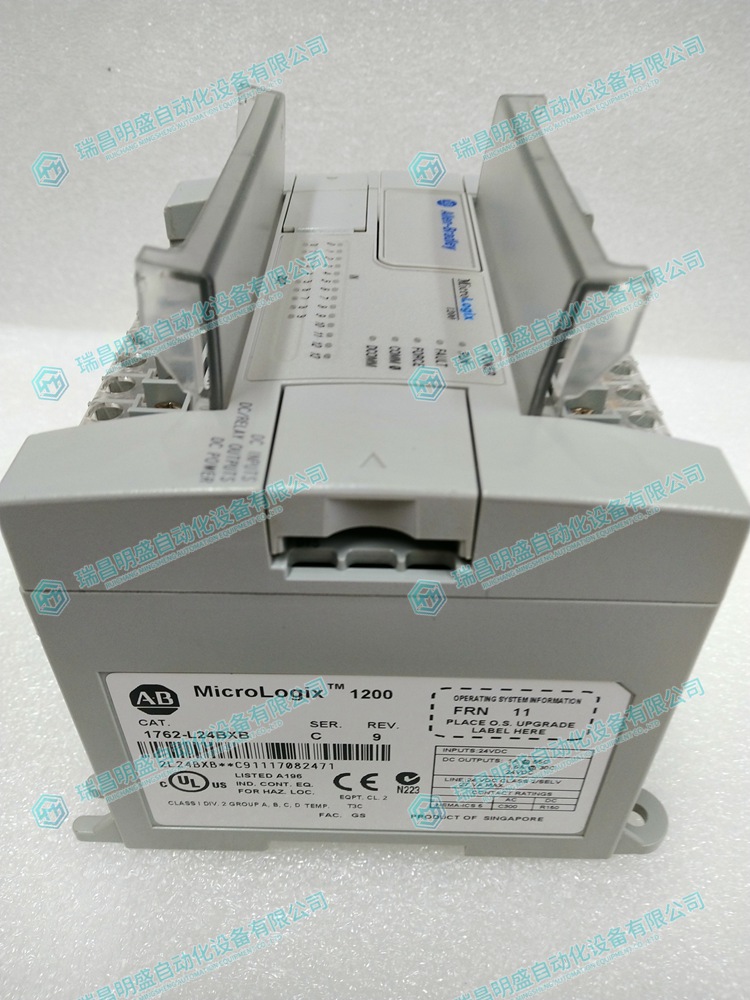

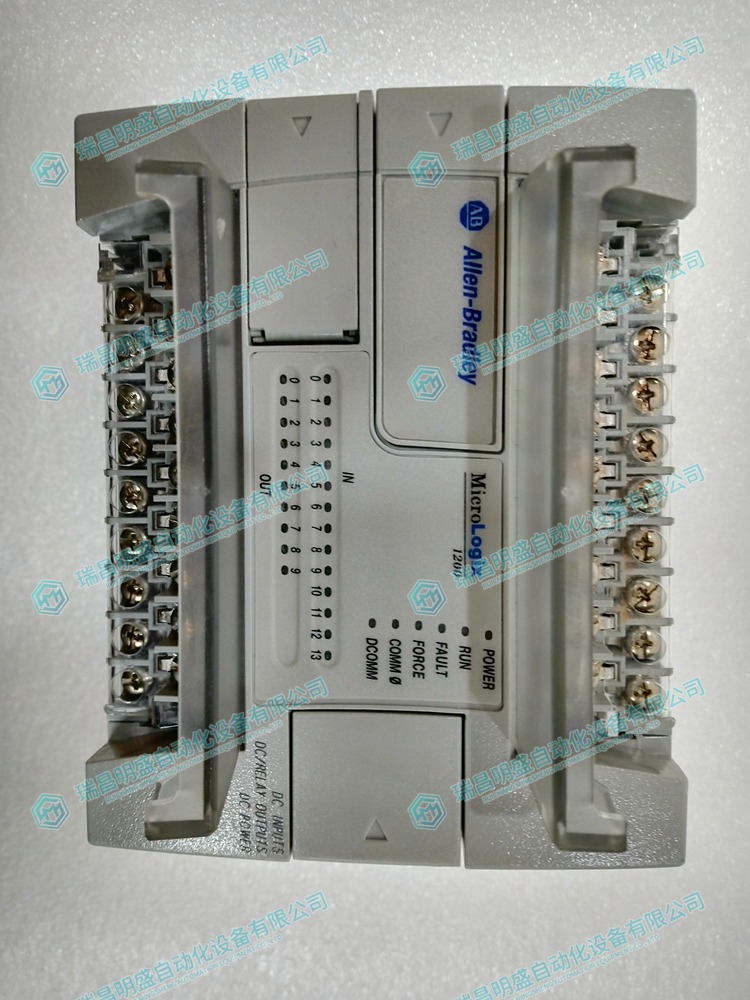

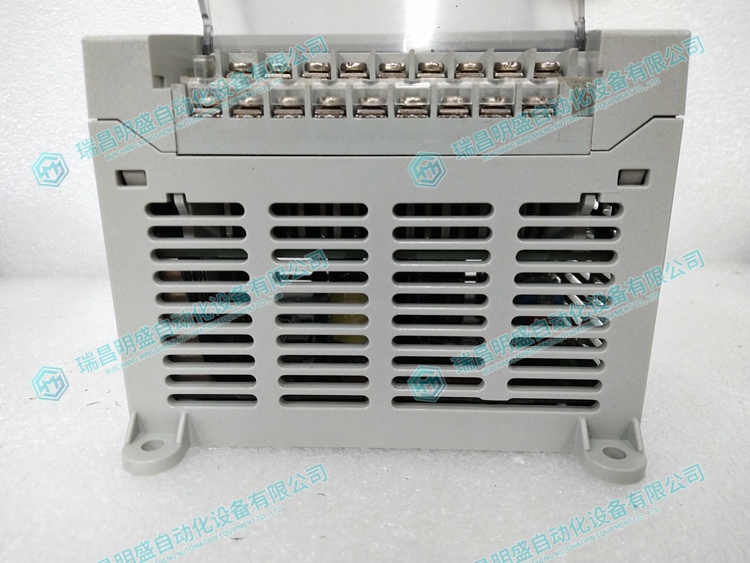

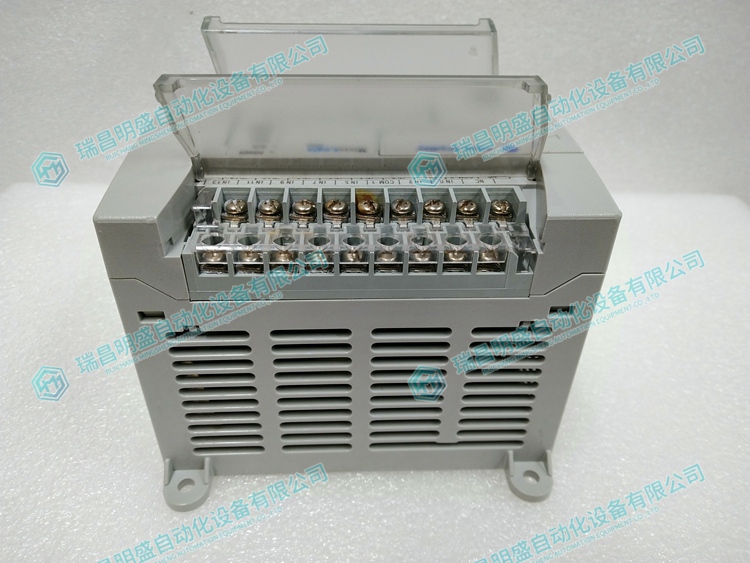

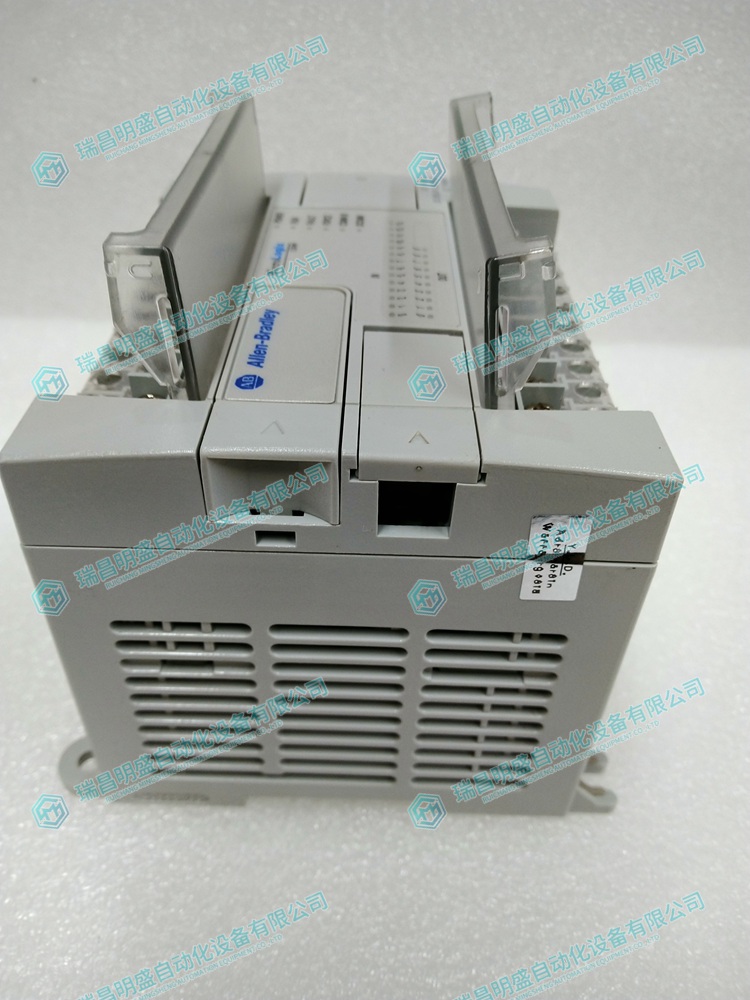

 A-B  1762-L24BXB可编程控制器 实物图片:


 A-B  1762-L24BXB可编程控制器 实物视频

A-B 1762-L24BXB Programmable Controller Details Introduction:

The AB 1762-L24BXB programmable controller is a product of the Allen Bradley brand under Rockwell Automation. This controller module belongs to the MicroLogix 1200 series and has a series of technical features and functions.

Firstly, it has a built-in power supply with a rated input power voltage of 24VDC. In addition, it is equipped with a mini DIN 8-pin circular RS232 connector, which is installed on the front panel of the controller and can be used for various communication functions such as programming, hardware configuration, online editing, and communication with visualization systems such as SCADA and HMI.

In terms of power supply, this controller provides an output current of 400mA at 5VDC and 350mA at 24VDC, with a total power consumption of 27 watts. Its design can withstand a surge current of 20ms 15A, demonstrating its excellent electrical performance.

In terms of environmental adaptability, the operating temperature range of this controller is+0 ° C to+55 ° C (+32 ° F to+131 ° F), and the storage conditions are -40 ° C to+85 ° C (-40 ° F to+185 ° F) in facilities with relative humidity of 5-95%. This indicates that it can operate stably in a wide range of industrial environments.

In terms of installation, AB 1762-L24BXB supports DIN rail or direct panel installation, providing users with flexible installation options. Its physical dimensions are 90 millimeters (when the DIN pin is open) or 104 millimeters (when the DIN pin is closed), 110 millimeters (wide), and 87 millimeters (deep), with a moderate volume for easy installation and integration.

In terms of functionality, this controller has 24 I/O points, including 10 24V DC input items and 4 fast 24V DC input items, as well as 5 relay outputs, 4 24V DC FET outputs, and 1 high-speed 24V DC FET output. These rich I/O options enable it to meet various industrial automation and control needs.

In addition, due to its modular design, users can independently choose I/O, terminal type, and network interface, making this controller highly flexible and customizable in applications. Meanwhile, its detachable cable system and configurable features make installation, maintenance, and fault diagnosis simpler and more convenient.

Overall, the AB 1762-L24BXB programmable controller is a powerful, stable, easy to install, and easy to maintain industrial automation control equipment, widely used in various industrial automation and control systems.
