1.产 品 资 料 介 绍：
核心参数
- 品牌型号：ABB GJV3074366R1（07AA61R1），适配 AC31 系列 PLC。
- 输出通道：4 路独立 4-20mA 电流输出，8 位 DAC 分辨率。
- 输出精度：8 位对应 256 级调节，适配常规工业控制精度需求。
- 负载能力：适配标准工业负载阻抗，支持常见执行器直接驱动。
- 物理规格：重量约 0.56kg，产地德国，工业级机械结构设计。
产品特点
- 通道独立：4 路输出相互隔离，降低信号干扰，故障互不影响。
- 即插即用：适配 AC31 PLC 背板总线，安装接线便捷，调试效率高。
- 稳定可靠：工业级元器件选型，耐受温湿度波动与电磁干扰。
- 诊断功能：具备输出短路、过载保护与故障指示，便于快速排查问题。
- 适配性强：标准 4-20mA 信号，兼容阀门、变频器等主流执行设备。
典型应用
- 工业过程控制：用于流量、压力、温度等参数的调节阀控制。
- 能源电力：适配变电站、光伏 / 风电的设备状态调节与数据反馈。
- 石油化工：用于管道、反应釜等设备的远程模拟量控制，耐受恶劣工况。
- 市政水务：适配水厂、污水厂的水泵、阀门等设备的变频调速与开度调节。
- 智能楼宇：实现空调、通风等设备的连续调节，优化能耗与环境舒适度。
GJV3074366R1 07AA61R1模拟输出模块 英文资料：
GJV3074366R1 07AA61R1 is a 4-channel analog output module of ABB's AC31 series PLC, with a core of 4-channel 4-20mA, 8-bit resolution current output, suitable for industrial continuous process control scenarios. Here are 15 concise points:
Core parameters
Brand and model: ABB GJV3074366R1 (07AA61R1), compatible with AC31 series PLC.
Output channel: 4-channel independent 4-20mA current output, 8-bit DAC resolution.
Output accuracy: 8-bit corresponds to 256 level adjustment, suitable for conventional industrial control accuracy requirements.
Load capacity: Suitable for standard industrial load impedance and supports direct drive of common actuators.
Physical specifications: Weight approximately 0.56kg, origin in Germany, industrial grade mechanical structure design.
Product Features
Channel independence: 4 outputs are isolated from each other to reduce signal interference, and faults do not affect each other.
Plug and play: compatible with AC31 PLC backplane bus, easy installation and wiring, high debugging efficiency.
Stable and reliable: Industrial grade component selection, resistant to temperature and humidity fluctuations and electromagnetic interference.
Diagnostic function: It has output short circuit, overload protection, and fault indication, making it easy to quickly troubleshoot problems.
Strong adaptability: Standard 4-20mA signal, compatible with mainstream execution equipment such as valves and frequency converters.
Typical Applications
Industrial process control: used for regulating valve control of parameters such as flow rate, pressure, temperature, etc.
Energy and electricity: equipment status adjustment and data feedback for adapting substations and photovoltaic/wind power.
Petrochemical industry: used for remote analog control of pipelines, reactors, and other equipment, capable of withstanding harsh working conditions.
Municipal water management: Suitable for frequency conversion speed regulation and opening adjustment of water pumps, valves and other equipment in water plants and sewage treatment plants.
Intelligent buildings: achieve continuous adjustment of air conditioning, ventilation and other equipment, optimize energy consumption and environmental comfort.

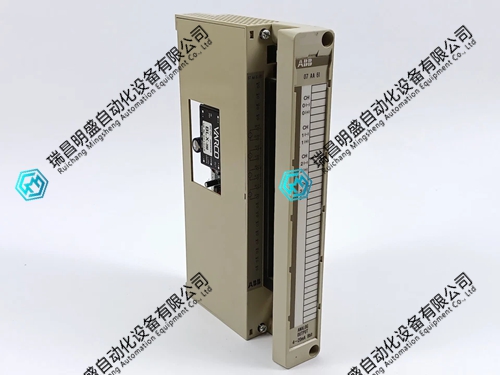

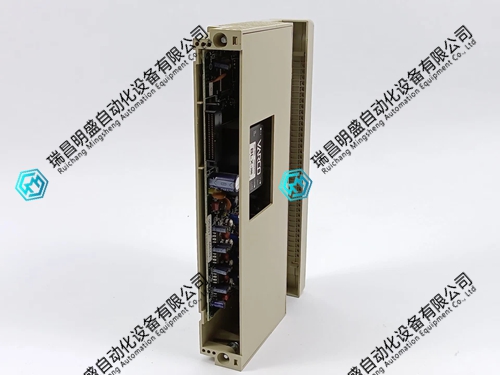

GJV3074366R1 07AA61R1模拟输出模块 产品展示
