AMAT Applied Materials 0190-00312控制器机架
1.产 品 资 料 介 绍：
关键规格
功能特点
AMAT Applied Materials 0190-00312控制器机架 英文资料：
The AMAT Applied Materials 0190-00312 controller rack is a semi rack (1/2 Rack) modular installation structure, mainly used for integrating and fixing various controller modules, such as pressure, temperature, RF matching devices, etc., to achieve centralized management and standardized access.
Key specifications
Project specification remarks
The external dimensions of the 1/2 rack (approximately 482.6 × 215.9 × 177.8 mm) comply with the EIA-310 standard
Installation method: Panel or rail installation, compatible with equipment cabinets
Module capacity 4-6 standard 1/2 module slots depending on model
Power supply mode: 24 VDC centralized power supply (optional redundancy), internal bus allocation
Backplane interface power bus, RS-485/RS-232 communication bus support Modbus RTU
Mechanical material: Aluminum alloy or stainless steel frame with strong corrosion resistance
Natural air cooling (fan optional) with low noise and high efficiency for heat dissipation design
Protection level IP20 (optional IP54) dustproof and splash proof
Weight approximately 2.5-3.5 kg without module
Features
Standardized access: compatible with multiple AMAT 1/2 size control modules, easy to expand and maintain.
Centralized management: Provide unified power supply and communication backplane, simplify wiring and debugging.
Compact structure: 1/2 rack design saves space and is suitable for devices with limited space.
High reliability: Made of aluminum alloy or stainless steel, with redundant power supply and anti-interference design, ensuring long-term stable operation.
Heat dissipation optimization: Internal air duct design, fans can be installed as needed to meet the requirements of high temperature environments.

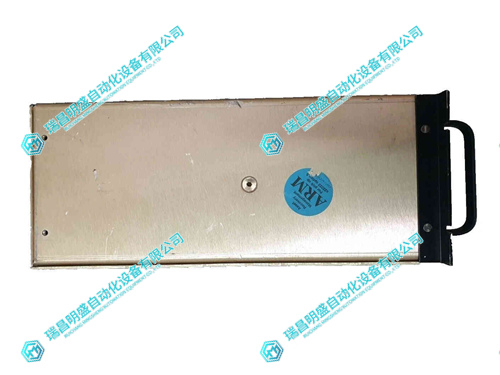

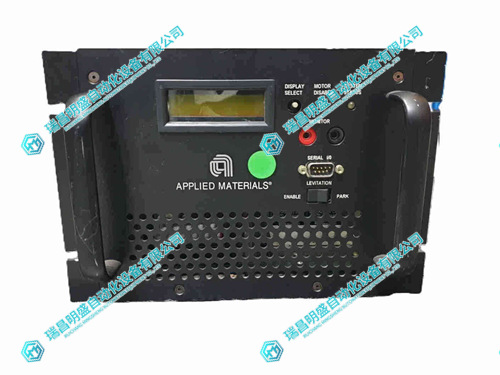

AMAT Applied Materials 0190-00312控制器机架 产品展示
