AMAT Applied Materials 0190-35116电源控制器

AMAT Applied Materials 0190-35116电源控制器

1.产 品 资 料 介 绍：

AMAT Applied Materials 0190-35116电源控制器 英文资料：

1、 Core power regulation performance characteristics

Multi channel precise power control capability

Specially designed for multi component power management of semiconductor equipment, it is speculated to integrate 4-8 independent power output channels, supporting mixed output modes of AC (such as 220V/380V) and DC (such as 12V/24V/48V), with each channel rated current covering 5A-30A, which can accurately match the power requirements of different loads such as single board computers, pneumatic control boards, sensors, etc. By using digital pulse width modulation (PWM) and PID closed-loop control technology, the output voltage accuracy reaches ± 0.5%, the current stability is ≤± 1%, and it can effectively suppress voltage ripple caused by grid fluctuations (ripple factor ≤ 20mV), providing a clean power supply environment for sensitive electronic components.

Dynamic load adaptive adjustment function

Built in load monitoring algorithm can capture real-time power changes of downstream devices (such as instantaneous current surges caused by motor start stop and valve switching), and adjust output parameters within 50 μ s to avoid voltage drops or current overload. Supports switching between three working modes: "constant voltage", "constant current", and "constant power". For example, providing constant power output for heating components to ensure temperature stability, providing constant voltage output for sensor modules to ensure signal acquisition accuracy, and adapting to the power supply needs of semiconductor processes in multiple scenarios.

Efficient Energy Management and Energy Consumption Optimization

Equipped with high-precision energy metering chips, it can collect real-time voltage, current, power, and cumulative energy consumption data for each channel, with a measurement accuracy of ± 0.2% FS, and supports generating energy consumption reports by hour/day/month. Equipped with intelligent sleep function, when downstream devices are in standby mode, the corresponding channel output power is automatically reduced to below 10%. With a power conversion efficiency of over 92%, long-term operation can reduce equipment energy consumption in semiconductor factories by 15% -20%.

2、 Safety protection and fault handling characteristics

Multi level security protection throughout the entire chain

Integrated eight fold safety protection mechanism, including overvoltage protection (triggered by output voltage exceeding 115% of rated value), overcurrent protection (instantaneous current exceeding 150% of rated value cut-off), short circuit protection (short circuit response time ≤ 10 μ s), over temperature protection (automatic derating for internal temperature ≥ 85 ℃), over power protection, reverse connection protection, leakage protection (residual current action value ≤ 10mA), and lightning protection (anti surge voltage 4kV). All protection functions have dual modes of self recovery and manual reset, which can quickly restore power supply and reduce downtime after troubleshooting.

Real time fault diagnosis and intelligent alarm

Built in fault diagnosis circuit can monitor the operation status of power module, output circuit, and communication interface in real time. When component aging, poor circuit contact, or communication interruption is detected, an alarm will be immediately sent through the panel LED indicator light (red/yellow/green color to distinguish the fault level) and buzzer, and a fault code will be output through the communication interface (such as "CH2-OV" representing overvoltage of channel 2). Support alarm information storage (up to 100 fault logs can be recorded),

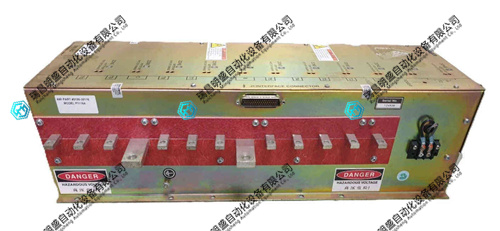

AMAT Applied Materials 0190-35116电源控制器 产品展示

 产品视频
