TRICONEX DI3301 数字输入模块

TRICONEX DI3301 数字输入模块

1.产 品 资 料 介 绍：

中文资料：

TRICONEX DI3301 是一款 32 点数字量输入模块，用于从现场采集数字信号（开关量、干接点、TTL 信号等），并传输给主处理器（主控单元）进行逻辑判断和安全联锁操作。

【关键技术参数】

【环境与可靠性参数】

• 工作温度：0°C 至 +60°C

• 存储温度：-40°C 至 +85°C

• 抗震性：符合工业控制标准

• 电磁兼容性（EMC）：符合 IEC/EN61000 系列标准

• 防护等级：需安装于控制柜内（IP20）

【产品特性】

• ✅ 支持 三重冗余架构（Triple Modular Redundancy, TMR）

• ✅ 实现 高安全等级（SIL3）功能安全认证

• ✅ 支持 通道级诊断功能，实时监测输入状态与健康状况

• ✅ 与 Tricon V9 系统或早期 V8 控制系统兼容

• ✅ 提供 在线更换（Hot Swap）功能，保障不中断运行

• ✅ 通道隔离，防止现场干扰影响系统整体运行

英文资料：

TRICONEX DI3301 is a 32-bit digital input module used to collect digital signals (switch values, dry contacts, TTL signals, etc.) from the field and transmit them to the main processor (control unit) for logical judgment and safety interlock operations.

[Key Technical Parameters]

Project parameter description

32 input points (isolated separately for each channel)

Input type: dry contact or active input (DC signal)

Input voltage range 0-32 VDC

Triple redundant communication architecture (each input point is independently collected by three channels)

Module redundancy supports online hot plugging, triple redundancy support

The module diagnostic function supports real-time detection of open circuit, short circuit, self diagnosis, overvoltage, etc

Communicate with the main control and communicate with the Tricon main processor through the I/O bus

Installation method: ｉｎｓｅｒｔ into Tricon rack (standard 16 slot system)

Module size standard Tricon module size

Environmental and reliability parameters

Working temperature: 0 ° C to+60 ° C

Storage temperature: -40 ° C to+85 ° C

Seismic resistance: meets industrial control standards

Electromagnetic Compatibility (EMC): Compliant with IEC/EN61000 series standards

Protection level: To be installed inside the control cabinet (IP20)

[Product Features]

✅  Support Triple Modular Redundancy (TMR) architecture

✅  Realize high security level (SIL3) functional safety certification

✅  Support channel level diagnostic function, real-time monitoring of input status and health status

✅  Compatible with Tricon V9 system or early V8 control system

✅  Provide online hot swap function to ensure uninterrupted operation

✅  Channel isolation to prevent on-site interference from affecting the overall operation of the system

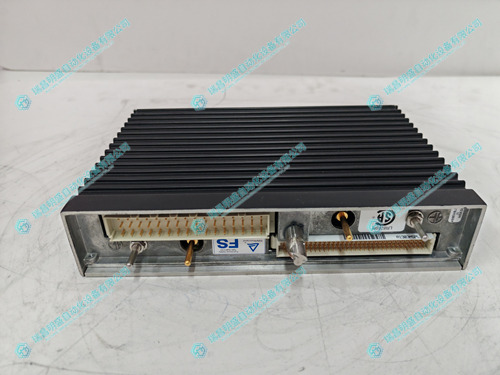

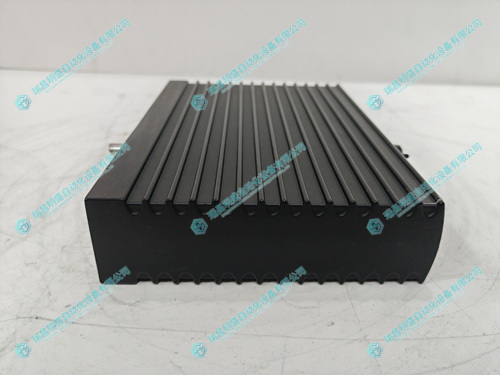

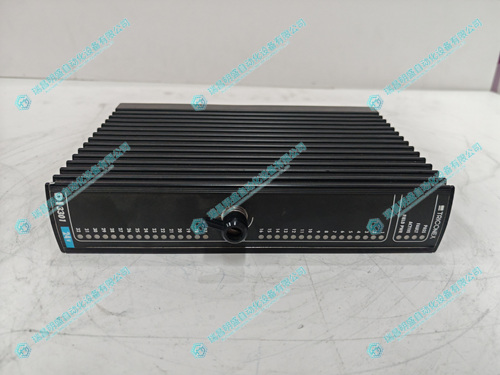

2.产      品      展      示
