193X257AAG01电源板

GE   193X257AAG01电源板

1.产 品 资 料 介 绍：

中文资料：

GE 193X257AAG01 电源板 是 GE（General Electric）193X 系列工业控制系统中的一款关键电源模块。该板卡通常作为直流调速器或工业控制系统的电力供应核心，为控制系统中的多个子模块提供稳定、可靠的电压与电流支持。

一、产品基本信息：

• 产品型号：193X257AAG01

• 类型：电源板（Power Supply Board）

• 制造商：GE Industrial Systems

• 系列归属：GE 193X 模块化控制平台

• 主要作用：提供多通道稳定电源，保障控制系统正常工作

二、功能特点：

1. 多路电源输出
   提供不同电压等级的直流电源输出（如 ±15V、5V 等），为信号处理、放大器、逻辑控制等模块供电。

2. 过流与过压保护
   内置保护机制，防止系统因过载、短路等问题损坏，提高整机系统的运行安全性与寿命。

3. 高稳定性与低噪声
   输出电压纹波小，稳定性高，适合用于精密信号处理电路，保障系统精度和可靠性。

4. 兼容性好
   设计用于 GE 的调速控制系统中，特别是与 GE 的 193X 驱动系列（如 DC300 系统）配套使用。

三、典型应用领域：

1. 直流调速器系统（DC Drive Systems）
   作为调速器的核心供电模块，驱动控制板、信号处理板和反馈电路。

2. 发电厂控制系统
   用于汽轮机、燃气轮机的控制设备中，为控制与信号模块供电。

3. 冶金与钢铁行业自动化控制
   为轧机、电机控制与速度调节系统提供稳定电源。

4. 化工与造纸行业
   用于大型连续性工业流程控制系统，提供连续、稳定电源支持。

5. 铁路牵引系统
   用于机车或牵引系统中，保障各种控制单元的电力供应。

英文资料：

The GE 193X257AAG01 power board is a critical power module in the GE (General Electric) 193X series industrial control systems. This board is typically used as the power supply core for DC speed controllers or industrial control systems, providing stable and reliable voltage and current support for multiple submodules in the control system.

1、 Product basic information:

Product model: 193X257AAG01

Type: Power Supply Board

manufacturer: GE Industrial Systems

Series affiliation: GE 193X modular control platform

Main function: Provide multi-channel stable power supply to ensure the normal operation of the control system

2、 Functional features:

Multi channel power output

Provide DC power outputs of different voltage levels (such as ± 15V, 5V, etc.) to power modules such as signal processing, amplifiers, and logic control.

Overcurrent and Overvoltage Protection

Built in protection mechanism to prevent system damage due to overload, short circuit and other issues, improving the operational safety and lifespan of the entire system.

High stability and low noise

The output voltage has small ripple and high stability, making it suitable for use in precision signal processing circuits to ensure system accuracy and reliability.

Good compatibility

Designed for use in GE's speed control system, especially in conjunction with GE's 193X drive series (such as DC300 system).

3、 Typical application areas:

DC Drive Systems

As the core power supply module of the speed controller, it drives the control board, signal processing board, and feedback circuit.

Power plant control system

Used in control equipment for steam turbines and gas turbines to supply power to control and signal modules.

Automation Control in Metallurgy and Steel Industry

Provide stable power supply for the rolling mill, motor control, and speed regulation system.

Chemical and Paper Industry

Used for large-scale continuous industrial process control systems, providing continuous and stable power support.

Railway traction system

Used in locomotives or traction systems to ensure power supply for various control units.

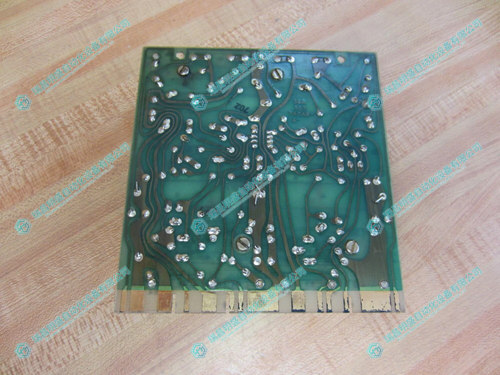

2.产      品      展      示
