GE 193X279AAG03继电器模块
1.产 品 资 料 介 绍：
中文资料：
GE 193X279AAG03 继电器模块 是通用电气（GE）193X系列中的一款多通道输出控制模块，主要功能是将逻辑控制信号转换为可以驱动工业负载的继电器控制信号。它常用于工业自动化、电力控制系统中，作为控制设备与执行元件之间的桥梁，实现高可靠性的信号输出与负载控制。
一、基本信息
| 项目 | 内容 |
|---|---|
| 产品型号 | 193X279AAG03 |
| 产品名称 | 继电器模块（Relay Module） |
| 制造厂商 | GE（General Electric） |
| 所属系列 | 193X工业控制系统模块 |
| 功能类型 | 控制输出、信号转换、负载驱动 |
| 安装方式 | 插入式安装于GE控制系统机架 |
二、功能与作用
| 功能项 | 描述 |
|---|---|
| 逻辑输出 | 接收控制器（如PLC或主控板）的信号，驱动继电器进行负载开关控制 |
| 信号转换 | 将低电压控制信号转换为高功率电气负载的开关信号 |
| 电气隔离 | 控制电路与执行负载完全隔离，提高系统稳定性和安全性 |
| 多通道控制 | 模块通常具备多个继电器输出，可同时控制多个外部设备 |
| 状态反馈 | 带有LED指示灯或信号端口，实时反映继电器动作状态 |
三、技术参数（典型）
| 参数类别 | 参数说明 |
|---|---|
| 控制电压 | 5V / 24V DC（视系统要求而定） |
| 输出电压 | 支持高达250V AC或30V DC（具体取决于继电器规格） |
| 通道数 | 通常为4~8通道（请参阅模块标签或技术文档） |
| 继电器类型 | 电磁继电器（可能为DPDT或SPDT配置） |
| 开关容量 | 每通道最大5A@250VAC 或 5A@30VDC |
| 响应时间 | 约10毫秒以内 |
| 工作温度 | -20°C 至 +60°C |
| 绝缘电压 | 控制与负载端 ≥1500V 电气隔离 |
英文资料：
The GE 193X279AAG03 relay module is a multi-channel output control module in the General Electric (GE) 193X series. Its main function is to convert logic control signals into relay control signals that can drive industrial loads. It is commonly used in industrial automation and power control systems as a bridge between control equipment and execution components, achieving high reliability signal output and load control.
1、 Basic Information
Project Content
Product model 193X279AAG03
Product Name: Relay Module
Manufacturer GE (General Electric)
Series 193X Industrial Control System Module
Function type control output, signal conversion, load drive
Installation method: Plug in installation on GE control system rack
2、 Function and Function
Function item description
Logic output receives signals from controllers (such as PLCs or main control boards) to drive relays for load switch control
Signal conversion converts low voltage control signals into switch signals for high-power electrical loads
The electrical isolation control circuit is completely isolated from the executing load, improving system stability and safety
Multi channel control modules typically have multiple relay outputs and can simultaneously control multiple external devices
Status feedback with LED indicator lights or signal ports, real-time reflection of relay action status
3、 Technical parameters (typical)
Parameter Category Parameter Description
Control voltage 5V/24V DC (depending on system requirements)
Output voltage supports up to 250V AC or 30V DC (depending on relay specifications)
The number of channels is usually 4-8 channels (please refer to the module label or technical documentation)
Relay type electromagnetic relay (may be configured with DPDT or SPDT)
Maximum switch capacity per channel 5A@250VAC Or 5A@30VDC
Response time within approximately 10 milliseconds
Working temperature -20 ° C to+60 ° C
Insulation voltage control and load terminal ≥ 1500V electrical isolation

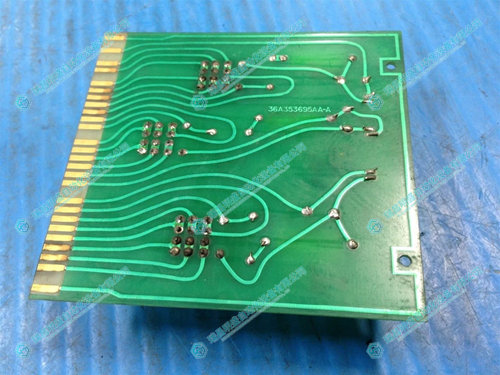

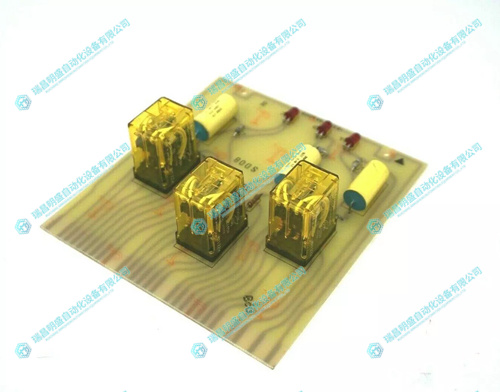

2.产 品 展 示
