GE 193X476AAG01变频卡
1.产 品 资 料 介 绍：
中文资料：
产品型号：193X476AAG01
产品名称：变频卡（Frequency Converter Card / Inverter Board）
制造商：General Electric (GE)
产品系列：193X 系列工业控制模块
产品功能
193X476AAG01 是 GE 193X 控制系统中的一款变频控制模块，主要作用是在电机驱动或调速系统中进行频率转换和控制调节。核心功能包括：
将固定频率 AC 电源转换为可调频率输出
控制电动机的运行速度、加减速曲线
提供过压、过流保护逻辑
与其它逻辑板卡（如相位逻辑板、调节器板）协同工作，实现闭环控制
关键技术参数（典型值）
| 参数项目 | 技术指标 |
|---|---|
| 电源要求 | ±15V DC 或由系统统一供电 |
| 控制方式 | 模拟/数字输入控制频率输出 |
| 输出频率范围 | 一般为 0～400Hz（具体依型号） |
| 信号接口 | 与 GE 193X 控制系统插槽兼容 |
| 安装方式 | 插卡式，适配 GE 控制机架 |
| 工作环境 | 温度 0～60°C，工业防护等级 |
典型应用领域
工业变频器系统（调速、恒压恒频控制）
电机驱动系统中的频率调节单元
发电机组负载管理与频率调节
大型机组或风机、泵类负载的智能调速系统
英文资料：
Product model: 193X476AAG01
Product Name: Frequency Converter Card/Inverter Board
manufacturer: General Electric (GE)
Product series: 193X series industrial control module
PRODUCT FUNCTION
193X476AAG01 is a frequency conversion control module in the GE 193X control system, mainly used for frequency conversion and control regulation in motor drive or speed control systems. The core functions include:
Convert fixed frequency AC power supply to adjustable frequency output
Control the operating speed and acceleration/deceleration curve of the electric motor
Provide overvoltage and overcurrent protection logic
Collaborate with other logic boards (such as phase logic board, regulator board) to achieve closed-loop control
Key technical parameters (typical values)
Parameter project technical indicators
Power requirement: ± 15V DC or uniformly powered by the system
Control mode: analog/digital input, control frequency output
The output frequency range is generally 0-400Hz (depending on the model)
Signal interface compatible with GE 193X control system slot
Installation method: plug-in card, compatible with GE control rack
Working environment temperature 0-60 ° C, industrial protection level
Typical application areas
Industrial frequency converter system (speed regulation, constant voltage and frequency control)
Frequency regulation unit in motor drive system
Load management and frequency regulation of generator sets
Intelligent speed regulation system for large units or loads such as fans and pumps

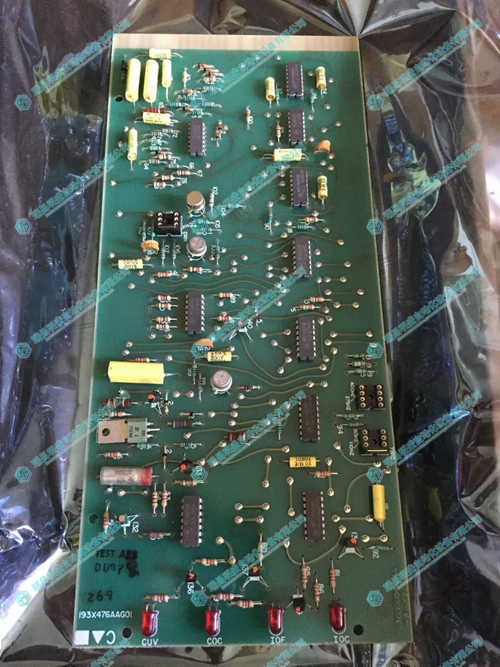

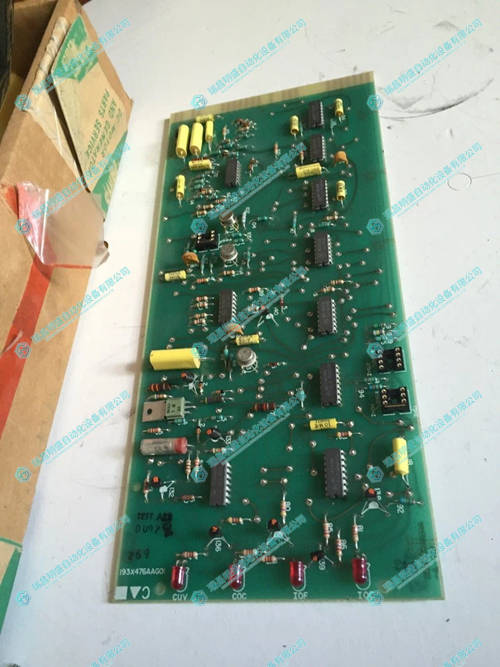

2.产 品 展 示
