IC693MDL753K 输出模块

GE IC693MDL753K 输出模块

1.产 品 资 料 介 绍：

中文资料：

• 产品型号：IC693MDL753K

• 模块类型：离散输出模块（数字输出）

• 适用系统：GE Fanuc Series 90-30 PLC

技术规格

• 输出点数：32 点

• 输出类型：12/24V DC 正逻辑（源型）

• 点组结构：分为 4 个隔离组，每组 8 点

• 输出电压范围：10.2～28.8V DC

• 每点最大电流：0.5A

• 每组最大电流：4A

• 共用端最大电流：3A

• 漏电流：典型为 0.1 mA

• 浪涌电流：最大 10A，持续时间 < 10 ms

• 响应时间：典型值小于 0.5 毫秒

• 隔离电压：现场侧与逻辑侧之间为 1500V，组与组之间为 250V

安装与使用

• 安装位置：适用于 90-30 系列机架任意 I/O 插槽

• 接线方式：采用可拆卸式接线端子，便于维护

• 状态指示：每个输出点配有 LED 指示灯显示输出状态

• 内部保护：具备浪涌保护功能，防止瞬间电流冲击损坏

应用场景

• 工业自动化生产线

• 开关量输出控制，如电磁阀、继电器、指示灯

• 与其他模块组合使用，构建中小型控制系统

• 适用于冶金、电力、机械、包装等多个行业

英文资料：

Product model: IC693MDL753K

Module type: Discrete output module (digital output)

Applicable system: GE Fanuc Series 90-30 PLC

technical specifications

Output points: 32 points

Output type: 12/24V DC positive logic (source type)

Point group structure: divided into 4 isolation groups, each with 8 points

Output voltage range: 10.2-28.8V DC

Maximum current per point: 0.5A

Maximum current per group: 4A

Maximum current of shared terminal: 3A

Leakage current: typically 0.1 mA

Surge current: maximum 10A, duration<10 ms

Response time: Typically less than 0.5 milliseconds

Isolation voltage: 1500V between the field side and logic side, 250V between groups

Installment and use

Installation position: Suitable for any I/O slot of the 90-30 series rack

Wiring method: Adopting detachable terminal blocks for easy maintenance

Status indication: Each output point is equipped with LED indicator lights to display the output status

Internal protection: equipped with surge protection function to prevent damage caused by instantaneous current surge

Application scenarios

Industrial automation production line

Switching output control, such as solenoid valves, relays, indicator lights

Combine with other modules to build small and medium-sized control systems

Suitable for multiple industries such as metallurgy, power, machinery, packaging, etc

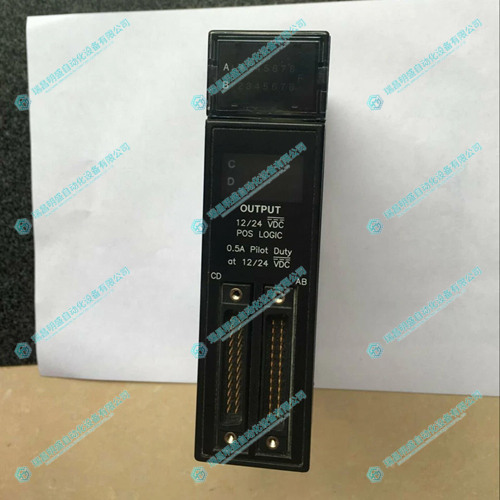

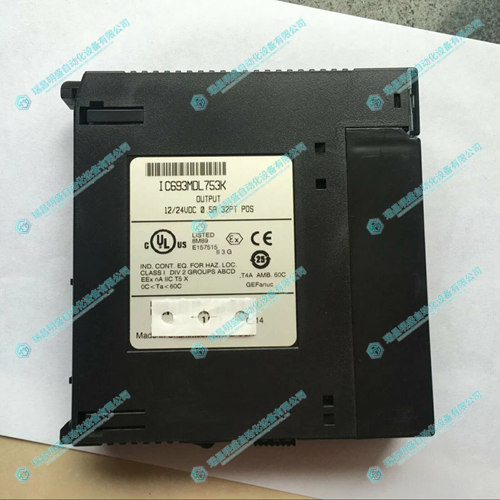

2.产      品      展      示
