GE IC693MDL753K 输出模块
1.产 品 资 料 介 绍：
中文资料：
基本信息
型号：IC693MDL753K
品牌：GE Fanuc
系列：Series 90-30 PLC
模块类型：数字量输出模块（DC 输出）
通道数量：32 点
输出类型：直流源型输出（sourcing type）
技术参数
输出点数：32 点
输出电压范围：5VDC 至 30VDC（标称 24VDC）
输出类型：源型（Sourcing，PNP）——模块提供电流给负载
最大输出电流：每点 0.5A，整模块最大 4A
浪涌电流能力：每点支持 1A（持续 10ms）
响应时间：开通和断开典型为 <0.5ms
输出保护：短路保护、过载保护、过温保护
通道分组：4 组，每组 8 点，单独公共端（COM）
状态指示：每点配有 LED 指示灯
电气隔离：每组 8 点之间相互隔离（1500V）
接线说明（文字描述）
模块提供正电压（+V）给负载，负载的另一端接公共端（COM）。
每 8 点为一组，每组一个独立公共端，可与系统负极或控制接地相连。
推荐使用外部 24VDC 电源，连接到模块的 V+ 输入端。
连接时应注意负载的电流不能超过单点或整组最大电流限制。
使用注意事项
源型输出模块（PNP）：模块提供电源给负载，不适用于需要 NPN（Sink）输入的设备。
注意每点电流限制为 0.5A，避免过流烧毁。
整体最大输出电流 4A，合理分配负载。
若发生短路，模块内部保护会切断输出，但建议在外部添加保险丝。
接线时区分每组公共端（COM），避免误接或跨组短路。
英文资料：
Basic information
Model: IC693MDL753K
Brand: GE Fanuc
Series: Series 90-30 PLC
Module type: Digital output module (DC output)
Number of channels: 32 points
Output type: DC source output (sourcing type)
Technical Parameter
Output points: 32 points
Output voltage range: 5VDC to 30VDC (nominal 24VDC)
Output type: Sourcing (PNP) - the module provides current to the load
Maximum output current: 0.5A per point, maximum 4A for the entire module
Surge current capability: Supports 1A per point (continuous for 10ms)
Response time: typically<0.5ms for activation and disconnection
Output protection: Short circuit protection, overload protection, over temperature protection
Channel grouping: 4 groups, 8 points per group, separate common end (COM)
Status indication: Each point is equipped with LED indicator lights
Electrical isolation: Each group of 8 points is isolated from each other (1500V)
Wiring instructions (textual description)
The module provides a positive voltage (+V) to the load, with the other end of the load connected to the common terminal (COM).
Every 8 o'clock is a group, each with an independent common terminal that can be connected to the negative terminal of the system or the control ground.
Recommend using an external 24VDC power supply connected to the V+input of the module.
When connecting, it should be noted that the current of the load cannot exceed the maximum current limit of a single point or the entire group.
Precautions for use
Source Output Module (PNP): The module provides power to the load and is not suitable for devices that require NPN (Sink) input.
Note that the current limit at each point is 0.5A to avoid overcurrent burnout.
The overall maximum output current is 4A, and the load is distributed reasonably.
If a short circuit occurs, the internal protection of the module will cut off the output, but it is recommended to add a fuse externally.
The wiring time is divided into groups of common terminals (COM) to avoid misconnection or cross group short circuits.

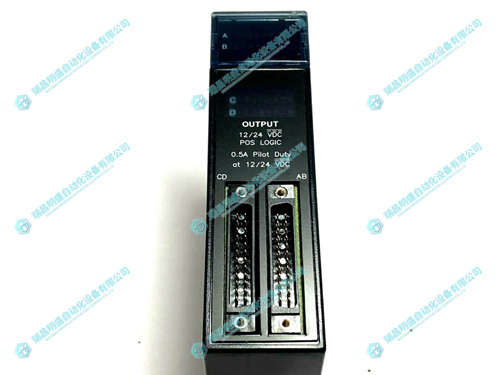

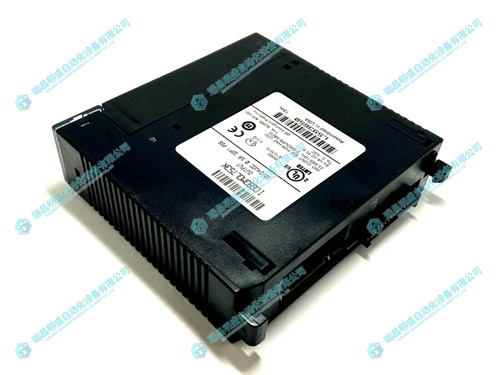

2.产 品 展 示
