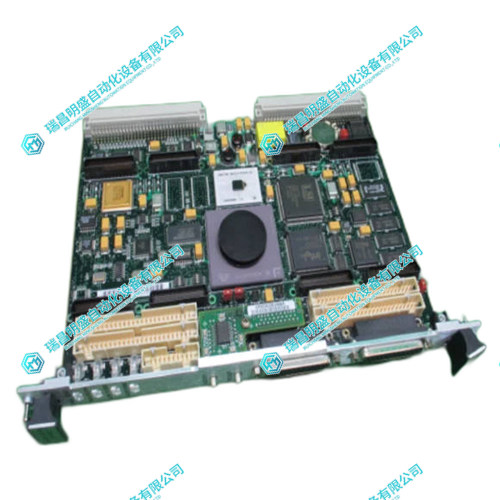

Motorola VME162PA-344SE 01-W3528F60A电路板

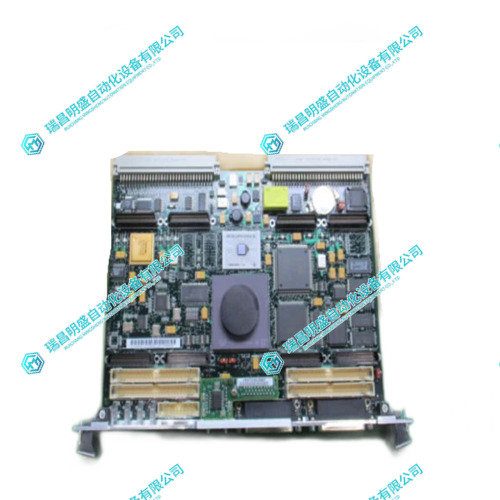

Motorola VME162PA-344SE 01-W3528F60A电路板

1.产 品 资 料 介 绍：

一、核心技术特性解析

Motorola VME162PA-344SE 01-W3528F60A电路板 英文资料：

The Motorola VME162PA-344SE (model number 01-W3528F60A) is an industrial grade embedded processor board based on the VMEbus architecture. It is a high-performance derivative of the Motorola VME162 series, with flexible processor configuration, rich I/O interfaces, and industrial grade reliability as its core advantages. It is designed for critical scenarios such as industrial control, power, transportation, and national defense that require long-term stable operation.

1、 Analysis of Core Technical Characteristics

Characteristic category, specific specifications and capabilities, technical value

The processor configuration supports Motorola 68040/68030 series industrial grade CPUs (optional), and the 68040 model integrates a floating point unit (FPU). The 68040 version has dual capabilities of 32-bit integers and high-precision floating point operations, and can handle complex control algorithms such as PID regulation and multivariable logic interlocking;

68030 version: Balancing performance and cost, suitable for low to medium computing power demand scenarios, with stronger compatibility

The bus and scalability are fully compatible with the VMEbus standard (32-bit data/address bus, supporting VMEbus master/slave mode, interrupt priority arbitration), allowing seamless integration into VME multi board systems. It can flexibly interconnect with I/O expansion boards, storage modules, and communication modules (such as Ethernet boards and serial port expansion boards), making it easy to build distributed control systems and adapt to applications of different scales

I/O interface - serial port: multi-channel RS-232/422 (supports hardware flow control, compatible with industrial grade device communication)

-Parallel port: 1-2 Centronics compatible parallel interfaces (can connect to printers and data acquisition modules)

-Timer: Programmable 16 bit timer/counter (used for task scheduling, pulse signal generation)

-Local Interrupt: Supports hardware interrupt triggering (such as sensor alarms, device fault signals). The interface covers core peripheral types in industrial scenarios and can directly connect sensors, actuators, and upper computers without the need for additional adapter modules, simplifying system wiring and integration difficulties

Storage Expansion - Program Storage: Supports EPROM/Flash (up to 2MB, can solidify operating systems and applications)

-Data storage: DRAM (up to 16MB, meeting real-time data caching requirements)

-High speed cache: The 68040 model has a built-in 4KB instruction cache and 4KB data cache multi-level storage architecture to achieve "program solidification+high-speed data access". The cache design reduces CPU waiting time and improves computational efficiency; Flash storage supports local firmware upgrades, reducing maintenance costs

Software compatibility is compatible with mainstream real-time operating systems (RTOS) such as VxWorks, OS-9, UNIX, etc. It supports multi task priority scheduling and low latency interrupt response to meet the "millisecond level real-time" requirements of industrial control, and can run complex control programs (such as production line logic control, equipment status monitoring)
