ATLAS COPCO TC-52P-N控制器

Atlas Copco TC-52P-N控制器

1.产 品 资 料 介 绍：

一、产品概述

ATLAS COPCO TC-52P-N 是一款紧凑型伺服控制器，属于 Atlas Copco TC5000 控制平台，主要用于控制多轴电动拧紧工具。该控制器具有高度的可扩展性和精密的过程控制能力，专为高质量、可追溯性要求高的自动化装配线设计。

二、技术特点与功能

• 型号：TC-52P-N

• 控制方式：闭环扭矩控制 + 角度控制

• 支持工具类型：Atlas Copco Tensor 系列伺服电动工具

• 支持通道数：1-2 通道（可扩展）

• 通信协议：支持 Ethernet/IP、PROFIBUS、CANopen、Modbus TCP 等

• 功能模块：

  • 多段拧紧工艺设定

  • 工艺程序快速切换

  • 多轴同步或独立控制

  • 过程数据采集与存储

  • 错误检测与报警系统

• 安装方式：导轨或机柜安装，适合工业环境

三、典型应用场景

1. 汽车制造

   • 发动机、底盘、车门、车身结构件等多点拧紧控制

   • 满足大批量连续作业和质量追溯要求

2. 机械装配

   • 精密机械设备外壳或连接件的高扭矩紧固

3. 家电与电子行业

   • 小扭矩场景下高节拍自动化装配任务

4. 航空航天

   • 对安全性、一致性要求极高的高端紧固任务

英文资料：

1、 Product Overview

ATLAS COPCO TC-52P-N is a compact servo controller belonging to the Atlas Copco TC5000 control platform, mainly used for controlling multi axis electric tightening tools. This controller has high scalability and precise process control capabilities, designed specifically for automated assembly lines with high quality and traceability requirements.

2、 Technical features and functions

Model: TC-52P-N

Control mode: closed-loop torque control+angle control

Supported tool type: Atlas Copco Tensor series servo electric tools

Number of supported channels: 1-2 channels (expandable)

Communication protocol: Supports Ethernet/IP, PROFIBUS, CANopen, Modbus TCP, etc

Functional modules:

Multi stage tightening process setting

Quick switching of process programs

Multi axis synchronous or independent control

Process data collection and storage

Error detection and alarm system

Installation method: rail or cabinet installation, suitable for industrial environments

3、 Typical application scenarios

automobile making

Multi point tightening control of engine, chassis, doors, body structural components, etc

Meet the requirements of large-scale continuous operations and quality traceability

Mechanical Assembly

High torque fastening of precision mechanical equipment casings or connectors

Home appliances and electronics industry

High cycle automated assembly tasks in low torque scenarios

EADS

High end fastening tasks with extremely high requirements for safety and consistency

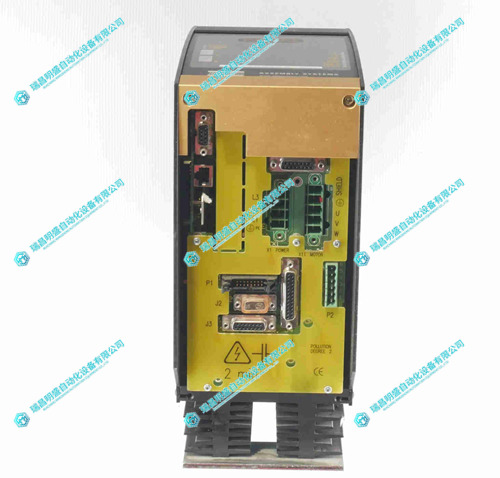

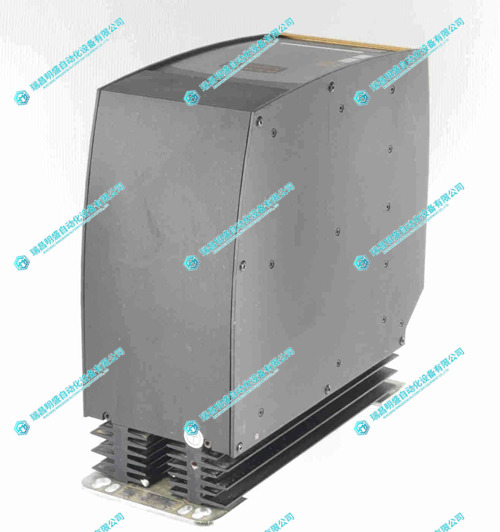

2.产      品      展      示
