5SHY4045L0006 3BHB030310R0001可控硅模块

ABB 5SHY4045L0006 3BHB030310R0001可控硅模块

1.产 品 资 料 介 绍：

一、产品概述

5SHY4045L0006（ABB订货号：3BHB030310R0001）是一款高性能 可控硅模块（Thyristor Module），属于 ABB 高功率半导体器件系列，主要用于工业驱动、电力控制系统及高压变流装置中。该模块内置晶闸管（SCR）和必要的保护电路，适合高压大电流环境下的整流与逆变控制应用。

二、技术参数（典型值）

三、应用场景

1. 高压变频器（HV VFDs）

• 应用于大型电机控制系统，如矿山、水泥厂、石化行业中的中压变频器；

• 在输入整流阶段或输出逆变部分起到整流、换流作用。

2. 电力传动系统

• 各类工业传动系统中用于控制大功率同步/异步电机；

• 在冶金轧机、电厂锅炉送风机等场合大量使用。

3. 高压直流输电系统（HVDC）

• 在HVDC换流站中，晶闸管模块用于构建换流阀，实现高压电能的整流与逆变；

• 适用于稳定性要求极高的电网应用。

4. 有源滤波装置（FACTS）

• 作为电网动态无功补偿和谐波控制的重要部件；

• 与ABB控制系统集成，实现快速响应。

5. 大功率整流装置

• 应用于炼钢电炉、感应加热炉等工业电源；

• 实现电能从交流到直流的稳定转换，具备高电流耐受能力。

英文资料：

1、 Product Overview

5SHY4045L0006 (ABB order number: 3BHB030310R0001) is a high-performance thyristor module, belonging to ABB's high-power semiconductor device series, mainly used in industrial drives, power control systems, and high-voltage converters. This module has built-in thyristors (SCR) and necessary protection circuits, suitable for rectification and inverter control applications in high voltage and high current environments.

2、 Technical parameters (typical values)

Project parameter values

Model 5SHY4045L0006

Order number 3BHB030310R0001

Type: thyristor module/thyristor

Maximum forward/reverse voltage (Vdrm) 4500V

On state average current (ITAV) 2600A

Control mode phase control/trigger control

Application packaging: high-power module packaging with bolted connections

Cooling method: Water cooling or forced air cooling

Manufacturer ABB Switzerland Ltd

3、 Application scenarios

1. High voltage frequency converters (HV VFDs)

Applied to large motor control systems, such as medium voltage frequency converters in mines, cement plants, and petrochemical industries;

Plays the role of rectification and commutation in the input rectification stage or output inverter section.

2. Electric power transmission system

Used for controlling high-power synchronous/asynchronous motors in various industrial transmission systems;

Widely used in metallurgical rolling mills, power plant boiler blowers, and other occasions.

3. High Voltage Direct Current Transmission System (HVDC)

In HVDC converter stations, thyristor modules are used to construct converter valves to achieve rectification and inversion of high-voltage electrical energy;

Suitable for power grid applications with extremely high stability requirements.

4. Active filtering devices (FACTS)

As an important component of dynamic reactive power compensation and harmonic control in the power grid;

Integrate with ABB control system to achieve rapid response.

5. High power rectifier device

Applied to industrial power sources such as steelmaking electric furnaces and induction heating furnaces;

Realize stable conversion of electrical energy from AC to DC, with high current tolerance capability.

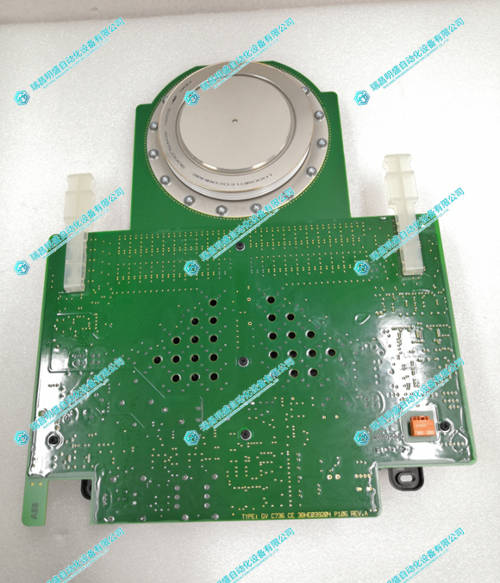

2.产      品      展      示
