Gasonics C12872变压器
1.产 品 资 料 介 绍：
产品名称
Gasonics C12872 变压器
（英文：Transformer）
一、产品概述
Gasonics C12872 变压器是一款专为 Gasonics 等离子设备设计的电源变压器，主要功能是将输入电源电压转换为设备内部各控制模块和执行单元所需的稳定电压，保障设备正常运行。该变压器通常安装于电源单元，负责提供可靠的电气隔离和多路输出。
二、技术参数
输入电压：典型为 208VAC、220VAC 或 240VAC（根据具体设备和地区标准）
输出电压：多路输出，常见包括 24VAC、12VAC、±15VAC 等，具体电压等级根据设备需求配置
功率容量：一般几十至数百 VA，满足多模块供电需求
频率：50Hz / 60Hz 兼容
绝缘等级：工业级绝缘，符合电气安全标准
安装方式：面板或底板安装，带螺栓固定孔
结构特征：封闭铁芯设计，具有良好的电磁屏蔽效果
工作环境：适应半导体制造环境的高温、高湿及电磁干扰条件
三、应用场景
为 Gasonics 等离子清洗与灰化设备的控制模块、驱动器、传感器和执行器等提供稳定的电压和电流
电气隔离，防止电网波动影响设备内部信号及控制精度
保障设备中温控模块、阀控模块、显示模块等正常工作
支持设备多路电源需求，实现系统级电源分配
英文资料：
product name
Gasonics C12872 Transformer
(English: Transformer)
1、 Product Overview
The Gasonics C12872 transformer is a power transformer designed specifically for Gasonics plasma equipment. Its main function is to convert the input power voltage into a stable voltage required by various control modules and execution units inside the equipment, ensuring the normal operation of the equipment. This transformer is usually installed in the power unit and is responsible for providing reliable electrical isolation and multiple outputs.
2、 Technical parameters
Input voltage: Typically 208VAC, 220VAC, or 240VAC (depending on specific equipment and regional standards)
Output voltage: Multi channel output, commonly including 24VAC, 12VAC, ± 15VAC, etc. The specific voltage level is configured according to the equipment requirements
Power capacity: typically tens to hundreds of VA, meeting the power supply needs of multiple modules
Frequency: 50Hz/60Hz compatible
Insulation grade: Industrial grade insulation, in compliance with electrical safety standards
Installation method: panel or base plate installation, with bolt fixing holes
Structural features: Closed iron core design, with good electromagnetic shielding effect
Work environment: Suitable for high temperature, high humidity, and electromagnetic interference conditions in semiconductor manufacturing environment
3、 Application scenarios
Provide stable voltage and current for control modules, drivers, sensors, and actuators of Gasonics plasma cleaning and ashing equipment
Electrical isolation to prevent fluctuations in the power grid from affecting internal signals and control accuracy of equipment
Ensure the normal operation of temperature control module, valve control module, display module, etc. in the equipment
Support multiple power supply requirements for devices and achieve system level power distribution

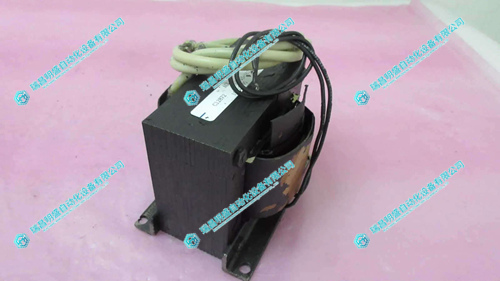

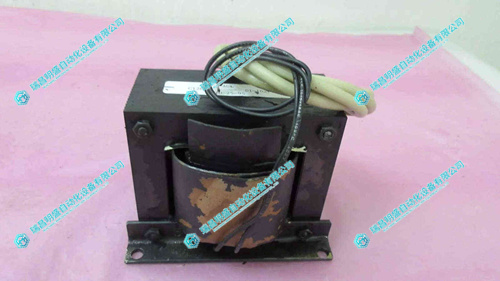

2.产 品 展 示
