Gasonics 90-1061印刷电路板
1.产 品 资 料 介 绍：
产品概述
Gasonics 90-1061 是一款用于等离子体清洗设备的专用印刷电路板，属于系统内部的关键控制或接口模块。该板卡主要用于控制系统信号传输、设备内部子模块间的数据交换，或用于等离子源、电源模块、真空系统等子系统的管理。
技术参数（典型配置）
类型：多层印刷电路板
功能：信号处理、电源控制、设备状态通信
安装方式：插槽式或螺丝固定式安装在主控制机架中
适配设备：主要用于 Gasonics Aura 系列等离子清洗设备
信号接口：可能包括模拟输入、数字I/O、通信接口（如RS-232或TTL）
尺寸规格：依据设备定制，非通用标准尺寸
应用场景
Gasonics Aura 设备内部控制
用于协调各子模块的运行，包括射频发生器、真空泵、电磁阀等关键部件。信号接口与设备互联
提供设备与外部系统的电气连接与协议转换功能，确保系统运行稳定可靠。替换/维修用途
作为原厂维护零部件，可用于设备维护、更换或故障排查过程中，恢复设备正常运行。
英文资料：
product overview
Gasonics 90-1061 is a specialized printed circuit board for plasma cleaning equipment, which is a critical control or interface module within the system. This board is mainly used for controlling system signal transmission, data exchange between internal submodules of equipment, or for managing subsystems such as plasma sources, power modules, vacuum systems, etc.
Technical parameters (typical configuration)
Type: Multilayer Printed Circuit Board
Function: Signal processing, power control, equipment status communication
Installation method: slot or screw fixed installation in the main control rack
Adaptation equipment: mainly used for Gasonics Aura series plasma cleaning equipment
Signal interface: may include analog input, digital I/O, communication interface (such as RS-232 or TTL)
Size specifications: customized according to equipment, non universal standard size
Application scenarios
Internal Control of Gasonics Aura Equipment
Used to coordinate the operation of various sub modules, including key components such as RF generators, vacuum pumps, solenoid valves, etc.
Signal interface and device interconnection
Provide electrical connections and protocol conversion functions between devices and external systems to ensure stable and reliable system operation.
Replacement/repair purpose
As an original maintenance component, it can be used for equipment maintenance, replacement, or troubleshooting to restore normal equipment operation.

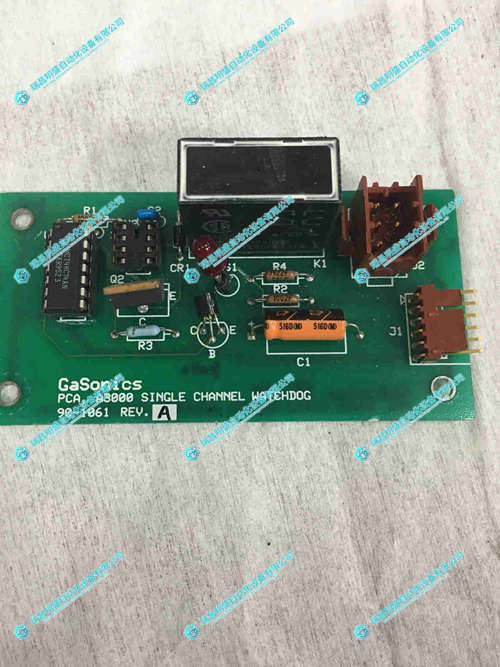

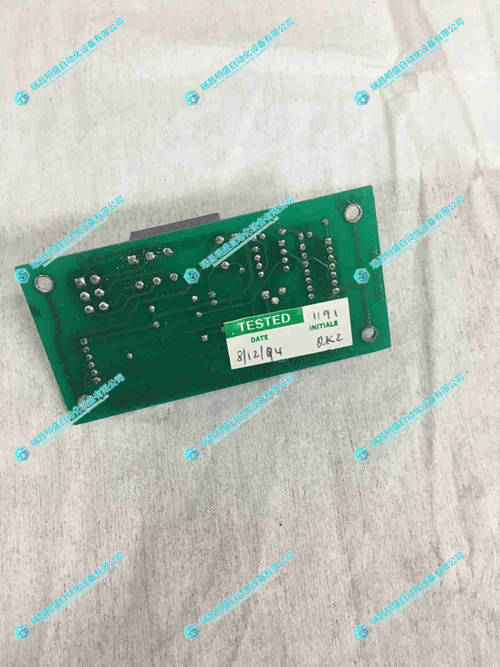

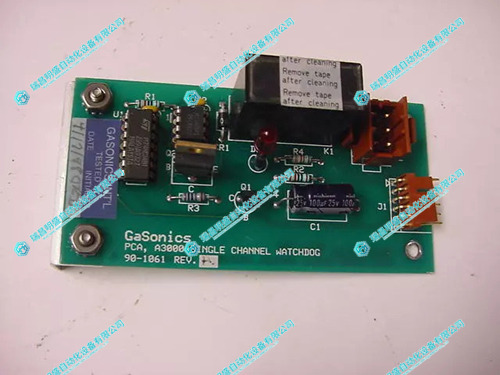

2.产 品 展 示
