MAGNETEK GPD515C-A033变速交流驱动器

 Magnetek  GPD515C-A033变速交流驱动器

1.产 品 资 料 介 绍：

MAGNETEK GPD515C-A033 变速交流驱动器
产品应用领域

一、产品规格

• 型号：GPD515C-A033

• 额定功率：10 HP（约7.5 kW）

• 输入电压：三相 200–220 V AC，50/60 Hz

• 输出电压：三相 0–230 V AC

• 输出频率范围：0–400 Hz

• 额定电流：33 A

• 控制方式：支持 V/F 控制、无传感器矢量控制和磁链矢量控制（需编码器和专用卡）

• 过载能力：150% 额定电流，持续 60 秒

二、主要应用领域

1. 起重机与吊装设备
   实现桥式、门式、塔式起重机电机的精确速度和扭矩控制，提升安全性和工作效率。

2. 自动化生产线
   调节自动化装配线和制造系统设备速度，实现生产过程的协调与优化。

3. 重型机械设备
   控制矿山、冶金等行业的重载机械，满足高负载和高精度要求。

4. 电梯与升降平台
   提供平稳的加减速控制，提升乘坐舒适度和节能效果。

5. 风机与泵类控制
   适用于暖通空调系统、水处理及供水设施，通过变频调速实现节能运行和流量控制。

英文资料：

MAGNETEK GPD515C-A033 Variable Speed AC Drive

Product application areas

1、 Product specifications

Model: GPD515C-A033

Rated power: 10 HP (approximately 7.5 kW)

Input voltage: Three phase 200-220 V AC, 50/60 Hz

Output voltage: Three phase 0-230 V AC

Output frequency range: 0-400 Hz

Rated current: 33 A

Control mode: Supports V/F control, sensorless vector control, and magnetic flux vector control (requires encoder and dedicated card)

Overload capacity: 150% rated current, lasting for 60 seconds

2、 Main application areas

Cranes and lifting equipment

Realize precise speed and torque control of motors for bridge, gantry, and tower cranes, improving safety and work efficiency.

Automatic production line

Adjust the speed of automated assembly lines and manufacturing system equipment to achieve coordination and optimization of the production process.

Heavy machinery equipment

Control heavy-duty machinery in industries such as mining and metallurgy to meet high load and precision requirements.

Elevators and lifting platforms

Provide smooth acceleration and deceleration control to enhance ride comfort and energy efficiency.

Fan and pump control

Suitable for HVAC systems, water treatment, and water supply facilities, achieving energy-saving operation and flow control through variable frequency speed regulation.

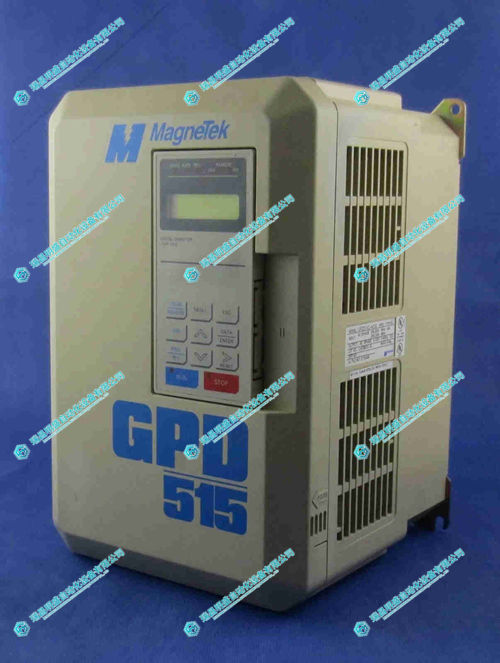

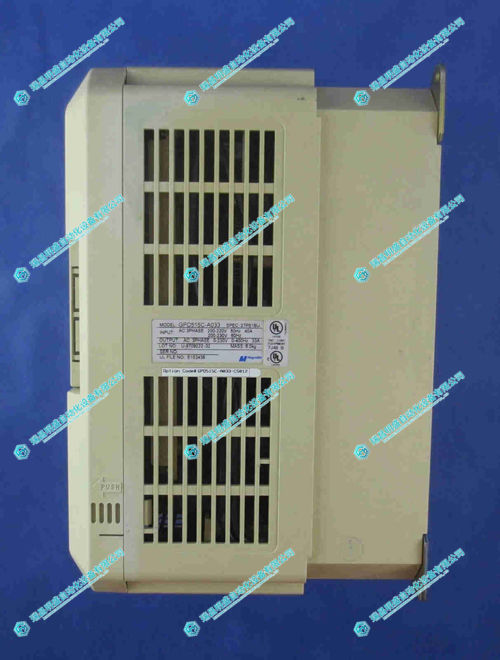

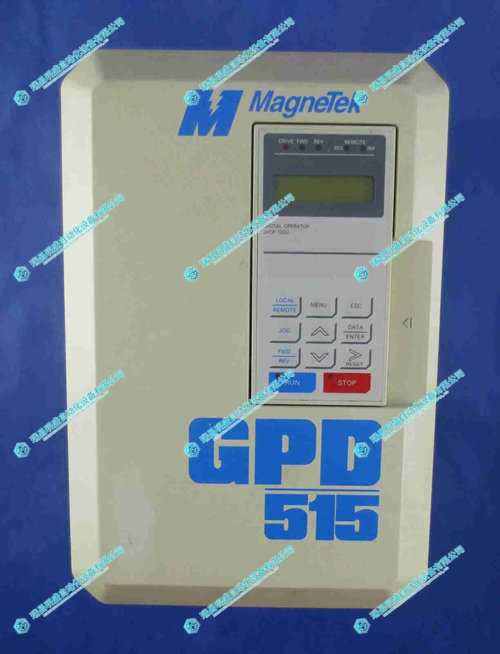

2.产      品      展      示
