Magnetek GPD505V-B034 逆变器
1.产 品 资 料 介 绍：
- 输入电压：三相 380~460 VAC，50/60 Hz
- 输出电压：0~460 VAC，变频输出
- 功率等级：34 HP（约 25.3 kW）
- 输出频率范围：0.1~400 Hz
- 控制方式：V/f（电压 / 频率）控制或矢量控制
- 过载能力：150% 额定电流，可持续 60 秒
- 冷却方式：强制风冷
- 通讯接口：支持扩展卡（如 RS-485、DeviceNet 等）
- 先进的矢量控制技术
- 宽广的频率输出范围
- 丰富的保护功能
- 易于设置与调试
- 灵活的 I/O 配置
- 内置节能运行模式
- 模块化设计，便于维护
英文资料：
1、 Product Overview
Magnetek GPD505V-B034 belongs to the GPD 505V series and is a three-phase AC variable frequency inverter. It is suitable for industrial drive scenarios with a voltage level of 460V and an output power of 34 HP (horsepower). The core function of this model is to control the speed, torque, and direction of three-phase induction motors, achieving high efficiency, energy saving, and precise control through frequency conversion technology.
2、 Technical specifications (typical)
Input voltage: three-phase 380~460 VAC, 50/60 Hz
Output voltage: 0~460 VAC, variable frequency output
Power level: 34 HP (approximately 25.3 kW)
Output frequency range: 0.1~400 Hz
Control mode: V/f (voltage/frequency) control or vector control
Overload capacity: 150% rated current, can last for 60 seconds
Cooling method: forced air cooling
Communication interface: Supports expansion cards (such as RS-485, DeviceNet, etc.)
3、 Main product features
Advanced vector control technology
It can achieve precise control of motor torque and speed, especially suitable for high dynamic response situations.
Equipped with Sensorless Vector control, it can stably output torque without the need for an encoder.
Wide frequency output range
The output frequency can reach up to 400 Hz, which can meet the needs of high-speed motors and special applications.
Rich protection functions
Built in fault detection and protection mechanisms for overvoltage, undervoltage, overcurrent, overheating, and ground short circuit.
Having automatic reset and programmable fault response mechanisms helps improve system availability.
Easy to set up and debug
Provide a digital operation panel for convenient parameter viewing, modification, and storage.
The parameter structure is clear, with quick copy function, suitable for batch debugging work.
Flexible I/O configuration
It has up to 5 digital inputs, 2 analog inputs, 2 relay outputs, and 1 analog output.
All I/O can be functionally mapped through parameters to achieve customized control logic.
Built in energy-saving operation mode
Under light load conditions, the output voltage will automatically decrease to reduce energy consumption.
Support jumping frequency band (can avoid resonance) and dynamic braking control.
Modular design for easy maintenance
The fan, control board and other components can be replaced independently, simplifying the maintenance process.
Support hot swappable communication modules.

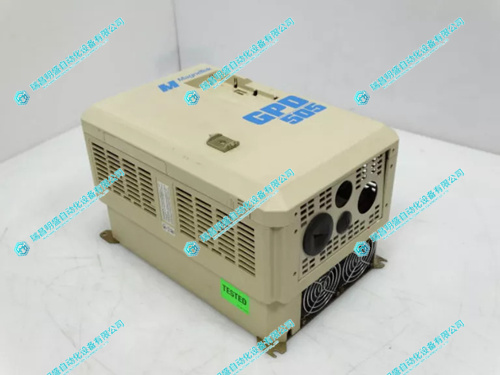

2.产 品 展 示
3.其他产品
4.其他英文产品
