Magnetek 6679-07-011 BG03电源板
1.产 品 资 料 介 绍：
英文资料：
1、 Product Overview
The model is 6679-07-011, internally labeled as BG03 power board, which belongs to high voltage (HV) power supply board. It is mainly used in the Magentek/Power One series of devices and is an important component responsible for high-voltage power supply in this series of devices.
2、 Technical features and parameters
Purpose: The main function of this power board is to provide high-voltage DC or pulse power for lighting fixtures, electrical control equipment, or related high-voltage modules. In practical applications, it is commonly used in industrial electric drives, lighting dimmers, or specific driving scenarios to provide stable high-voltage power support for the normal operation of these devices.
High voltage level: Its rated maximum voltage is about 4 kV, which can stably output the required voltage when driving 70W lamps or other high-voltage loads, ensuring the normal start-up and operation of load equipment.

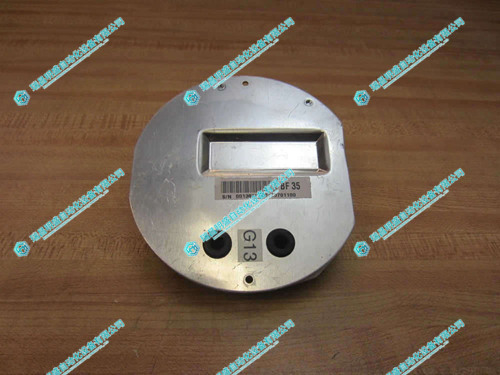

Packaging form: Adopting a packaging design installed on a metal base plate, this design facilitates the fixed installation of the power board, allowing it to be stably placed in the corresponding position inside the equipment; On the other hand, the metal bottom plate helps to dissipate heat and can timely dissipate the heat generated during the operation of the power board, ensuring that the power board operates in a suitable temperature environment and extending its service life.
Safety certification: Compliant with UL 94V-0 flame retardant standard, marked as RL CP5. This safety certification indicates that the power board has reached a high standard in terms of flame retardancy, which can to some extent reduce the risk of fire caused by circuit faults and improve the safety of equipment use.
Manufacturer: Belonging to the Magnetek/Power One series of boards, produced by relevant manufacturers to ensure product quality and compatibility.
3、 Typical application areas
High voltage lighting equipment: It is widely used in high-voltage lighting equipment and can be used for voltage ignition and stabilization of seat discharge lamps, fluorescent lamp ballasts, or specific industrial light sources. When driving 70W lamp equipment, it can provide stable high-voltage output to ensure that the lamp emits light normally and the brightness is stable.
Industrial electronic control system: In industrial electronic control systems, it can be applied to Magentek control power supply, providing isolated high-voltage source for control units or motherboard modules. At the same time, it can support the power supply requirements of dimming panels, driver modules, or high-voltage testing equipment, ensuring the stable operation of these electronic control system components.
Replacement and maintenance purposes: Often provided as inventory spare parts, it can be used for repairing or replacing faulty power boards in case of equipment failure, helping the equipment quickly restore normal operation. In the market, both new products and second-hand procurement channels can be found, providing convenient purchasing options for magnetic flux, repair service providers, etc., meeting their needs in equipment repair and maintenance.

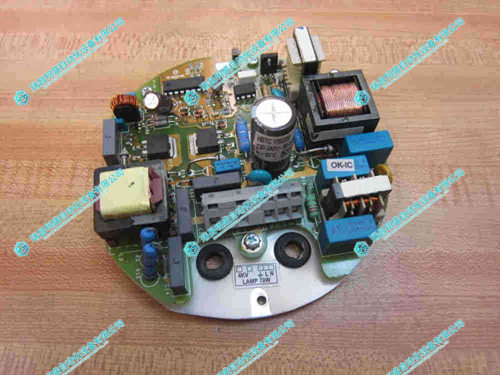

2.产 品 展 示
