Magnetek GPD505V-B021 控制器
1.产 品 资 料 介 绍：
- 在泵和风机系统中，可用于流量及压力调节，通过改变电机转速来精准控制泵的流量和风机的风量，从而调节系统压力，满足不同工况需求。
- 适用于输送带和提升设备的速度控制，能根据生产需求灵活调整输送带的输送速度和提升设备的运行速度，提高生产效率和操作安全性。
- 可对各类工业自动化设备的电机进行控制，保证电机按照设定的参数稳定运行，为工业自动化生产提供可靠的动力支持。
- 应用于暖通空调（HVAC）系统的风机及水泵控制，通过调节风机和水泵的转速，实现对室内温度、湿度等环境参数的精准控制，同时降低系统能耗。
- 通过变频控制能够优化电机的运行状态，使电机在不同负载下都能以最佳效率运行，从而有效降低能耗，符合节能降耗的工业发展趋势。
- 采用 V/f 控制方式，能够保证电机在启动和运行过程中平稳顺畅，减少电机启动时的冲击电流和运行时的振动，延长电机的使用寿命。
- 采用紧凑设计，体积小巧，便于集成到各种工业控制系统中，节省安装空间，简化系统布局。
- 具备较强的环境适应能力，能够在恶劣的工业环境中稳定工作，抵御粉尘、振动、温度变化等因素的影响，保证设备长期稳定运行，减少故障停机时间。
英文资料：
1、 Product Overview
The model is GPD505V-B021, which belongs to industrial grade AC variable frequency drive (VFD). Its input voltage is three-phase 460V AC, frequency is 50/60Hz, output current is 21 amperes, and rated power is about 15 horsepower (11.2 kilowatts). Adopting V/f control mode, suitable for general load applications, the modulation method is pulse width modulation (PWM). It should be noted that this product is currently discontinued, but it is still an important control component in some industrial equipment that is still in operation.
2、 Typical application areas
In pump and fan systems, it can be used for flow and pressure regulation. By changing the motor speed, the flow rate of the pump and the air volume of the fan can be accurately controlled to regulate the system pressure and meet different working conditions.
Suitable for speed control of conveyor belts and lifting equipment, it can flexibly adjust the conveying speed of the conveyor belt and the operating speed of the lifting equipment according to production needs, improving production efficiency and operational safety.
It can control the motors of various industrial automation equipment to ensure stable operation according to the set parameters, providing reliable power support for industrial automation production.
Applied to the control of fans and pumps in HVAC systems, precise control of indoor temperature, humidity, and other environmental parameters is achieved by adjusting the speed of fans and pumps, while reducing system energy consumption.
3、 Product advantages
By using frequency conversion control, the operating state of the motor can be optimized, enabling it to operate at optimal efficiency under different loads, thereby effectively reducing energy consumption and conforming to the industrial development trend of energy conservation and consumption reduction.
By adopting V/f control mode, the motor can be ensured to be stable and smooth during start-up and operation, reducing the impact current during start-up and vibration during operation, and extending the service life of the motor.
Adopting a compact design and small size, it is easy to integrate into various industrial control systems, saving installation space and simplifying system layout.
Having strong environmental adaptability, able to work stably in harsh industrial environments, resist the influence of factors such as dust, vibration, and temperature changes, ensure long-term stable operation of equipment, and reduce downtime caused by malfunctions.

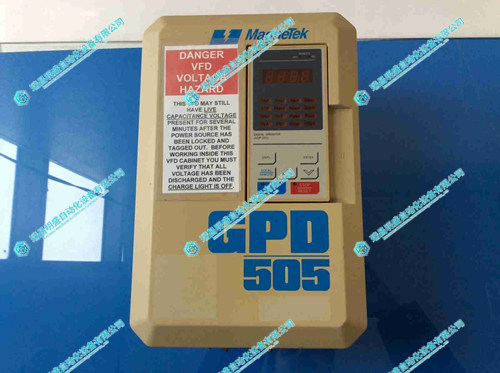

2.产 品 展 示
