Magnetek EDB4021ET动态制动电阻器
1.产 品 资 料 介 绍：
- 型号：EDB4021ET
- 电压等级：460V AC
- 功率匹配：适用于约 15 HP 的交流电机
- 适配电流：约 24 A（满载电流）
- 类型：Class D 动态制动电阻器
- 安装方式：柜内或外置模块化安装
- 起重与起升设备：像起重机、电动葫芦、升降平台这类设备，存在频繁启停的情况，在制动过程中会产生再生能量。EDB4021ET 能够对这部分能量进行有效吸收，从而保护变频器和电网的稳定运行。
- 电梯与索道系统：当电梯处于下行或减速阶段时，电机会出现能量回馈现象，该电阻器可以及时吸收电能并将其转化为热量，保证制动过程既平稳又安全。
- 输送与搬运系统：在物流输送带、自动堆垛系统、机器人臂等需要快速启停的设备中发挥作用，能够防止回生电压对控制系统造成冲击。
- 高惯性风机与水泵系统：大型风机或泵类设备在紧急停车时，会由于惯性释放出大量能量，EDB4021ET 可有效避免过电压情况的发生。
- 冶金与矿山机械：在设备高速运转或重载运行后的急停阶段，通过电阻器能够快速消耗回馈电流，防止设备损坏，提高系统的可靠性。
英文资料：
1、 Product Overview
MAGNETEK EDB4021ET is a dynamic braking resistor designed specifically for frequency converters. Its core function is to absorb the regenerated energy generated when the motor is in a braking or deceleration state, and convert this energy into heat energy to be released. This process can effectively prevent the bus voltage of the frequency converter from being too high, thereby ensuring the stable operation of the drive system. This resistor is widely used in industrial equipment with high inertia characteristics or frequent start stop requirements.
2、 Technical parameters (typical)
Model: EDB4021ET
Voltage level: 460V AC
Power matching: suitable for AC motors of approximately 15 HP
Adaptive current: approximately 24 A (full load current)
Type: Class D dynamic braking resistor
Installation method: Modular installation inside or outside the cabinet
3、 Application Fields
Lifting and hoisting equipment: Equipment such as cranes, electric hoists, and lifting platforms have frequent start stop situations and generate regenerative energy during braking. EDB4021ET can effectively absorb this energy, thereby protecting the stable operation of the frequency converter and the power grid.
Elevator and Cableway System: When the elevator is in the downward or deceleration stage, the motor will experience energy feedback. This resistor can absorb electrical energy in a timely manner and convert it into heat, ensuring a smooth and safe braking process.
Conveyor and handling system: It plays a role in equipment such as logistics conveyor belts, automatic stacking systems, and robot arms that require rapid start stop, and can prevent the impact of regenerative voltage on the control system.
High inertia fan and pump system: Large fan or pump equipment will release a large amount of energy due to inertia during emergency shutdown, and EDB4021ET can effectively avoid overvoltage situations.
Metallurgy and mining machinery: During the emergency stop phase after high-speed or heavy load operation of equipment, resistors can quickly consume feedback current, prevent equipment damage, and improve system reliability.

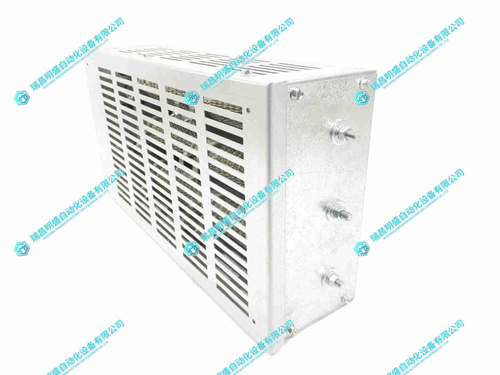

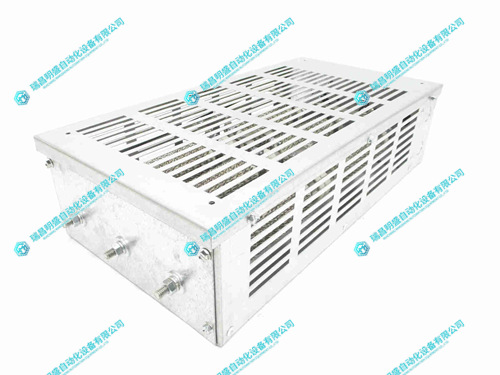

2.产 品 展 示
