GIDINGS&LEWIS 58009023遥控器

1.产 品 资 料 介 绍：

Giddings & Lewis 58009023 遥控器

产品概述

主要特点

人体工学设计：适配长时间操作需求

• 手持形态优化：采用符合手部握持习惯的手持式外形，曲线贴合手掌轮廓，避免握持时出现局部压迫感；同时重量经过精准控制，既不会因过轻导致操作不稳，也不会因过重增加手部负担，完美适配 8 小时工作制下的连续操作场景。
• 操控布局科学：按键与选择旋钮的排列经过反复验证，遵循 “常用功能优先” 的布局原则 —— 高频操作的控制键（如启动、停止）位于手指自然伸展即可触及的区域，选择旋钮的阻尼感适中，转动时既不会过松导致误触，也不会过紧增加操作力度，大幅提升操作舒适度与准确性，降低因布局不合理导致的操作失误。

控制功能：覆盖核心操作需求，兼顾便捷与精准

• 基础操控全覆盖：内置设备运行必需的基础功能键，包括启动、停止、复位、进给控制与主轴控制 —— 操作人员无需返回主控制面板，即可在设备旁直接完成从启动设备到调整进给速度、主轴转速的全流程操作，尤其适合加工过程中需要实时观察工件状态并同步调整参数的场景。
• 手动点动精准控制：在手动模式下，可实现各轴的点动控制功能。通过精准的信号传输，操作人员能够微调设备各轴的位置，例如调整机床刀具的进给路径、校准工件的装夹位置等，点动控制的精度与主控制面板操作保持一致，确保手动调整时的准确性。
• 快捷键提升效率：集成工业现场常用的功能快捷键，如 “参数保存”“模式切换”“倍率调整” 等，无需通过多级菜单查找，一键即可触发对应功能。例如在批量加工时，通过快捷键快速切换不同工件的加工参数，大幅缩短操作时间，提升生产效率。

英文资料：

Giddings&Lewis 58009023 Remote Control

Product Overview

The Giddings&Lewis 58009023 remote control is a human-machine interaction device specially designed for machine tools and automation equipment. Its core value lies in breaking the limitations of operating space - when operators need to stay away from the main control panel, they can use this remote control to achieve convenient and safe operation of the equipment. Its application scenarios are highly focused on the core links of industrial production, including the processing adjustment of CNC machine tools, process control of production lines, and equipment operation and maintenance of automated workstations. With the flexibility of handheld operation and the convenience of remote adjustment, it has become a key auxiliary equipment to improve on-site operation efficiency and safety.

Main Features

Ergonomic design: adapted to long-term operational needs

Starting from the actual user experience of the operator, this remote control is deeply integrated with ergonomic concepts in its design, ensuring no obvious fatigue during long-term operation.

Handheld form optimization: Adopting a handheld shape that conforms to the grip habits of the hand, the curve fits the contour of the palm, avoiding local pressure when holding; At the same time, the weight is precisely controlled, so it will not cause unstable operation due to being too light, nor will it increase the burden on the hands due to being too heavy, perfectly adapting to continuous operation scenarios under an 8-hour work schedule.

Scientific control layout: The arrangement of buttons and selection knobs has been repeatedly verified, following the layout principle of "common functions first" - high-frequency operation control buttons (such as start and stop) are located in the area that can be naturally reached by fingers, and the damping of the selection knob is moderate. When turning, it will not be too loose to cause accidental touch, nor will it be too tight to increase operation force, greatly improving operation comfort and accuracy, and reducing operation errors caused by unreasonable layout.

Control function: covering core operational requirements, balancing convenience and precision

The control function of the remote control is designed around the core scenario of equipment operation and maintenance, including basic start stop control and supporting fine parameter adjustment to meet the needs of different operation stages.

Basic Control Full Coverage: Built in equipment with necessary basic function keys for operation, including start, stop, reset, feed control, and spindle control - operators can directly complete the entire process from starting the equipment to adjusting feed speed and spindle speed next to the equipment without returning to the main control panel, especially suitable for scenarios where real-time observation of workpiece status and synchronous adjustment of parameters are required during the machining process.

Manual jog precise control: In manual mode, the jog control function of each axis can be achieved. Through precise signal transmission, operators can fine tune the position of each axis of the equipment, such as adjusting the feed path of machine tools, calibrating the clamping position of workpieces, etc. The accuracy of jog control is consistent with that of the main control panel operation, ensuring the accuracy of manual adjustment.

Shortcut keys improve efficiency: Integrate commonly used functional shortcut keys in industrial sites, such as "parameter saving", "mode switching", "magnification adjustment", etc., without the need to search through multi-level menus, one click can trigger corresponding functions. For example, in batch processing, using shortcut keys to quickly switch the processing parameters of different workpieces greatly reduces operation time and improves production efficiency.

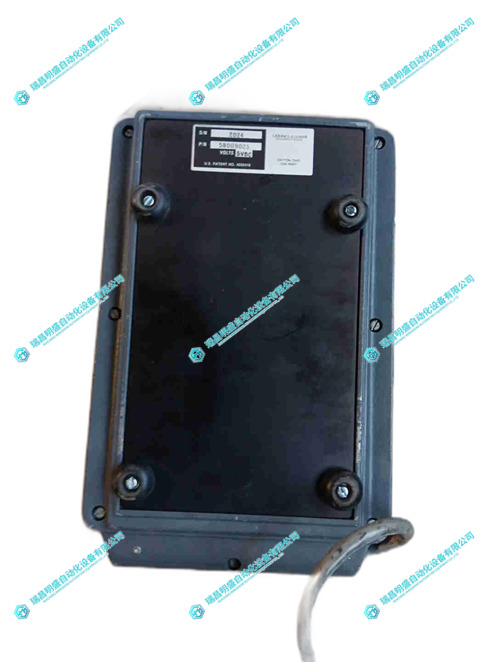

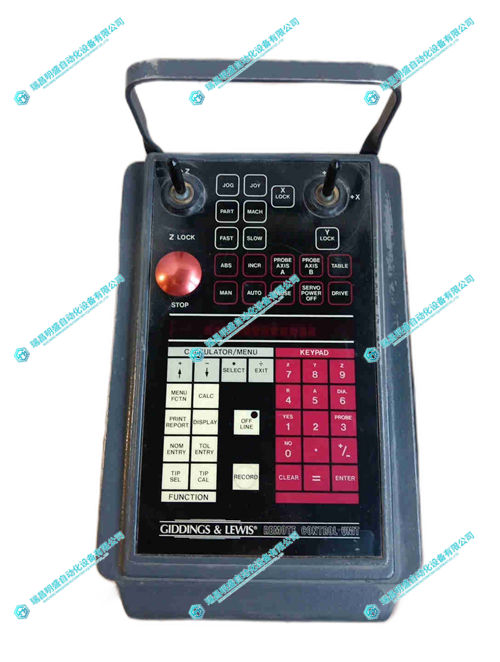

2.产      品      展      示
