GIDINGS&LEWIS 401-30234-01步进电机

 GIDINGS&LEWIS 401-30234-01步进电机

1.产 品 资 料 介 绍：

产品概述

核心功能特性

• 精准脉冲定位：依据输入的电脉冲信号工作，每接收到一个脉冲，电机就转动一个固定的角度，即步距角。401 - 30234 - 01 步进电机的步距角设计精准，能够实现极为精细的位置调整，在一些对定位精度要求较高的设备中，如电子元件贴片机，可精确控制元件的放置位置，偏差极小，确保生产过程的高精度。
• 多种运行模式：支持多种运行模式以适应不同工况。整步运行时，电机以较大的步距角转动，输出转矩较大，适用于负载较重且对速度要求不高的场景，如一些简易的物料搬运设备；半步运行模式下，步距角减半，定位精度提升，同时保持一定的输出转矩，可满足对精度和转矩都有一定要求的应用；细分运行模式则将一个步距角进一步细分，使电机运行更加平稳，在对运动平稳性要求极高的设备，如雕刻机中，能实现平滑的雕刻路径，提升加工质量。
• 快速启停与响应：具备快速启停能力，从静止状态到全速运行，或从全速运行到停止，响应时间极短。在自动化生产线中，设备需要频繁启停来完成不同工序，该步进电机可迅速响应控制信号，快速切换运行状态，极大提高了生产效率，减少了设备等待时间，确保生产线的高效运转。
• 良好的自锁特性：在停止输入脉冲信号时，电机能够保持在当前位置，具有良好的自锁能力。这一特性在一些需要保持固定位置的设备中非常重要，如仓储物流中的自动分拣设备，在分拣完成后，电机可锁定位置，防止货物因外力或振动而位移，保障设备运行的稳定性和准确性。

英文资料：

Product Overview

GIDINGS&LEWIS 401-30234-01 stepper motor, as a key power source in industrial automation equipment, provides reliable drive for numerous precision motion control scenarios with its unique design and excellent performance. It plays a core role in open-loop control systems by converting electrical pulse signals into angular or linear displacement, enabling precise position control without the need for complex position feedback devices. It is widely used in industrial fields with specific requirements for accuracy, cost, and space, such as 3D printers, small automated production lines, etc., to assist equipment in efficient and accurate operation.

Core functional characteristics

Accurate pulse positioning: Based on the input electrical pulse signal, the motor rotates a fixed angle, namely the step angle, every time a pulse is received. The step angle design of the 401-30234-01 stepper motor is precise, enabling extremely fine position adjustment. In some devices that require high positioning accuracy, such as electronic component placement machines, the placement position of components can be accurately controlled with minimal deviation, ensuring high precision in the production process.

Multiple operating modes: Supports multiple operating modes to adapt to different working conditions. During full step operation, the motor rotates at a large step angle and outputs a large torque, making it suitable for scenarios with heavy loads and low speed requirements, such as some simple material handling equipment; In the half step operation mode, the step angle is halved, the positioning accuracy is improved, and a certain output torque is maintained, which can meet the application requirements for both accuracy and torque; The subdivision operation mode further subdivides a step angle to make the motor run more smoothly. In equipment that requires extremely high motion stability, such as carving machines, smooth carving paths can be achieved to improve processing quality.

Quick start stop and response: With the ability to quickly start stop, from a stationary state to full speed operation, or from full speed operation to stop, the response time is extremely short. In automated production lines, equipment needs to be frequently started and stopped to complete different processes. This stepper motor can quickly respond to control signals, switch operating states quickly, greatly improve production efficiency, reduce equipment waiting time, and ensure efficient operation of the production line.

Good self-locking characteristics: When the input pulse signal stops, the motor can maintain its current position and has good self-locking ability. This feature is very important in some equipment that requires maintaining a fixed position, such as automatic sorting equipment in warehousing and logistics. After sorting is completed, the motor can lock the position to prevent the goods from shifting due to external forces or vibrations, ensuring the stability and accuracy of equipment operation.

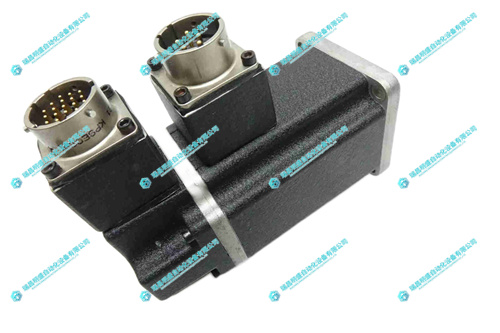

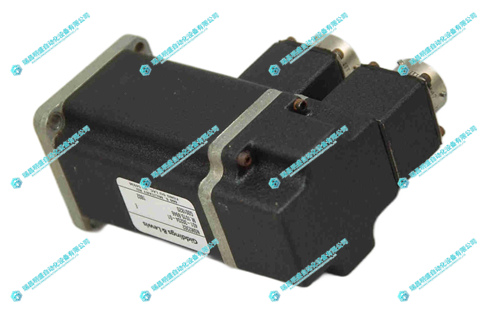

 2.产      品      展      示
