FORCE COMPUTERS SYS68K/CPU-60D/32/C2计算机控制板

FORCE COMPUTERS SYS68K/CPU-60D/32/C2计算机控制板

1.产 品 资 料 介 绍：

核心技术特性

• 处理器与运算能力：搭载 Motorola MC68060 处理器，主频 32 MHz，集成整数运算单元与浮点单元（FPU），无需额外协处理器即可高效处理复杂数学运算，满足工业控制、科学计算等场景的高性能需求。
• 总线与扩展性：完全兼容 VMEbus 标准，支持主控与从属模式，可与多类型扩展模块互联，轻松构建分布式多板系统，适应复杂系统架构。
• 存储与接口：支持 DRAM、SRAM、EPROM/Flash 等多层次存储扩展，平衡数据缓存与程序固化需求；配备串口、并口及可扩展外设接口，方便连接外部设备与定制化模块。
• 系统兼容性：适配 VxWorks、OS-9、UNIX 等实时 / 多任务操作系统，支持多任务调度与实时响应，便于应用开发与移植。
• 可靠性设计：采用工业级元器件与抗干扰电路设计，能适应长时间连续运行、复杂电磁环境及高低温、振动等恶劣工况，保障关键任务的稳定性。

主要应用领域

• 工业自动化：作为生产线过程控制、实时监控系统的核心，支撑 SCADA、DCS 等系统的高精度数据处理与控制指令执行，确保生产流程高效协同。
• 电力与能源：应用于电厂机组控制、保护系统及电网调度、输变电自动化设备，实现电力参数的实时监测与精准调控，保障能源系统稳定运行。
• 交通运输：集成于铁路信号、列车控制系统及航空航天地面监控、飞行控制设备，提供高可靠的嵌入式计算支持，助力交通与航天领域的安全操作。
• 通信与网络：作为电信级设备的核心计算单元，处理数据交换、网络协议及实时数据传输任务，保障通信网络的高效与稳定。
• 医疗与科研：用于医疗影像处理、精密检测设备及科研实验平台，承担数据采集、复杂运算等任务，满足精密仪器对处理能力的要求。
• 国防与军工：适配导弹、雷达、火控系统的实时计算核心及战术通信、指挥控制系统，提供抗干扰、高连续的嵌入式计算支持，保障军事任务的可靠性。

FORCE COMPUTERS SYS68K/CPU-60D/32/C2计算机控制板 英文资料：

The FORCE COMPUTERS SYS68K/CPU-60D/32/C2 computer control board is a high-performance VMEbus single board computer based on the Motorola 68060 processor. With 32-bit processing power and built-in floating-point arithmetic unit as its core advantages, it is designed for industrial and professional fields that require strict real-time and reliability requirements.

Core technical characteristics

Processor and Computing Capability: Equipped with Motorola MC68060 processor, with a main frequency of 32 MHz, it integrates integer and floating-point units (FPUs) to efficiently process complex mathematical operations without the need for additional co processors, meeting the high-performance requirements of industrial control, scientific computing, and other scenarios.

Bus and Scalability: Fully compatible with the VMEbus standard, supports master and slave modes, can interconnect with multiple types of expansion modules, easily builds distributed multi board systems, and adapts to complex system architectures.

Storage and Interface: Supports multi-level storage expansion such as DRAM, SRAM, EPROM/Flash, balancing data caching and program solidification requirements; Equipped with serial port, parallel port, and expandable peripheral interfaces, it is convenient to connect external devices and customized modules.

System compatibility: Compatible with real-time/multitasking operating systems such as VxWorks, OS-9, UNIX, etc., supporting multitasking scheduling and real-time response, facilitating application development and porting.

Reliability design: Adopting industrial grade components and anti-interference circuit design, it can adapt to long-term continuous operation, complex electromagnetic environment, high and low temperature, vibration and other harsh working conditions, ensuring the stability of key tasks.

Main application areas

Industrial automation: As the core of production line process control and real-time monitoring systems, it supports high-precision data processing and control instruction execution of SCADA, DCS and other systems, ensuring efficient collaboration of production processes.

Electricity and Energy: Applied to power plant unit control, protection systems, power grid dispatch, and transmission automation equipment, to achieve real-time monitoring and precise control of power parameters, ensuring stable operation of the energy system.

Transportation: Integrated into railway signaling, train control systems, aerospace ground monitoring, and flight control equipment, providing highly reliable embedded computing support to assist in safe operations in the transportation and aerospace fields.

Communication and Network: As the core computing unit of telecom grade equipment, it processes data exchange, network protocols, and real-time data transmission tasks to ensure the efficiency and stability of communication networks.

Medical and scientific research: used for medical image processing, precision detection equipment, and scientific research experimental platforms, undertaking tasks such as data acquisition and complex calculations to meet the processing requirements of precision instruments.

National Defense and Military Industry: Real time computing cores adapted to missiles, radars, and fire control systems, as well as tactical communication and command control systems, providing anti-interference and high continuity embedded computing support to ensure the reliability of military missions.

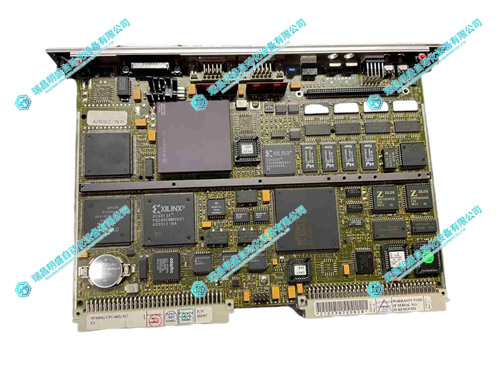

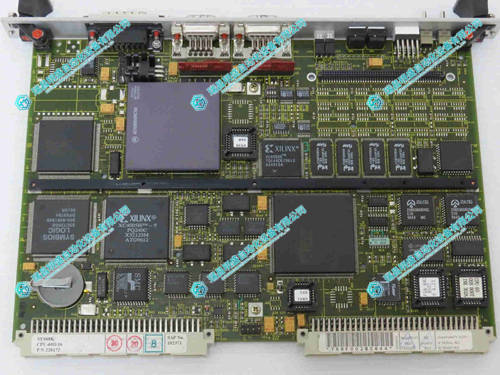

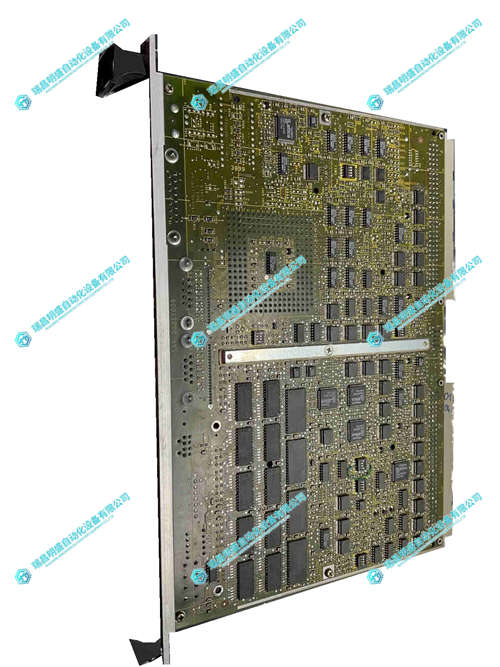

FORCE COMPUTERS SYS68K/CPU-60D/32/C2计算机控制板  产      品      展      示
