FORCE COMPUTERS SYS68K/CPU-6A CPU控制器板

FORCE COMPUTERS SYS68K/CPU-6A CPU控制器板

1.产 品 资 料 介 绍：

核心特性

性能与应用

• PLC/DCS 系统：实时逻辑控制与状态监测
• 发电厂监控：机组控制与电网保护
• 铁路信号系统：列车控制与调度
• 通信数据采集：协议处理与实时传输
• 军工嵌入式平台：雷达、火控、指挥系统

选购与适配建议

1. 确认 CPU 型号：如 68010、68020、68030，性能差异较大
2. 核对接口：VME 槽位、串口数量及电平标准（RS‑232/422/485）
3. 存储配置：DRAM、SRAM、Flash 容量与是否带板载编程功能
4. 软件适配：目标操作系统（VxWorks、OS‑9 等）版本及驱动支持
5. 环境条件：工作温度、振动等级、电磁兼容性是否满足现场要求

FORCE COMPUTERS SYS68K/CPU-6A CPU控制器板 英文资料：

SYS68K/CPU-6A is an industrial grade VMEbus single board CPU controller board launched by FORCE COMPUTERS. It is based on the Motorola 68K series RISC architecture and is designed for embedded real-time control and system management applications.

Core Features

Dimension technical parameter description

The frequency and floating-point capability of Motorola 68K series processors (such as 68010, 68020, etc.) are configured according to the model

The bus interface VMEbus standard supports parallel interconnection of multiple boards

Storage Expansion DRAM, SRAM, EPROM/Flash Scalable Program and Data Storage

I/O interface with multiple serial ports (RS-232/422/485), parallel ports, and I/O expansion to meet industrial peripheral connection requirements

Operating systems such as VxWorks, OS-9, UNIX, etc. support real-time and multitasking

Industrial design with high anti-interference, wide temperature range, anti vibration, dust-proof, and adaptable to harsh environments

Typical configuration: 12.5 MHz MC68010, 512 KB DRAM with VME PROM, reset/abort switch

Performance and Application

This board utilizes the low power consumption and high real-time performance of 68K to undertake core computing and control tasks in industrial automation, power control, railway signaling, aerospace ground equipment, communication base stations, and military control systems.

PLC/DCS System: Real time Logic Control and Status Monitoring

Power Plant Monitoring: Unit Control and Grid Protection

Railway Signal System: Train Control and Dispatch

Communication data collection: protocol processing and real-time transmission

Military embedded platform: radar, fire control, command system

Selection and adaptation suggestions

Confirm CPU model: such as 68010, 68020, 68030, with significant performance differences

Verify interface: VME slot position, serial port quantity and level standard (RS-232/422/485)

Storage configuration: DRAM, SRAM, Flash capacity and whether they have onboard programming function

Software adaptation: Target operating system (VxWorks, OS-9, etc.) version and driver support

Environmental conditions: whether the working temperature, vibration level, and electromagnetic compatibility meet the on-site requirements

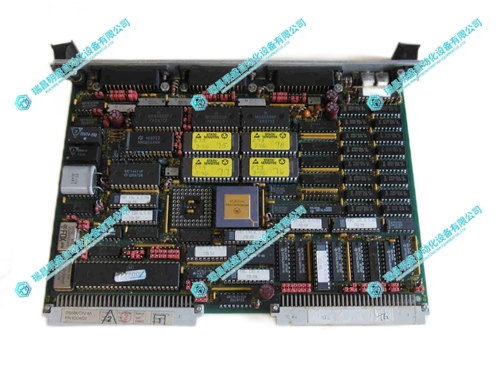

 FORCE COMPUTERS  SYS68K/CPU-6A CPU控制器板 产      品      展      示
