Extreme Networks X430-24p交换机
1.产 品 资 料 介 绍：
- PoE + 接入端口：配备 24 个 10/100/1000 BASE-T 自适应电口，且全部支持 IEEE 802.3af/at PoE + 标准，单端口最大输出 30W 功率，可直接为无线 AP、IP 电话、高清监控摄像机等设备供电，无需额外部署电源线路。
- 上行扩展端口：含 4 个独立 SFP 千兆光口（非复用设计），支持 1000 BASE-X 光模块，可灵活对接核心交换机或服务器，实现千兆光纤上行，突破铜缆 100 米传输限制，适配中小型企业的楼层或分支机构组网。
- 部署适配性：24 个 PoE + 端口集中布局，尤其适合会议室、连锁门店、办公楼宇等需要密集供电的场景，大幅降低布线与维护成本。
- PoE 功率保障：整机 PoE 功率预算达 370W-380W，可满负荷为 24 个 PoE + 设备供电（单口 30W），即使接入高功耗终端（如双频无线 AP）也无需担心功率不足问题。
- 核心性能参数：交换容量达 88Gbps，转发速率 36Mpps，64 字节数据包时延低于 5µs，兼容 9KB 巨帧，24 个千兆电口与 4 个千兆光口均支持线速转发，端口总带宽之和的两倍（24×2Gbps + 4×2Gbps = 56Gbps）远低于交换容量，确保无性能瓶颈。
- 流量管控能力：提供 8 个出口 QoS 队列，支持基于 802.1p、DSCP 的优先级分类，可优先保障语音、视频等关键业务带宽，避免因终端接入密集导致的网络拥塞。
Extreme Networks X430-24p交换机 英文资料：
1. Full PoE+port configuration: focusing on integrated terminal power supply and access
The Extreme Networks X430-24p is a dedicated model for the access layer, with port design centered around "PoE power supply+flexible expansion", suitable for multi terminal centralized scenarios:
PoE+Access Port: Equipped with 24 10/100/1000 BASE-T adaptive electrical ports, all of which support IEEE 802.3af/at PoE+standard. The maximum output power of a single port is 30W, which can directly power wireless APs, IP phones, high-definition surveillance cameras and other devices without the need for additional power lines.
Upstream expansion port: includes 4 independent SFP gigabit optical ports (non multiplexed design), supports 1000 BASE-X optical modules, can flexibly connect to core switches or servers, achieve gigabit fiber optic uplink, break through the 100 meter transmission limit of copper cables, and adapt to the floor or branch network of small and medium-sized enterprises.
Deployment adaptability: 24 PoE+ports are centrally arranged, especially suitable for scenarios that require intensive power supply such as conference rooms, chain stores, and office buildings, greatly reducing wiring and maintenance costs.
2. High power PoE and line speed performance: balancing power supply and transmission efficiency
Extreme Networks X430-24p balances PoE power allocation and data transmission performance to meet the requirements of converged networks:
PoE power guarantee: The overall PoE power budget is 370W-380W, which can supply power to 24 PoE+devices at full load (single port 30W). Even when connected to high-power terminals (such as dual band wireless APs), there is no need to worry about insufficient power.
Core performance parameters: Switching capacity of 88Gbps, forwarding rate of 36Mpps, 64 byte packet latency of less than 5 µ s, compatible with 9KB jumbo frames, 24 Gigabit electrical ports and 4 Gigabit optical ports all support line speed forwarding, and the total bandwidth of the ports is twice the sum (24 × 2Gbps+4 × 2Gbps=56Gbps), far below the switching capacity, ensuring no performance bottlenecks.
Traffic control capability: Provides 8 exit QoS queues, supports priority classification based on 802.1p and DSCP, can prioritize the protection of critical business bandwidth such as voice and video, and avoid network congestion caused by dense terminal access.

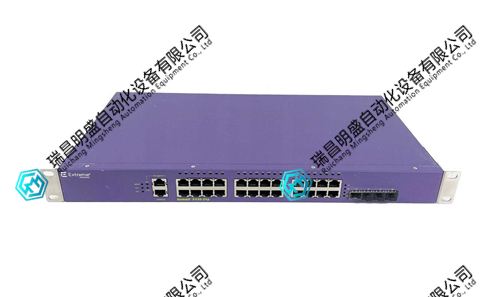

Extreme Networks X430-24p交换机 产品展示
产品视频
