Extreme Networks AL3600A16-E6交换机模块
1.产 品 资 料 介 绍：
- 型号属性：推测为 Extreme Networks 旗下 AL 系列（Access Layer 接入层）高密度端口扩展模块，“3600” 或为适配主机交换机的系列标识，“16” 代表 16 个业务端口，“A16-E6” 为硬件版本与编码后缀，主打模块化交换机的接入层端口扩展，适配企业分支或园区网边缘部署。
- 端口配置（推测）：大概率配备 16 个 10/100/1000Base-TX 千兆电口（部分版本支持 PoE+，单口 30W），或可选配 16 个 SFP 千兆光口（需以实际型号为准）；端口支持速率自适应与全双工模式，兼容 Access、Trunk 链路模式，适配终端接入与设备互联场景，可通过主机交换机实现端口聚合与 VLAN 划分。
- 关键性能（推测）：单模块交换容量 32Gbps，包转发率 23.8Mpps；若支持 PoE+，总功率或达 190W（可满配 6 台 30W 设备）；支持 Jumbo 帧（最大 9216 字节），MAC 地址表容量兼容主机交换机规格（通常≥16K），适配 16 路千兆终端的并发数据传输需求。
- 轻量化接入扩展：16 端口高密度设计，可快速扩展模块化交换机（如 Extreme 5000/7000 系列）的接入端口数量，相比新增固定端口交换机更节省机柜空间，适配分支机房 “小而密” 的终端接入需求。
- 灵活适配多场景：电口版本可直接连接 PC、IP 电话、Wi-Fi AP 等终端，光口版本（若支持）可通过光纤连接远端接入点（如跨楼宇设备），配合主机交换机的 QoS 功能，为语音、视频等关键流量分配优先带宽。
- 统一管理与运维：接入主机交换机后，可通过 ExtremeCloud IQ 或主机管理平台实现集中监控，支持端口状态实时查看、固件批量升级与故障告警，无需单独配置管理 IP，降低运维复杂度。
- 可靠运行保障：采用热插拔设计，支持在线更换模块无需停机；具备端口过流、过压保护功能，降低外部设备故障对模块的影响，配合主机交换机的冗余电源，保障业务连续性。
Extreme Networks AL3600A16-E6交换机模块 英文资料：
1、 Core parameter reference (inferred based on brand module rules)
Model attribute: It is speculated to be an AL series (Access Layer) high-density port expansion module under Extreme Networks. "3600" is the series identifier for adapting to host switches, "16" represents 16 business ports, and "A16-E6" is the hardware version and encoding suffix. It is mainly used for modular switch access layer port expansion and is suitable for enterprise branch or campus network edge deployment.
Port configuration (speculation): It is highly likely to be equipped with 16 10/100/1000Base TX gigabit electrical ports (some versions support PoE+, single port 30W), or optional 16 SFP gigabit optical ports (subject to actual model); The port supports rate adaptive and full duplex modes, compatible with Access and Trunk link modes, suitable for terminal access and device interconnection scenarios, and can achieve port aggregation and VLAN partitioning through host switches.
Key performance (speculation): Single module switching capacity of 32Gbps, packet forwarding rate of 23.8Mpps; If supporting PoE+, the total power may reach 190W (can be fully equipped with 6 30W devices); Supports Jumbo frames (up to 9216 bytes), MAC address table capacity compatible with host switch specifications (usually ≥ 16K), and adapts to the concurrent data transmission requirements of 16 Gigabit terminals.
2、 Core functions and values (based on modular features)
Lightweight access expansion: With a 16 port high-density design, it can quickly expand the number of access ports for modular switches (such as the Extreme 5000/7000 series), saving cabinet space compared to adding fixed port switches and adapting to the "small and dense" terminal access needs of branch rooms.
Flexible adaptation to multiple scenarios: The electrical port version can directly connect to terminals such as PCs, IP phones, Wi Fi APs, etc., while the optical port version (if supported) can connect to remote access points (such as cross building devices) through fiber optics, and with the QoS function of the host switch, allocate priority bandwidth for critical traffic such as voice and video.
Unified management and operation: After connecting to the host switch, centralized monitoring can be achieved through ExtremeCloud IQ or the host management platform. It supports real-time viewing of port status, batch firmware upgrades, and fault alarms, without the need to configure a separate management IP, reducing operation and maintenance complexity.
Reliable operation guarantee: adopting hot swappable design, supporting online module replacement without downtime; Equipped with port overcurrent and overvoltage protection functions, it reduces the impact of external device failures on the module, and works with the redundant power supply of the host switch to ensure business continuity.

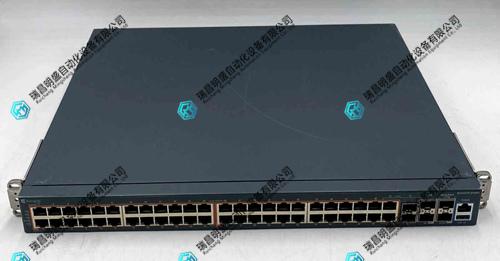

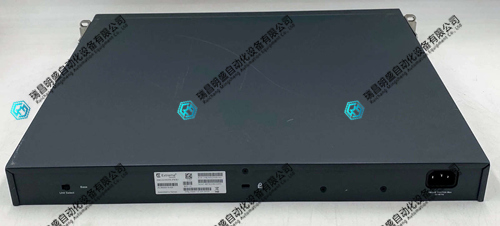

Extreme Networks AL3600A16-E6交换机模块 产品展示
产品视频
