Extreme Networks 5520-VIM多功能接口模块
1.产 品 资 料 介 绍：
- 5520 系列专属适配：Extreme Networks 5520-VIM 作为 5520 系列核心交换机的专用扩展模块，精准匹配交换机的模块化插槽设计，可无缝安装于 5520-48P、5520-48X 等机型，为固定端口交换机提供灵活的接口升级路径，无需更换整机即可扩展功能边界。
- 热插拔模块化设计：采用免工具热插拔结构，运维人员可在交换机不停机的情况下完成模块安装、更换与维护，配合交换机的冗余供电与散热设计，实现 “零中断” 扩展操作，保障金融、政务等关键业务的持续运行。
- 多速率光口扩展：推测配备 4-8 个 10G/25G SFP28 或 40G QSFP + 光口，兼容 1000BASE-X、10GBASE-SR/LR、25GBASE-SR 等多规格光模块，可根据场景需求灵活选择传输速率与距离，适配园区核心链路、数据中心服务器互联等不同带宽场景。
- “速率拆分” 灵活适配：若搭载 QSFP + 端口，支持通过分线模块（如 QSFP+ to 4×SFP+）拆分为 4 个 10G 端口使用，实现 “40G→4×10G” 的带宽拆分，单模块即可兼顾高速上行与多设备万兆接入，大幅提升端口资源利用率。
- 混合端口场景覆盖：部分型号可能集成千兆电口与万兆光口的混合配置，既满足 PC、IP 电话等终端的千兆接入需求，又能通过光口衔接核心网络或存储设备，适配 “接入 - 汇聚” 一体化的中小型网络架构。
Extreme Networks 5520-VIM多功能接口模块 英文资料：
1、 Equipment adaptation and expansion foundation
5520 Series Exclusive Adaptation: Extreme Networks 5520-VIM, as a dedicated expansion module for the 5520 series core switch, precisely matches the modular slot design of the switch and can be seamlessly installed on models such as 5520-48P and 5520-48X, providing a flexible interface upgrade path for fixed port switches and expanding functional boundaries without the need to ｒｅｐｌａｃｅ the entire machine.
Hot swappable modular design: adopting a tool free hot swappable structure, operation and maintenance personnel can complete module installation, replacement, and maintenance without shutting down the switch. Combined with the redundant power supply and heat dissipation design of the switch, it achieves "zero interruption" expansion operation, ensuring the continuous operation of key businesses such as finance and government affairs.
2、 Port type and expansion capability
Multi rate optical port expansion: It is speculated to be equipped with 4-8 10G/25G SFP28 or 40G QSFP+optical ports, compatible with 1000BASE-X, 10GBASE-SR/LR, 25GBASE-SR and other multi specification optical modules. The transmission rate and distance can be flexibly selected according to the needs of the scene, and can adapt to different bandwidth scenarios such as core links in the park and interconnection of data center servers.
Flexible adaptation of "rate splitting": If equipped with QSFP+ports, it supports splitting into 4 10G ports through splitter modules (such as QSFP+to 4 × SFP+), achieving bandwidth splitting from "40G → 4 × 10G". A single module can balance high-speed uplink and multi device 10G access, greatly improving the utilization of port resources.
Hybrid port scenario coverage: Some models may integrate a hybrid configuration of gigabit electrical ports and ten gigabit optical ports, which not only meets the gigabit access needs of terminals such as PCs and IP phones, but also connects to core networks or storage devices through optical ports, adapting to the integrated "access aggregation" small and medium-sized network architecture.

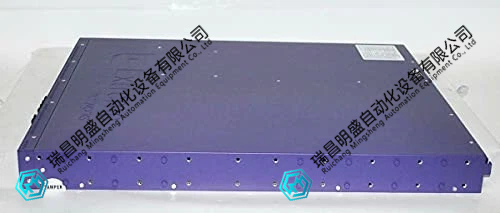

Extreme Networks 5520-VIM多功能接口模块 产品展示
产品视频
