AEG MODICON ZAE105计数器模块
1.产 品 资 料 介 绍：
- 包装机械长度计量控制：对接辊轴编码器，通过 100kHz 高速计数采集脉冲信号，精准换算包装膜、纸张等物料长度，触发切刀机构精准裁切，重复误差≤0.1mm，保障包装规格一致性
- 生产线产量统计：采集输送带红外传感器脉冲信号，支持增量 / 减量计数模式，实时累计产品产量并上传至 MES 系统，支持批次清零功能，满足生产数据追溯需求
- 数控机床主轴转速监测：接收主轴编码器脉冲信号，通过频率换算实时计算转速，超阈值时输出报警信号，5000Vrms 隔离保护抵御机床电磁干扰，保障加工精度
- 物流分拣线包裹计数：对接扫码器、光电传感器，每通道独立计数并区分不同品类货物，支持双向计数功能，配合 Modbus 通信实现分拣效率实时统计，适配高节拍分拣场景
- 电机转速与转向检测：连接电机轴端增量编码器，采集正负边沿脉冲信号，同步监测转速与转向，输出信号反馈至 PLC 实现调速闭环控制，-25℃~+55℃宽温适配工业车间环境
- 自动化仓储堆垛机定位：通过计数堆垛机行走 / 升降轴编码器脉冲，实现货位精准定位，支持外部触发计数功能，定位误差≤0.05mm，提升仓储存取效率
- 印刷机械套准控制：采集印刷滚筒编码器脉冲，与色标传感器信号联动，计算图案偏移量并输出补偿指令，高速计数响应保障套准精度，适配凹印、柔印等工艺
- 矿山设备运行周期统计：对接破碎机、给料机的行程开关脉冲信号，累计设备运行周期与作业次数，支持故障计数报警，光学隔离设计抵御井下电压冲击
- 食品饮料灌装计数：采集灌装阀触发脉冲信号，精准统计每批次灌装数量，支持预设产量自动停机功能，24VDC 输入适配食品车间安全规范，IP20 防护防尘防潮
- 电子元件插件计数：接收插件机吸嘴动作脉冲信号，实时统计插件数量与合格率，支持单脉冲 / 双脉冲计数模式，前置测试接口简化调试，保障电子组装质量
AEG MODICON ZAE105计数器模块 英文资料：
Packaging machinery length measurement control: docking roller shaft encoder, collecting pulse signals through 100kHz high-speed counting, accurately converting the length of packaging film, paper and other materials, triggering the cutting mechanism for precise cutting, with a repetition error of ≤ 0.1mm, ensuring consistency of packaging specifications
Production line output statistics: Collecting infrared sensor pulse signals from conveyor belts, supporting incremental/decremental counting modes, real-time accumulation of product output and uploading to MES system, supporting batch reset function, meeting production data traceability requirements
Monitoring the spindle speed of CNC machine tools: receiving the pulse signal of the spindle encoder, calculating the speed in real time through frequency conversion, outputting an alarm signal when the threshold is exceeded, isolating and protecting against electromagnetic interference from the machine tool at 5000Vrms, and ensuring machining accuracy
Logistics sorting line package counting: docking with barcode scanners and photoelectric sensors, each channel independently counts and distinguishes different categories of goods, supports bidirectional counting function, and cooperates with Modbus communication to achieve real-time sorting efficiency statistics, suitable for high beat sorting scenarios
Motor speed and direction detection: Connect the incremental encoder at the motor shaft end, collect positive and negative edge pulse signals, synchronously monitor the speed and direction, output the signal feedback to the PLC to achieve speed control closed-loop control, and adapt to industrial workshop environment with a wide temperature range of -25 ℃~+55 ℃
Automated warehouse stacker positioning: By counting the encoder pulses of the stacker crane's walking/lifting axis, precise positioning of the cargo position is achieved. It supports external triggering of the counting function, with a positioning error of ≤ 0.05mm, improving storage and retrieval efficiency
Printing machinery registration control: Collecting pulses from the printing drum encoder, linking with the color code sensor signal, calculating the pattern offset and outputting compensation instructions, high-speed counting response ensures registration accuracy, and adapts to processes such as gravure printing and flexographic printing
Mining equipment operation cycle statistics: docking with the stroke switch pulse signals of the crusher and feeder, accumulating the equipment operation cycle and operation times, supporting fault counting alarm, optical isolation design to resist underground voltage impact
Food and beverage filling counting: Collecting pulse signals triggered by filling valves, accurately counting the quantity of each batch of filling, supporting automatic shutdown function for preset output, 24VDC input adapted to food workshop safety regulations, IP20 protection against dust and moisture
Electronic component plug-in counting: Receive the suction nozzle action pulse signal of the plug-in machine, real-time count the number and qualification rate of plug-ins, support single pulse/double pulse counting mode, simplify the debugging of the pre testing interface, and ensure the quality of electronic assembly

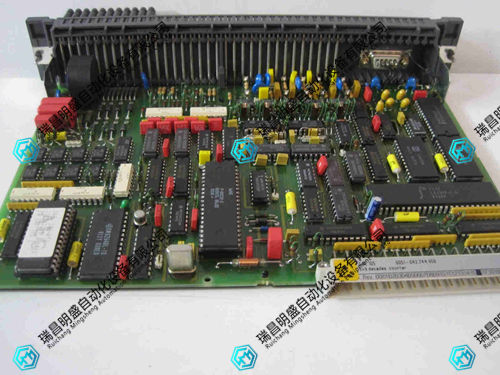

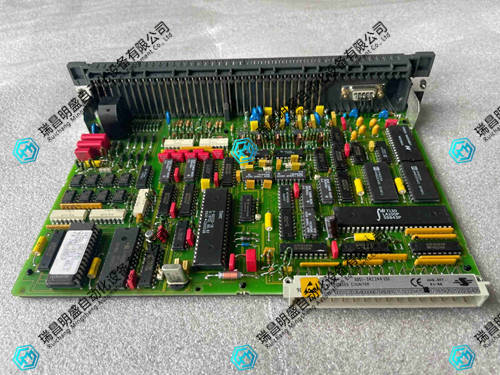

AEG MODICON ZAE105计数器模块 产品展示
产品视频
