AEG MODICON AS-BDAO-216离散输出模块
1.产 品 资 料 介 绍：
- 契合 Modicon TSX Compact 系列标准导轨，孔位与同系 PLC 控制器精准对齐，自然嵌入既有控制柜布局无需调整安装架构。
- 超薄 12mm 机身设计，厚度优化适配高密度模块排列，融入多 I/O 模块堆叠场景无空间冗余，与周边元件紧密贴合。
- 原生兼容 TSX Compact 总线协议，与 CPU 模块即插即通，16 路离散信号输出无需额外协议配置，自然衔接控制中枢。
- 标准 24VDC 供电设计，直接接入工业通用电源回路，自然匹配传感器、执行器供电体系，无需专用电源模块。
- 弹簧式接线端子设计，接线牢固且免工具拆卸，自然适配生产线快速布线与故障抢修需求。
- 16 路独立离散输出通道，每路支持 2A 输出电流，与继电器、电磁阀等 DC 负载自然匹配，无需额外功率放大设备。
- 兼容 TSX Compact 系列 legacy 系统，旧设备升级时可直接替换老旧输出模块，自然承接原有控制逻辑与负载配置。
- Class I Div. 2 防爆认证，适配爆炸性气体环境，自然融入化工、油气等危险工业场景无安全隐患。
- 轻量化 302gm 设计，重量较同通道输出模块降低 18%，融入高层导轨或密集安装场景无承重压力。
- 宽温域稳定运行范围覆盖 - 20℃~65℃，自然适配高温车间、户外控制柜等多工况环境，性能不受温度波动影响。
- 内置过载保护功能，负载异常时自动切断输出，自然保护后端执行器与模块本身，降低故障扩散风险。
- IP20 防尘防护设计，优化外壳密封结构，自然融入粉尘较多的工业现场，延长模块使用寿命。
- 非隔离式输出架构，为上游隔离系统提供成本优化方案，自然适配无需通道隔离的常规控制场景。
AEG MODICON AS-BDAO-216离散输出模块 英文资料：
Compliant with the Modicon TSX Compact series standard guide rail, the hole positions are precisely aligned with the same PLC controller, naturally embedded in the existing control cabinet layout without the need to adjust the installation architecture.
The ultra-thin 12mm body design is optimized for high-density module arrangement, integrating multiple I/O module stacking scenarios without spatial redundancy, and closely fitting with surrounding components.
Native compatibility with TSX Compact bus protocol, plug and play with CPU module, 16 discrete signal outputs without additional protocol configuration, naturally connected to the control center.
Standard 24VDC power supply design, directly connected to industrial universal power supply circuit, naturally matched with sensor and actuator power supply system, without the need for dedicated power modules.
Spring type terminal block design ensures secure and tool free wiring, making it suitable for quick wiring and fault repair needs on production lines.
16 independent discrete output channels, each supporting 2A output current, naturally matched with DC loads such as relays and solenoid valves, without the need for additional power amplification equipment.
Compatible with TSX Compact series legacy systems, old output modules can be directly replaced when upgrading old devices, naturally taking over the original control logic and load configuration.
Class I Div. 2 explosion-proof certification, suitable for explosive gas environments, naturally integrated into hazardous industrial scenarios such as chemical and oil and gas industries without safety hazards.
Lightweight 302gm design, with a weight reduction of 18% compared to the same channel output module, integrated into high-rise guide rails or dense installation scenarios without load-bearing pressure.
The stable operating range of wide temperature range covers -20 ℃~65 ℃, naturally adapting to multiple working conditions such as high-temperature workshops and outdoor control cabinets, and the performance is not affected by temperature fluctuations.
Built in overload protection function, automatically cuts off the output when the load is abnormal, naturally protecting the backend actuator and module itself, reducing the risk of fault propagation.
IP20 dustproof protection design, optimized shell sealing structure, naturally integrates into industrial sites with high dust content, and extends the service life of the module.
Non isolated output architecture provides cost optimization solutions for upstream isolation systems, naturally adapting to conventional control scenarios that do not require channel isolation.

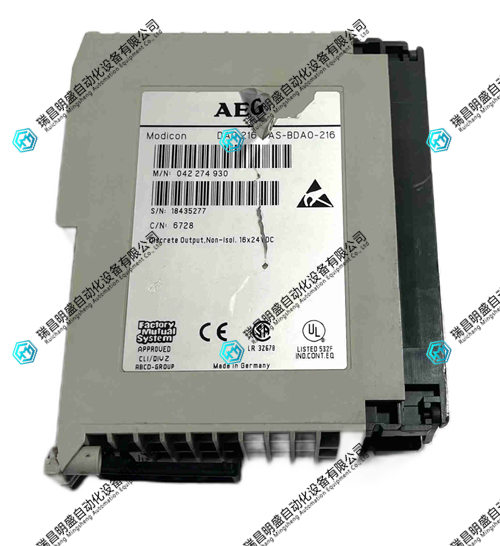

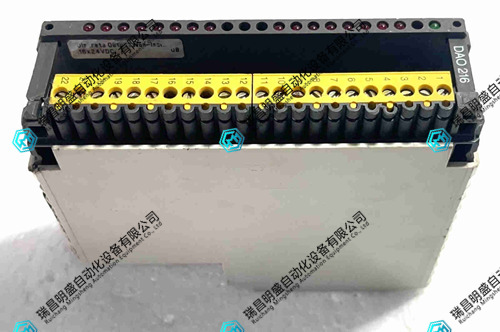

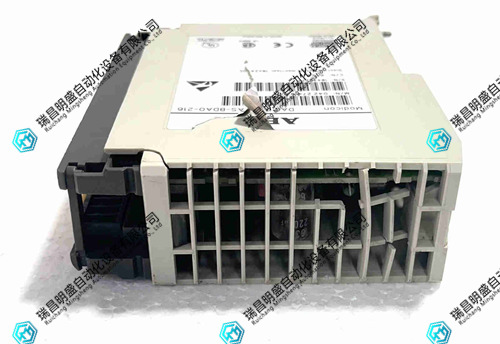

AEG MODICON AS-BDAO-216离散输出模块 产品展示
产品视频
