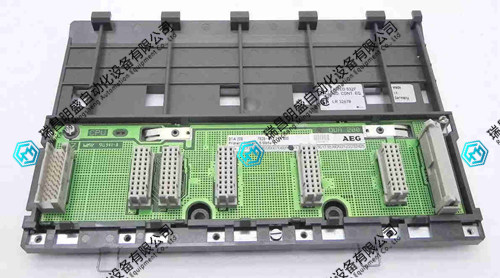

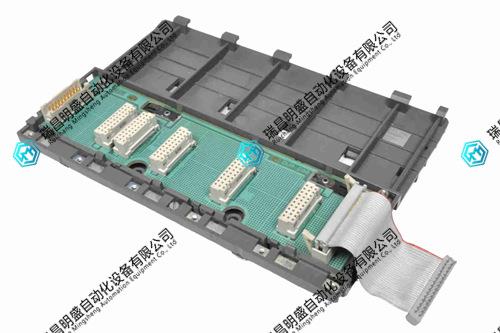

AEG MODICON 7628-042.244背板
1.产 品 资 料 介 绍：
- AEG MODICON 7628-042.244 是施耐德旗下的工业背板（又称机架 / 母板），专为 Modicon 系列模块互联设计。
- 作为系统物理与电气连接核心，它为 I/O 模块、处理器模块提供稳固安装基座与信号传输通道。
- 采用 5 槽标准设计，可同时搭载 5 个功能模块，适配中小型自动化系统的配置需求。
- 兼容 Modicon DTA 系列（如 DTA200/DTA201/DTA202），支持主从机架（Primary/Secondary Rack）灵活配置。
- 7628-042.244 内置高速背板总线，实现模块间数据实时交互，保障控制指令与采集信号无延迟传输。
- 提供统一电源分配功能，为挂载模块稳定供电，简化系统布线，降低电源故障风险。
- 具备工业级电气隔离设计，抵御电磁干扰，保障复杂工况下模块间通信与供电稳定。
- 适配 24V DC 工业常用供电环境，与 Modicon 系列模块供电需求完美匹配，兼容性无需额外调试。
- 采用标准机架式安装，结构稳固，能承受工业现场振动冲击，安装拆卸便捷高效。
- 支持热插拔模块安装，维护时无需停机更换模块，减少系统停机损失。
- 工作温度适应范围广，可在高低温、多粉尘工业环境中长期稳定运行，可靠性突出。
- 兼容 MODBUS 等工业通用协议，无缝衔接 PLC、HMI 及各类功能模块，系统集成难度低。
- 在化工、电力、冶金等行业，常用于自动化控制系统的模块互联与信号路由核心环节。
- 模块化机架设计支持系统扩容，可通过主从机架联动扩展插槽数量，满足业务增长需求。
- 7628-042.244 经长期工业场景验证，结构耐用、性能稳定，是 Modicon 系统搭建的核心基础组件。
AEG MODICON 7628-042.244背板 英文资料：
AEG MODICON 7628-042.244 is an industrial backplane (also known as rack/motherboard) under Schneider, designed specifically for Modicon series module interconnection.
As the physical and electrical connection core of the system, it provides a stable installation base and signal transmission channel for I/O modules and processor modules.
Adopting a 5-slot standard design, it can simultaneously carry 5 functional modules, adapting to the configuration requirements of small and medium-sized automation systems.
Compatible with Modicon DTA series (such as DTA200/DTA201/DTA202), supporting flexible configuration of primary/secondary racks.
7628-042.244 has a built-in high-speed backplane bus, which enables real-time data exchange between modules and ensures the transmission of control instructions and acquisition signals without delay.
Provide unified power distribution function to provide stable power supply for mounting modules, simplify system wiring, and reduce the risk of power failure.
Equipped with industrial grade electrical isolation design, it can resist electromagnetic interference and ensure stable communication and power supply between modules under complex working conditions.
Suitable for 24V DC industrial common power supply environment, perfectly matching the power supply requirements of Modicon series modules, compatibility does not require additional debugging.
Adopting standard rack mounted installation, the structure is stable and can withstand industrial site vibration and impact. Installation and disassembly are convenient and efficient.
Support hot swappable module installation, no need to shut down and ｒｅｐｌａｃｅ modules during maintenance, reducing system downtime losses.
The working temperature has a wide adaptability range and can operate stably for a long time in high and low temperature, high dust industrial environments, with outstanding reliability.
Compatible with industrial universal protocols such as MODBUS, seamlessly connecting PLC, HMI, and various functional modules, with low system integration difficulty.
In industries such as chemical, power, and metallurgy, module interconnection and signal routing are commonly used as core components in automation control systems.
Modular rack design supports system expansion and can expand the number of slots through master-slave rack linkage to meet business growth needs.
7628-042.244 has been validated in long-term industrial scenarios, with a durable structure and stable performance, and is the core foundational component for building the Modicon system.
