1.产 品 资 料 介 绍：
- REXROTH VT-HNC100-1-22/W-08-0-0 是德国博世力士乐 VT-HNC100 系列可编程数字轴控制器，专为电液混合驱动系统设计。
- 支持 1-4 轴独立控制，可实现机电与电液驱动的闭环控制，适配多工况精密运动需求。
- 搭载 23 位高分辨率编码器反馈，重复定位精度达 ±0.001mm，满足微米级控制场景。
- 电流环刷新周期低至 62.5μs，速度环响应频率 3kHz，能瞬间捕捉负载突变，动态响应迅猛。
- 内置 PID 控制器与自适应补偿算法，可自动调整输出参数，优化控制过程稳定性。
- 支持 PROFIBUS DP、Modbus RTU 等工业总线，还兼容 RS485 通讯，便于对接 MES/ERP 系统。
- 具备三个可编程跳变频率段，可规避机械共振风险，避免设备运行中的机械损坏。
- 集成过流、超温、相不平衡等多重保护功能，通过 SIL3 认证的双通道扭矩关断设计，安全冗余性高。
- REXROTH VT-HNC100-1-22/W-08-0-0 采用模块化结构，故障单元可快速识别更换，减少停机时间。
- 适配同品牌 MDD 系列伺服电机及液压执行元件，系统兼容性强，集成成本更低。
- 耐受 - 40℃~85℃宽温度范围，抗振动、抗电磁干扰设计，适配恶劣工业环境。
- 支持位置、速度、转矩三种基础控制模式，可拓展插补、同步控制等高级功能。
- 配备直观操作界面与 LED 状态指示，参数配置便捷，支持 PC 端 IndraWorks 软件仿真调试。
- 平均无故障时间（MTBF）超 10 万小时，核心部件免维护周期达 5 年，运行可靠性出色。
- 广泛应用于精密机床、机器人、汽车焊装线等场景，尤其适配需要多轴协同的高端制造设备。
VT-HNC100-1-22/W-08-0-0数字轴控制器 英文资料：
REXROTH VT-HNC100-1-22/W-08-0-0 is a German Bosch Rexroth VT-HNC100 series programmable digital axis controller designed specifically for electro-hydraulic hybrid drive systems.
Supporting independent control of 1-4 axes, it can achieve closed-loop control of electromechanical and electro-hydraulic drive, and adapt to the precise motion requirements of multiple working conditions.
Equipped with a 23 bit high-resolution encoder feedback, the repeated positioning accuracy reaches ± 0.001mm, meeting the requirements of micrometer level control scenarios.
The refresh cycle of the current loop is as low as 62.5 μ s, and the response frequency of the speed loop is 3kHz, which can instantly capture load changes and dynamically respond rapidly.
Built in PID controller and adaptive compensation algorithm, which can automatically adjust output parameters and optimize control process stability.
Supports industrial buses such as PROFIBUS DP and Modbus RTU, and is also compatible with RS485 communication, making it easy to interface with MES/ERP systems.
Equipped with three programmable jump frequency bands, it can avoid the risk of mechanical resonance and prevent mechanical damage during equipment operation.
Integrated with multiple protection functions such as overcurrent, overtemperature, and phase imbalance, the dual channel torque cutoff design certified by SIL3 ensures high safety redundancy.
REXROTH VT-HNC100-1-22/W-08-0-0 adopts a modular structure, which enables quick identification and replacement of faulty units, reducing downtime.
Compatible with MDD series servo motors and hydraulic actuators of the same brand, with strong system compatibility and lower integration costs.
Resistant to a wide temperature range of -40 ℃~85 ℃, with anti vibration and anti electromagnetic interference design, suitable for harsh industrial environments.
Supports three basic control modes: position, speed, and torque, and can expand advanced functions such as interpolation and synchronous control.
Equipped with an intuitive operating interface and LED status indicators, convenient parameter configuration, and support for PC based IndraWorks software simulation debugging.
The mean time between failures (MTBF) exceeds 100000 hours, the maintenance free cycle of core components reaches 5 years, and the operational reliability is excellent.
Widely used in precision machine tools, robots, automotive welding lines and other scenarios, especially suitable for high-end manufacturing equipment that requires multi axis collaboration.

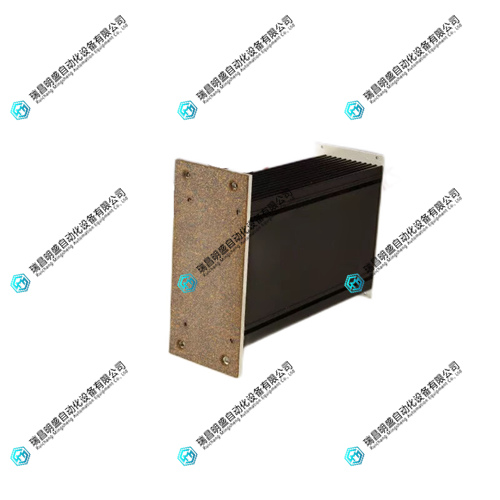

VT-HNC100-1-22/W-08-0-0数字轴控制器 产品展示
产品视频
