0GH-IP161分析输入模块

0GH-IP161分析输入模块

1.产 品 资 料 介 绍：

1. B&R 0GH-IP161 是奥地利贝加莱（B&R）2005 SYSTEMS 系列可编程分析输入模块，专为工业自动化信号采集与分析场景设计。
2. 支持 12 路数字量输入通道，适配 24VDC 标准工业信号，采用灌电流（sink）输入方式，信号接收稳定可靠。
3. 配备 6 路 14 位高精度模拟量输入通道，测量范围覆盖 ±10V，能精准采集传感器、变送器等设备的模拟信号。
4. 集成 6 路 12 位模拟量输出通道，同样支持 ±10V 输出，可直接驱动执行器或反馈控制信号，实现闭环控制。
5. 内置 850KB SRAM 与 1.5MB FlashPROM 存储单元，支持数据本地缓存与程序离线运行，保障信号处理连续性。
6. 标配 RS232 串行通讯接口与电气隔离式 CAN 总线接口，支持网络互联，便于与 PLC、上位机无缝对接。
7. 防护等级符合工业标准，适配控制柜内安装，能耐受工业现场粉尘干扰，保护内部电路稳定运行。
8. B&R 0GH-IP161 数字量输入响应时间短，模拟量采集刷新率高，可满足高频次信号检测与实时控制需求。
9. 支持通道独立配置，可根据现场需求灵活设定输入信号类型、滤波参数，适配多元传感器接入。
10. 内置过压、过流保护机制，针对模拟量通道设置限流保护，全方位守护模块与前端设备安全。
11. 适配 B&R Automation Studio 编程软件，支持图形化组态与参数化设置，调试操作便捷高效。
12. 采用标准化模块设计，支持 DIN 导轨安装，接线端子定义清晰，安装拆卸简单，后期维护成本低。
13. 工作温度范围适配工业场景常规需求，能稳定运行于多数厂房、机房等环境，环境适应性强。
14. 平均无故障时间（MTBF）表现优异，核心元件选型严苛，长期运行可靠性突出，减少系统停机损失。
15. 广泛应用于自动化生产线、过程控制系统、智能检测设备等场景，尤其适配需要多类型信号同步采集的工业场景。

0GH-IP161分析输入模块 英文资料：

B&R 0GH-IP161 is a programmable analysis input module from the B&R 2005 SYSTEMS series in Austria, designed specifically for industrial automation signal acquisition and analysis scenarios.

Supports 12 digital input channels, compatible with 24VDC standard industrial signals, using sink input method for stable and reliable signal reception.

Equipped with 6 high-precision 14 bit analog input channels, the measurement range covers ± 10V, and can accurately collect analog signals from sensors, transmitters, and other devices.

Integrated 6 channels of 12 bit analog output, also supporting ± 10V output, can directly drive actuators or feedback control signals, achieving closed-loop control.

Built in 850KB SRAM and 1.5MB FlashPROM storage unit, supporting local data caching and offline program operation, ensuring signal processing continuity.

Standard RS232 serial communication interface and electrically isolated CAN bus interface, supporting network interconnection for seamless integration with PLC and upper computer.

The protection level meets industrial standards, is suitable for installation in control cabinets, can withstand dust interference in industrial sites, and protects the stable operation of internal circuits.

B&R 0GH-IP161 has a short response time for digital input and a high refresh rate for analog acquisition, which can meet the requirements of high-frequency signal detection and real-time control.

Supporting independent channel configuration, the input signal type and filtering parameters can be flexibly set according to on-site needs, and adapted to multiple sensor access.

Built in overvoltage and overcurrent protection mechanisms, set current limiting protection for analog channels, and comprehensively safeguard the safety of modules and front-end devices.

Compatible with B&R Automation Studio programming software, supports graphical configuration and parametric settings, and has convenient and efficient debugging operations.

Adopting standardized module design, supporting DIN rail installation, with clear definition of wiring terminals, simple installation and disassembly, and low maintenance costs in the later stage.

The working temperature range is suitable for the conventional requirements of industrial scenarios, and can operate stably in most factory buildings, computer rooms, and other environments, with strong environmental adaptability.

Excellent mean time between failures (MTBF) performance, strict selection of core components, outstanding long-term operational reliability, and reduced system downtime losses.

Widely used in automated production lines, process control systems, intelligent detection equipment and other scenarios, especially suitable for industrial scenarios that require synchronous acquisition of multiple types of signals.

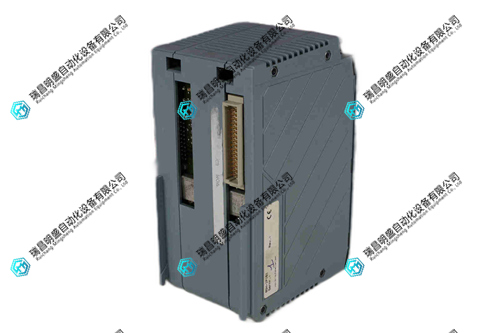

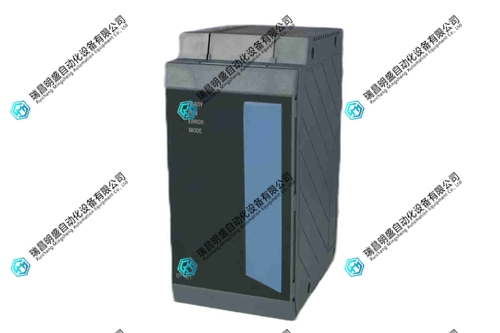

0GH-IP161分析输入模块 产品展示
