1.产 品 资 料 介 绍：
- SGMG-05V2AB 搭载高分辨率光学检测模块，定位精度达 ±3μm，满足精密控制需求
- 适配 200V 三相伺服系统，与 450W 级别伺服电机无缝兼容，信号传输精准
- SGMG-05V2AB 输出 RS422 差分信号，抗干扰能力强，复杂工业环境稳定传输
- 响应频率高达 1MHz，适配 3000rpm 以上高速电机，动态追踪无延迟
- 防护等级达 IP65，防尘防水溅设计，适配潮湿多尘工业现场
- SGMG-05V2AB 采用增量式编码结构，脉冲信号稳定，位置反馈实时性强
- 外壳采用耐腐蚀合金材质，表面阳极氧化处理，抗盐雾侵蚀能力优异
- 轴径适配 14mm 标准伺服电机输出轴，安装定位精准，拆装便捷
- SGMG-05V2AB 工作电压支持 24V 直流供电，功耗低至 1.2W，节能性突出
- 具备信号故障自诊断功能，断线、短路异常及时反馈，提升系统可靠性
- 适配安川 Sigma 系列伺服驱动器，通信协议兼容性强，集成成本低
- SGMG-05V2AB 工作温度范围 - 10~60℃，宽温适配多地域工业场景
- 编码精度长期稳定性优异，年漂移量≤±0.5μm，减少校准频次
- 支持正反转双向定位检测，适配往复运动设备，方向识别无偏差
- SGMG-05V2AB 通过 CE、VDE 国际认证，合规性无忧，适配全球工业应用
SGMG-05V2AB伺服编码器 英文资料：
SGMG-05V2AB is equipped with a high-resolution optical detection module, with a positioning accuracy of ± 3 μ m, meeting the requirements of precision control
Suitable for 200V three-phase servo system, seamlessly compatible with 450W level servo motor, with precise signal transmission
SGMG-05V2AB outputs RS422 differential signal, with strong anti-interference ability and stable transmission in complex industrial environments
Response frequency up to 1MHz, suitable for high-speed motors above 3000rpm, dynamic tracking without delay
Protection level up to IP65, dustproof and waterproof splash design, suitable for humid and dusty industrial sites
SGMG-05V2AB adopts an incremental encoding structure, with stable pulse signals and strong real-time position feedback
The shell is made of corrosion-resistant alloy material, with surface anodizing treatment, and excellent resistance to salt spray erosion
Shaft diameter compatible with 14mm standard servo motor output shaft, precise installation and positioning, easy disassembly and assembly
SGMG-05V2AB supports 24V DC power supply and has a power consumption as low as 1.2W, with outstanding energy-saving performance
Equipped with signal fault self diagnosis function, timely feedback of wire breakage and short circuit abnormalities, improving system reliability
Compatible with Yaskawa Sigma series servo drives, with strong communication protocol compatibility and low integration cost
SGMG-05V2AB operates within a temperature range of -10~60 ℃, with a wide temperature range suitable for industrial scenarios in multiple regions
Excellent long-term stability of coding accuracy, with an annual drift of ≤± 0.5 μ m, reducing calibration frequency
Supports bidirectional positioning detection in both forward and reverse directions, compatible with reciprocating motion equipment, and has no deviation in direction recognition
SGMG-05V2AB has passed CE and VDE international certifications, ensuring worry free compliance and suitability for global industrial applications

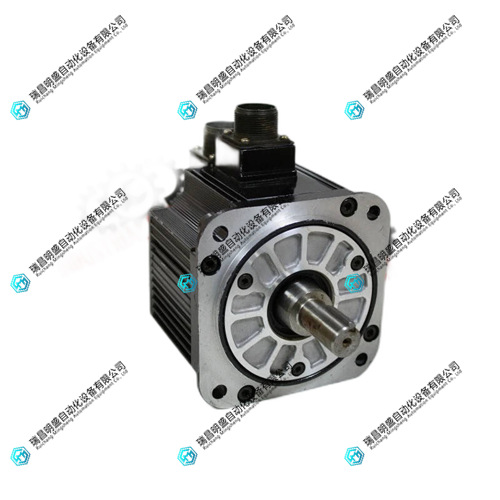

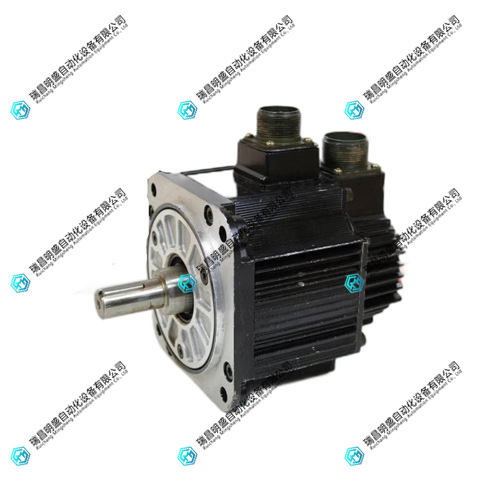

SGMG-05V2AB伺服编码器 产品展示
