1.产 品 资 料 介 绍：
- 支持 8 通道差分输入，适配 4-20mA/0-10V 标准信号，测量精度 ±0.1%（满量程）
- 采样周期 10ms / 通道，支持信号滤波功能，抗干扰能力强
- 兼容 A1SX41/A2ASCPU 等 A 系列主机，支持模块地址设定与参数自配置
- 供电：DC5V（0.2A），依赖 PLC 系统电源；尺寸 130×34.5×93.6mm，重量 0.17kg
- 接口：34 针插拔式连接器，输入阻抗≥1MΩ（电压型）/250Ω（电流型）
- 环境：工作温度 0-55℃，相对湿度≤90%（无结露），光耦合器绝缘设计
- 场景：工业自动化生产线、过程控制、传感器数据采集（温度 / 压力 / 流量）
- 安装：适配 A 系列 PLC 底座单元，线缆屏蔽敷设，远离强电磁干扰源
- 兼容：替代型号 A68DAI，配套接线端子台 A6TBXY36，校准工具 A6CAL
A68DAI-S1可编程控制器 英文资料：
A68DAI-S1 core positioning
The Mitsubishi MELSEC-A series analog input module is designed specifically for industrial field analog signal acquisition, enabling data exchange between sensors and PLC systems. It is a key signal conversion component in automation control and compatible with Mitsubishi A-series PLC hosts.
Core performance
Supports 8-channel differential input, compatible with 4-20mA/0-10V standard signals, measurement accuracy ± 0.1% (full range)
Sampling period of 10ms/channel, supporting signal filtering function, strong anti-interference ability
Compatible with A-series hosts such as A1SX41/A2ASCPU, supporting module address setting and parameter self configuration
Key specifications
Power supply: DC5V (0.2A), dependent on PLC system power supply; Size 130 × 34.5 × 93.6mm, weight 0.17kg
Interface: 34 pin plug-in connector, input impedance ≥ 1M Ω (voltage type)/250 Ω (current type)
Environment: Working temperature 0-55 ℃, relative humidity ≤ 90% (no condensation), optocoupler insulation design
Application and Practice
Scenario: Industrial automation production line, process control, sensor data acquisition (temperature/pressure/flow)
Installation: Suitable for A-series PLC base unit, cable shielding and laying, away from strong electromagnetic interference sources
Compatibility: Alternative model A68DAI, matching terminal block A6TBXY36, calibration tool A6CAL

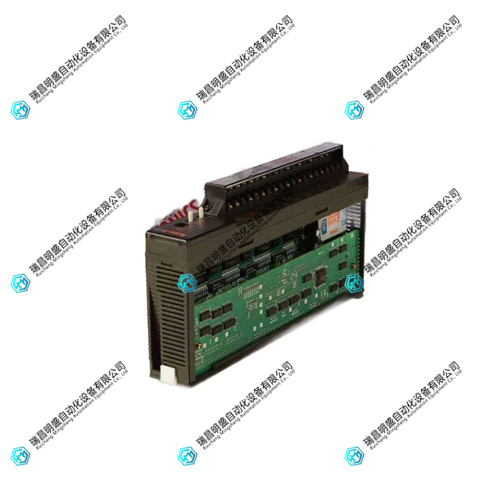

A68DAI-S1可编程控制器 产品展示
