04156-60002处理器模块

04156-60002处理器模块

1.产 品 资 料 介 绍：

04156-60002处理器模块产品特点

- 集成600V-15A三相IGBT逆变器，适配交流感应/BLDC/PMSM电机控制

- 内置优化型栅极驱动电路，最小化电磁干扰与能量损耗

- 通过UL认证（E209204），符合UL 1557工业安全标准

- 具备欠压锁定、过流关断等多重保护机制

- 陶瓷基板设计，热阻低，散热性能优异

- 集成高速高压隔离HVIC，单路供电简化设计

- 配备NTC热敏电阻，实时监测温度规避过热风险

- 低压侧独立开路发射极引脚，支持三相电流精准检测

- 隔离等级达2000Vrms/分钟，抗干扰能力强

- 兼容3.3V/5V逻辑电平，信号响应稳定

- 优化5kHz开关频率，兼顾控制精度与能耗平衡

- 模块化集成设计，减少外围元件，提升可靠性

- 存储温度-40~125℃，适应恶劣工业温区环境

- 故障信号精准反馈，可区分欠压与短路故障

- 操作逻辑简洁，支持现场参数快速配置

04156-60002处理器模块 英文资料：

04156-60002 Processor Module Product Features

-Integrated 600V-15A three-phase IGBT inverter, compatible with AC induction/BLDC/PMSM motor control

-Built in optimized gate drive circuit to minimize electromagnetic interference and energy loss

-Certified by UL (E209204), compliant with UL 1557 industrial safety standard

-Equipped with multiple protection mechanisms such as undervoltage locking and overcurrent shutdown

-Ceramic substrate design, low thermal resistance, excellent heat dissipation performance

-Integrated high-speed high-voltage isolation HVIC, simplified design for single power supply

-Equipped with NTC thermistor, real-time temperature monitoring to avoid overheating risk

-Low voltage side independent open emitter pin, supporting precise detection of three-phase current

-Isolation level up to 2000Vrms/minute, strong anti-interference ability

-Compatible with 3.3V/5V logic levels, stable signal response

-Optimize the 5kHz switching frequency to balance control accuracy and energy consumption

-Modular integrated design reduces peripheral components and improves reliability

-Storage temperature -40~125 ℃, suitable for harsh industrial temperature zones

-Accurate feedback of fault signals, capable of distinguishing between undervoltage and short-circuit faults

-The operation logic is concise and supports quick configuration of on-site parameters

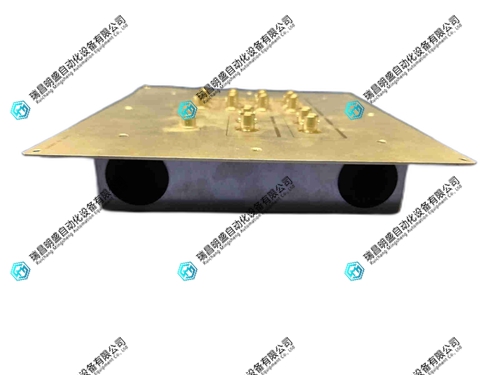

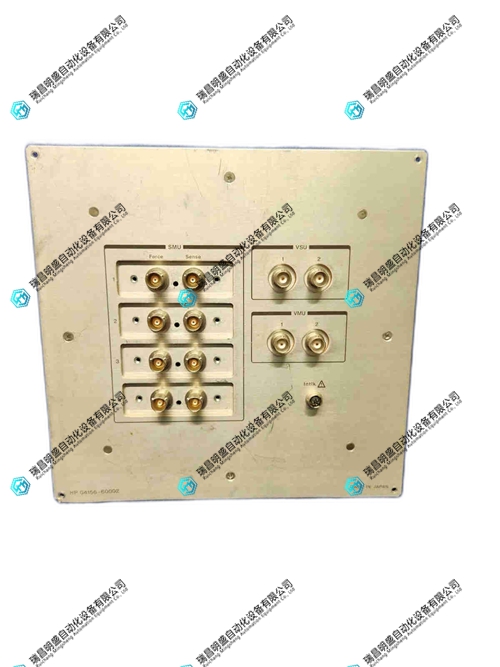

04156-60002处理器模块 产品展示

产品视频
