810-046015-010印刷电路板

810-046015-010印刷电路板

1.产 品 资 料 介 绍：

810-046015-010印刷电路板产品特点

- 采用FR4基材制造，Tg值≥135℃，耐热与机械稳定性优异

- 符合IPC-A-600G Class 2标准，满足工业级制造规范

- 支持RoHS环保标准，绿色无铅设计，适配环保生产需求

- 最小线宽/线距0.1mm（4mil），布线密度高，适配精密布局

- 成品板厚度0.5-3.2mm可选，厚度误差±10%，尺寸精度高

- 无铅喷锡表面处理，焊接性能优，抗氧化性强

- 最大板尺寸265×430mm，适配多种工业设备安装

- 最小成品孔径0.2mm，支持精密钻孔，适配小型元器件

- 尺寸稳定性优异，高温环境下形变率低

- 支持BGA、盲埋孔工艺，适配复杂电路集成

- 绝缘电阻≥800MΩ，耐压性强，电气性能稳定

- 绿色阻焊+白色丝印，标识清晰，便于维护检修

- 经飞针测试与全检，无开路、短路等质量问题

- 工作温度-25~+85℃，适应工业恶劣环境

- 兼容多种设计文件格式，适配主流PCB设计流程

810-046015-010印刷电路板 英文资料：

810-046015-010 Printed Circuit Board Product Features

-Made with FR4 substrate, Tg value ≥ 135 ℃, excellent heat resistance and mechanical stability

-Complies with IPC-A-600G Class 2 standard and meets industrial manufacturing specifications

-Support RoHS environmental standards, green lead-free design, and adapt to environmental production needs

-Minimum line width/spacing of 0.1mm (4mil), high wiring density, suitable for precision layout

-Finished board thickness of 0.5-3.2mm is optional, with a thickness error of ± 10% and high dimensional accuracy

-Lead free tin spray surface treatment, excellent soldering performance, strong oxidation resistance

-The maximum board size is 265 × 430mm, suitable for installation in various industrial equipment

-Minimum finished aperture of 0.2mm, supports precision drilling, suitable for small components

-Excellent dimensional stability, low deformation rate under high temperature environment

-Support BGA and blind buried hole technology, suitable for complex circuit integration

-Insulation resistance ≥ 800M Ω, strong voltage resistance, stable electrical performance

-Green solder mask+white silk screen, clear identification, easy to maintain and repair

-After flying needle testing and full inspection, there are no quality issues such as open circuit or short circuit

-Working temperature -25~+85 ℃, suitable for harsh industrial environments

-Compatible with multiple design file formats and compatible with mainstream PCB design processes

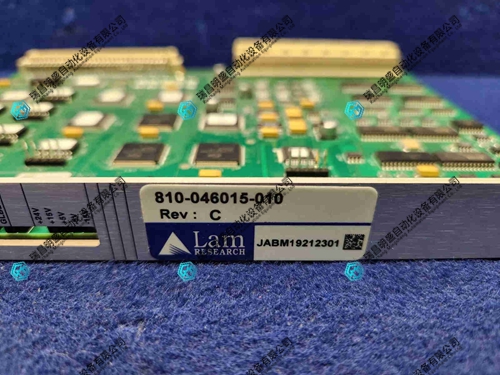

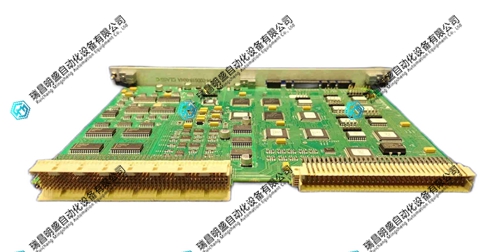

810-046015-010印刷电路板 产品展示
