1.产 品 资 料 介 绍：

EL3773模拟网络模块产品特点

1. 专注三相电力监测，支持500VAC三相电压、1AAC电流实时采集，功能针对性强。

2. 具备多参数综合分析能力，可精准计算有功功率、功率因数、能源消耗等关键电力指标。

3. 高速数据采集性能优异，每100μs完成一次采集，捕捉电力参数动态变化更及时。

4. 支持最高50次谐波分析，配合TwinCAT软件可实现频谱瀑布图显示，助力电机故障预判。

5. 原生支持EtherCAT总线协议，通信响应迅速，可无缝集成至倍福自动化系统。

6. 采用500V DC电气隔离设计，有效阻断共模干扰，保障信号采集的保真度与稳定性。

7. 符合IEC 61131-2 Type3认证标准，差分输入结构，抗干扰能力适配复杂工业环境。

8. 内置断线检测功能，可实时监测信号链路状态，异常时快速反馈，降低系统故障风险。

9. 集成过载保护机制，当监测参数超出安全阈值时自动触发保护，保障模块与后端设备安全。

10. 配备LED状态指示灯，直观反馈模块运行与故障情况，便于现场快速排查问题。

11. 工业级环境适应性，工作温度覆盖-25℃至+60℃，耐受5g@10-500Hz振动，适配恶劣工况。

12. 模块化紧凑结构设计，支持标准DIN导轨安装，节省控制柜空间，部署便捷高效。

13. 可与EL3702等模拟量模块协同工作，构建分布式电力监控网络，适配大规模工业场景。

14. 高可靠性元器件选型，制造工艺严苛，平均无故障时间（MTBF）长，运行稳定可靠。

15. 支持参数远程读取与配置，适配工业4.0智能制造需求，提升能源管理运维效率。

EL3773模拟网络模块 英文资料：

EL3773 Analog Network Module Product Features

1. Focus on three-phase power monitoring, support real-time collection of 500VAC three-phase voltage and 1AAC current, with strong targeted functionality.

2. Possess the ability to comprehensively analyze multiple parameters and accurately calculate key power indicators such as active power, power factor, and energy consumption.

3. Excellent high-speed data acquisition performance, completing data acquisition every 100 μ s and capturing dynamic changes in power parameters in a more timely manner.

4. Supports up to 50th harmonic analysis, and with the help of TwinCAT software, can achieve spectrum waterfall display, assisting in motor fault prediction.

5. Native support for EtherCAT bus protocol, fast communication response, and seamless integration into Beifu automation system.

6. Adopting a 500V DC electrical isolation design, effectively blocking common mode interference and ensuring the fidelity and stability of signal acquisition.

7. Compliant with IEC 61131-2 Type3 certification standard, differential input structure, anti-interference ability suitable for complex industrial environments.

8. Built in wire breakage detection function, which can monitor the status of the signal link in real time and provide quick feedback in case of abnormalities, reducing the risk of system failure.

9. Integrated overload protection mechanism, which automatically triggers protection when monitoring parameters exceed the safety threshold, ensuring the safety of the module and backend devices.

10. Equipped with LED status indicator lights, providing intuitive feedback on module operation and fault conditions, facilitating quick on-site troubleshooting.

11. Industrial grade environmental adaptability, working temperature coverage of -25 ℃ to+60 ℃, tolerance 5g@10-500Hz Vibration, suitable for harsh working conditions.

12. Modular compact structure design, supports standard DIN rail installation, saves control cabinet space, and is easy and efficient to deploy.

13. It can work together with analog modules such as EL3702 to build a distributed power monitoring network that is suitable for large-scale industrial scenarios.

14. High reliability component selection, rigorous manufacturing process, long mean time between failures (MTBF), stable and reliable operation.

15. Support remote parameter reading and configuration, adapt to the requirements of Industry 4.0 intelligent manufacturing, and improve energy management and operation efficiency.

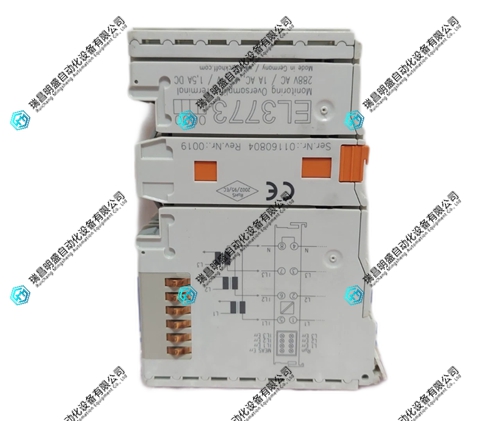

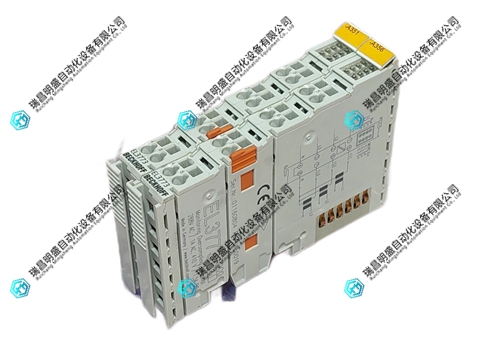

EL3773模拟网络模块 产品展示
