1.产 品 资 料 介 绍：

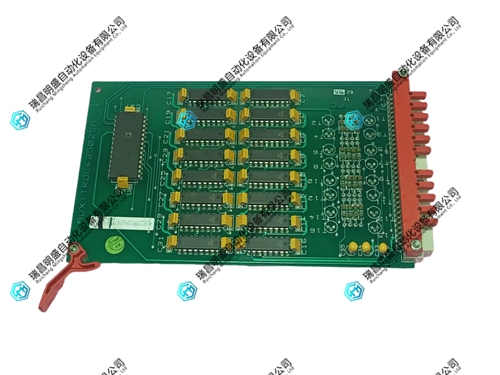

435025A电路板产品特点
1. 采用高品质FR-4环氧玻璃布基材，玻璃化温度（Tg）≥150℃，具备优异的耐高温性与力学稳定性，适配工业复杂工况。
2. 采用多层布线结构设计，布线密度高，可在有限空间内实现多元器件高效互连，支撑复杂电路功能集成。
3. 高精度线路制作工艺，最小线宽/间距控制精准，信号传输路径规整，保障高频场景下信号传输完整性。
4. 采用化学沉金表面处理工艺，触点抗氧化、耐腐蚀性能优异，焊接可靠性高，延长产品存储与使用寿命。
5. 独立电源层与接地层分离设计，配合阻抗控制技术，阻抗公差≤±10%，有效降低信号串扰与电磁干扰。
6. 金属化孔工艺成熟，孔壁镀铜均匀且厚度达标，导通性能优异，层间信号传输损耗低，保障供电稳定性。
7. 严格控制机械加工精度，外形及定位孔公差≤±0.2mm，确保与其他部件精准适配安装。
8. 采用对称压合工艺，板材平整度高，翘曲度＜2%，避免因形变影响元器件贴片精度与装配稳定性。
9. 符合RoHS 2.0环保标准，采用无卤材料与环保工艺，燃烧无有毒气体释放，满足绿色生产与应用要求。
10. 经过严苛的环境可靠性测试，具备良好的抗潮湿、抗振动性能，可在-40℃至+120℃宽温范围稳定运行。
11. 兼容自动化贴片与回流焊工艺，可实现大批量标准化生产，保障产品一致性与生产效率。
12. 板边采用圆角倒角处理，无锋利边缘，装配过程中可避免人员划伤与元器件损伤，提升操作安全性。
13. 预留充足的测试点与调试接口，便于生产过程中的性能检测与后期故障排查，降低运维成本。
14. 具备优异的电气绝缘性能，介电常数稳定，爬电距离充足，避免高压场景下的绝缘失效风险。
15. 广泛应用于工业控制设备、通信基础设施、智能测控系统等领域，作为核心电路载体支撑设备长期稳定运行。
435025A电路板 英文资料：
435025A Circuit Board Product Features
1. Using high-quality FR-4 epoxy glass cloth substrate, with a glass transition temperature (Tg) ≥ 150 ℃, it has excellent high temperature resistance and mechanical stability, and is suitable for complex industrial working conditions.
2. Adopting a multi-layer wiring structure design with high wiring density, efficient interconnection of multiple devices can be achieved in a limited space, supporting the integration of complex circuit functions.
3. High precision circuit manufacturing process, precise control of minimum line width/spacing, regular signal transmission path, ensuring signal transmission integrity in high-frequency scenarios.
4. Adopting chemical immersion gold surface treatment process, the contact has excellent oxidation resistance and corrosion resistance, high welding reliability, and extends product storage and service life.
5. Independent power layer and ground layer separation design, combined with impedance control technology, with impedance tolerance of ≤± 10%, effectively reducing signal crosstalk and electromagnetic interference.
6. The metalized hole process is mature, the copper plating on the hole wall is uniform and the thickness meets the standard, the conductivity is excellent, the interlayer signal transmission loss is low, and the power supply stability is guaranteed.
7. Strictly control the machining accuracy, with a tolerance of ≤ ± 0.2mm for the shape and positioning holes, to ensure precise fitting and installation with other components.
8. Adopting symmetrical pressing technology, the flatness of the board is high, and the warpage is less than 2%, avoiding the influence of deformation on the precision of component placement and assembly stability.
9. Compliant with RoHS 2.0 environmental standards, using halogen-free materials and environmentally friendly processes, burning without toxic gas release, meeting the requirements of green production and application.
10. After rigorous environmental reliability testing, it has good resistance to moisture and vibration, and can operate stably in a wide temperature range of -40 ℃ to+120 ℃.
11. Compatible with automated SMT and reflow soldering processes, it can achieve large-scale standardized production, ensuring product consistency and production efficiency.
12. The board edge is processed with rounded corners and chamfers, without sharp edges, which can avoid personnel scratches and component damage during assembly and improve operational safety.
13. Reserve sufficient testing points and debugging interfaces for performance testing and later troubleshooting during the production process, reducing operation and maintenance costs.
14. It has excellent electrical insulation performance, stable dielectric constant, sufficient creepage distance, and avoids the risk of insulation failure in high-voltage scenarios.
15. Widely used in industrial control equipment, communication infrastructure, intelligent measurement and control systems, etc., as the core circuit carrier to support the long-term stable operation of equipment.
