3BSE022366R1通信接口模块

3BSE022366R1通信接口模块

1.产 品 资 料 介 绍：

3BSE022366R1（CI801）通信接口模块极简说明

一、产品概述

3BSE022366R1（CI801）是ABB出品的工业级通信接口模块，核心用于自动化系统中设备间信号交互与数据传输，适配ABB AC800M控制器、贝利Net90等系统，可实现控制器与第三方设备的无缝联动，广泛应用于工业自动化控制场景。

二、核心参数

- 电源：适配工业标准电压，宽幅抗波动；性能：支持多协议通信，集成RS485接口（Modbus-RTU协议，波特率1200-115200bps可调），抗电磁干扰能力达标工业级标准；安装：兼容导轨式固定，适配工业控制箱布局，符合国际接线规范。

三、工作原理

作为系统通信枢纽，接收控制器指令并转发至终端设备，同时采集终端设备运行数据回传至上位机，实现双向数据交互。内置通信故障检测机制，可及时反馈链路异常状态，保障系统通信稳定性，符合CE、UL等国际认证标准。

四、安装与调试要点

- 安装于干燥通风环境，远离强电磁干扰源，通信线路与动力线路分开布线，端子接线紧固并做好标识；调试前断电操作，核对通信协议与波特率参数，测试链路连通性及数据传输稳定性。

五、安全维护与故障排除

- 操作全程断电并做好静电防护，定期巡检接线端子与链路状态，清洁模块表面灰尘；常见故障：通信中断查线路与协议参数，数据丢包查干扰源与接线紧固度，无响应查电源及模块兼容性。

3BSE022366R1通信接口模块 英文资料：

Brief Description of 3BSE022366R1 (CI801) Communication Interface Module

1、 Product Overview

3BSE022366R1 (CI801) is an industrial grade communication interface module produced by ABB. Its core is used for signal interaction and data transmission between equipment in automation systems. It is compatible with ABB AC800M controllers, Bailey Net90 and other systems, and can achieve seamless linkage between controllers and third-party devices. It is widely used in industrial automation control scenarios.

2、 Core parameters

-Power supply: adapted to industrial standard voltage, wide range anti fluctuation; Performance: Supports multi protocol communication, integrates RS485 interface (Modbus RTU protocol, baud rate adjustable from 1200-115200bps), and meets industrial level standards for electromagnetic interference resistance; Installation: Compatible with rail type fixation, suitable for industrial control box layout, in compliance with international wiring standards.

3、 Working principle

As the communication hub of the system, it receives controller instructions and forwards them to terminal devices, while collecting operational data from terminal devices and transmitting it back to the upper computer, achieving bidirectional data exchange. Built in communication fault detection mechanism can provide timely feedback on abnormal link status, ensuring system communication stability and complying with international certification standards such as CE and UL.

4、 Key points for installation and debugging

-Installed in a dry and ventilated environment, away from strong electromagnetic interference sources, communication lines and power lines are wired separately, terminal connections are tightened and labeled; Power off operation before debugging, verify communication protocol and baud rate parameters, test link connectivity and data transmission stability.

5、 Safety maintenance and troubleshooting

-Power off the entire operation process and take measures to protect against static electricity. Regularly inspect the wiring terminals and link status, and clean the dust on the surface of the module; Common faults: communication interruption check line and protocol parameters, data loss check interference sources and wiring tightness, no response check power supply and module compatibility.

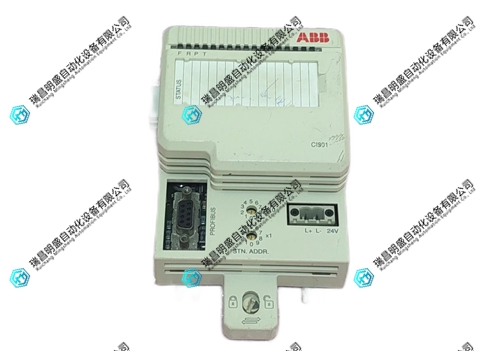

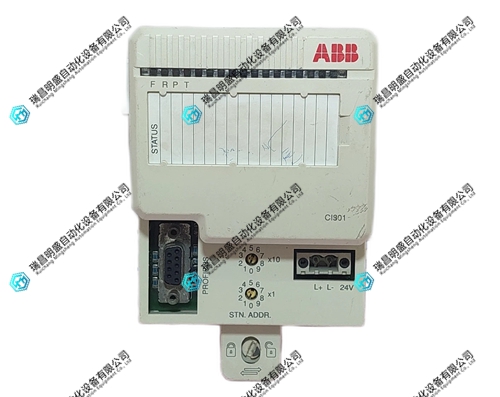

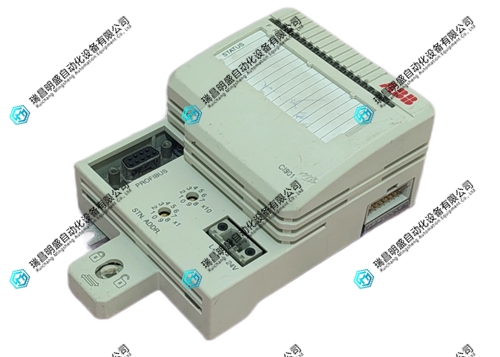

3BSE022366R1通信接口模块 产品展示

产品视频
