ACS150-03E-04A变频器

ACS150-03E-04A变频器

1.产 品 资 料 介 绍：

ACS150-03E-04A变频器产品特点

1.  适配三相动力输入：支持380-480V三相交流电输入，额定输出电流4A，额定功率1.5kW，精准匹配中小型电机驱动需求。

2.  多控制模式可选：内置V/F基础控制与简易矢量控制模式，可按需切换，兼顾常规调速与精密控制场景，适配风机、水泵等多元设备。

3.  宽频率调节范围：输出频率可在0.1-50Hz之间精准调节，支持频率偏置与增益校准，能根据工况微调运行参数，保障设备高效运转。

4.  灵活加减速控制：支持线性与S曲线加减速模式，加减速时间可自由设定，重载启动建议配置30%S曲线，避免机械冲击。

5.  完善保护功能：具备过流、过载、过热、过压四重核心保护，过热保护阈值可设为85℃，有效防护驱动器与电机安全。

6.  丰富信号适配：兼容0-10V电压信号与4-20mA电流信号输入，支持模拟量信号校准，可精准对接各类传感器实现闭环控制。

7.  便捷操作调试：配备本地操作面板，支持参数快速设置与实时监控，可通过端子控制启停，同时兼容电脑联机调试。

8.  节能运行设计：支持休眠唤醒功能，可设定休眠频率阈值，用水、用风低谷期自动休眠，大幅降低能耗。

9.  抗干扰性能优异：优化载波频率设计（默认4kHz），长电缆应用时可降频并适配输出电抗器，减少EMI干扰。

10. 紧凑安装适配：采用紧凑型结构设计，支持DIN导轨安装，接线端子规整可预布线，节省控制柜安装空间。

ACS150-03E-04A变频器 英文资料：

ACS150-03E-04A frequency converter product features

1. Compatible with three-phase power input: Supports 380-480V three-phase AC input, rated output current of 4A, rated power of 1.5kW, accurately matching the driving needs of small and medium-sized motors.

2. Multiple control modes available: Built in V/F basic control and simple vector control modes, switchable as needed, suitable for both conventional speed regulation and precision control scenarios, and adaptable to multiple devices such as fans and pumps.

3. Wide frequency adjustment range: The output frequency can be accurately adjusted between 0.1-50Hz, supporting frequency bias and gain calibration, and can fine tune operating parameters according to working conditions to ensure efficient operation of the equipment.

4. Flexible acceleration and deceleration control: Supports linear and S-curve acceleration and deceleration modes, with freely adjustable acceleration and deceleration times. It is recommended to configure a 30% S-curve for heavy load startup to avoid mechanical impact.

5. Improve protection function: It has four core protections: overcurrent, overload, overheating, and overvoltage. The overheating protection threshold can be set to 85 ℃, effectively protecting the safety of the driver and motor.

6. Rich signal adaptation: Compatible with 0-10V voltage signal and 4-20mA current signal input, supports analog signal calibration, and can accurately interface with various sensors to achieve closed-loop control.

7. Convenient operation and debugging: Equipped with a local operation panel, it supports quick parameter setting and real-time monitoring, can control start and stop through terminals, and is compatible with computer online debugging.

8. Energy saving operation design: Supports sleep wake-up function, can set sleep frequency threshold, automatically sleeps during low water and air usage periods, significantly reducing energy consumption.

9. Excellent anti-interference performance: Optimized carrier frequency design (default 4kHz), can be reduced in frequency and adapted to output reactors for long cable applications, reducing EMI interference.

10. Compact installation adaptation: Adopting a compact structural design, supporting DIN rail installation, the wiring terminals are neat and pre wired, saving installation space in the control cabinet.

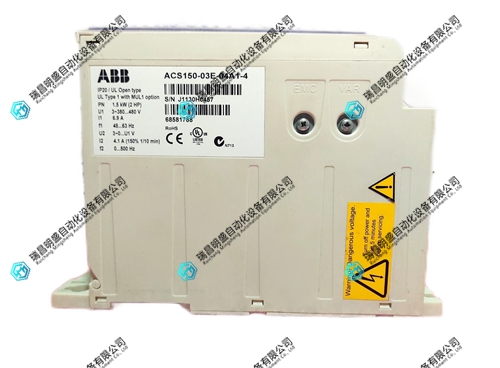

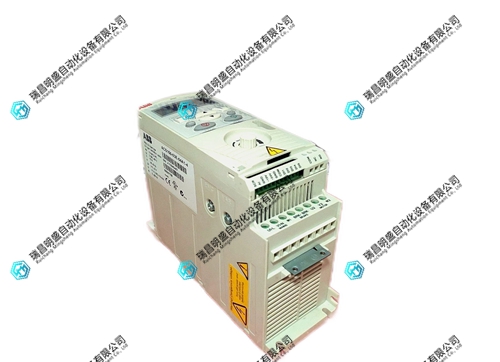

ACS150-03E-04A变频器 产品展示
