1.产 品 资 料 介 绍：
- 额定功率 2.2kW，适配三相异步电机。
- 输入：3×380–500V AC，50/60Hz，额定输入电流 5A。
- 输出：3.8kVA，额定输出电流 5.5A，频率范围 0–180Hz。
- 控制模式：VFC（电压磁通控制）+ CFC（电流磁通控制），支持无编码器矢量控制。
- 过载能力：150% 额定电流（60s）、200% 额定电流（3s）。
- 供电：标准 VME +5VDC 兼容，整机功耗低、散热稳定。
- 内置 EMC 滤波器，满足 EN 55011 B 级电磁兼容标准。
- 防护等级 IP20（机架安装），适合控制柜内集成。
- 工作温度：-10°C 至 +50°C，湿度 5%–95% RH（非凝结）。
- 尺寸：约 105×273×138mm，重量 3.5kg，紧凑型设计。
- 通讯接口：支持 PROFIBUS、CANopen、Modbus RTU 等，适配工业网络。
- 具备过压、过流、欠压、过热、电机堵转等多重保护机制。
- 支持速度闭环、转矩控制、位置跟随，满足高精度传动需求。
- 兼容 SEW 标准电机与第三方异步电机，参数自整定便捷。
- 应用：输送机、包装机械、物料搬运、纺织、印刷、风机水泵等工业场景。
SEW MDV60A0022-5A3-4-00电动驱动器 英文资料：
MDV60A0022-5A3-4-00 is a 2.2kW three-phase vector frequency converter of SEW MOVIDRIVE MD60A series, which focuses on open-loop/closed-loop asynchronous motor control and is suitable for high-precision speed regulation scenarios in industrial automation.
Rated power of 2.2kW, suitable for three-phase asynchronous motors.
Input: 3 × 380-500V AC, 50/60Hz, rated input current 5A.
Output: 3.8kVA, rated output current 5.5A, frequency range 0-180Hz.
Control mode: VFC (Voltage Flux Control)+CFC (Current Flux Control), supports vector control without encoder.
Overload capacity: 150% rated current (60s), 200% rated current (3s).
Power supply: compatible with standard VME+5VDC, with low overall power consumption and stable heat dissipation.
Built in EMC filter, meets EN 55011 B-class electromagnetic compatibility standard.
Protection level IP20 (rack mounted), suitable for integration inside control cabinets.
Working temperature: -10 ° C to+50 ° C, humidity 5% -95% RH (non condensing).
Size: approximately 105 × 273 × 138mm, weight 3.5kg, compact design.
Communication interface: Supports PROFIBUS, CANopen, Modbus RTU, etc., suitable for industrial networks.
Equipped with multiple protection mechanisms such as overvoltage, overcurrent, undervoltage, overheating, and motor stalling.
Support speed closed-loop, torque control, and position following to meet high-precision transmission requirements.
Compatible with SEW standard motors and third-party asynchronous motors, with convenient parameter self-tuning.
Application: Industrial scenarios such as conveyors, packaging machinery, material handling, textiles, printing, fans, and water pumps.

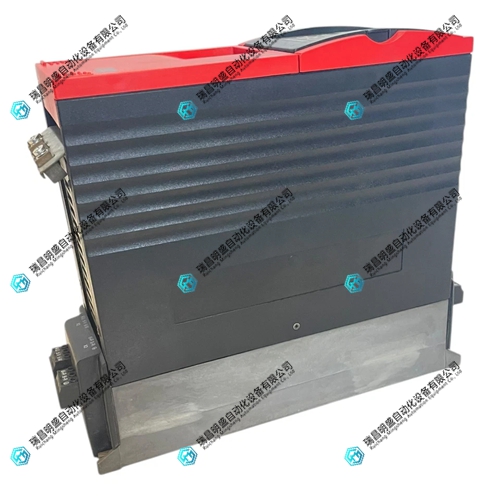

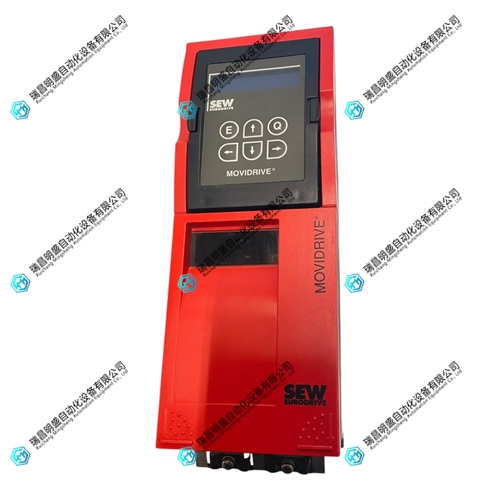

SEW MDV60A0022-5A3-4-00电动驱动器 产品展示
