1.产 品 资 料 介 绍：
Rigaku A932-28-1D(4)控制电路板 产品英文介绍
Rigaku A932-28-1D (4) Control Circuit Board
Product Features
1. Adapt to a 3kW X-ray generator unit in science, responsible for X-ray source start stop and power closed-loop control.
2. Multiple signal interaction channels, linked with high-voltage power supply, water cooling, and safety interlock protection circuits.
3. Onboard hardware fault monitoring, capable of real-time reporting of high voltage anomalies, temperature, and interlock alarm signals.
4. Special PCB anti-interference wiring to resist high-voltage electromagnetic noise interference inside X-ray equipment.
5. Native matching with Rigaku instrument backplane interface, direct replacement, easy and fast device debugging.
Product application areas
1. Physical XRD diffractometer X-ray generator interface control board
2.3kW X-ray tube high-voltage power supply linkage control system
3. XRF fluorescence spectrometer radiation source safety interlock unit
4. Thin film X-ray reflection testing equipment - Radiation source control component
5. Main control board for metal residual stress detection X-ray instrument
6. High voltage control module for powder crystal phase analysis instrument
7. X-ray equipment for characterizing the crystal orientation of semiconductor materials
8. Maintenance spare parts for XRD instruments in university material laboratories
9. Industrial quality inspection X-ray analysis equipment maintenance and replacement project
10. Upgrading and renovating outdated X-ray diffraction equipment in science
This circuit board is a specialized interface control spare for Rigaku X-ray instruments, which controls the output of X-ray generators and safety interlocks, ensuring the stable and safe operation of X-ray analysis equipment.

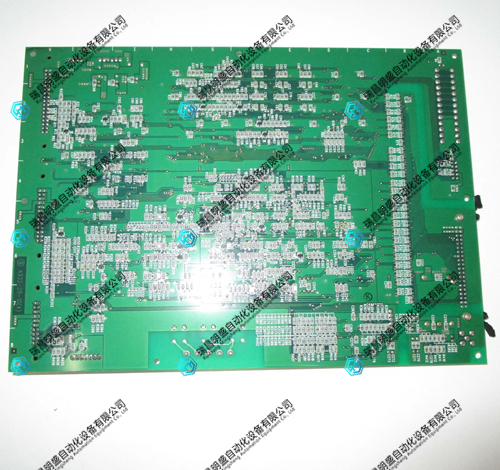

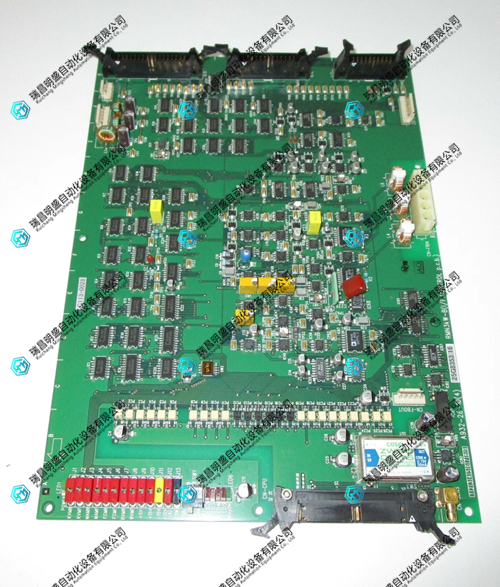

Rigaku A932-28-1D(4)控制电路板 产品展示
