SST-PB3-CLX-RLL 通信模块 是一种用于Rockwell ControlLogix平台的插槽式通讯模块，它支持Profibus-DP主站和从站模式。该模块由Molex公司设计和制造，具备多个关键特性和功能。
SST-PB3-CLX-RLL通信模块是一种用于Rockwell ControlLogix平台的插槽式通讯模块，它支持Profibus-DP主站和从站模式。该模块由Molex公司设计和制造，具备多个关键特性和功能。

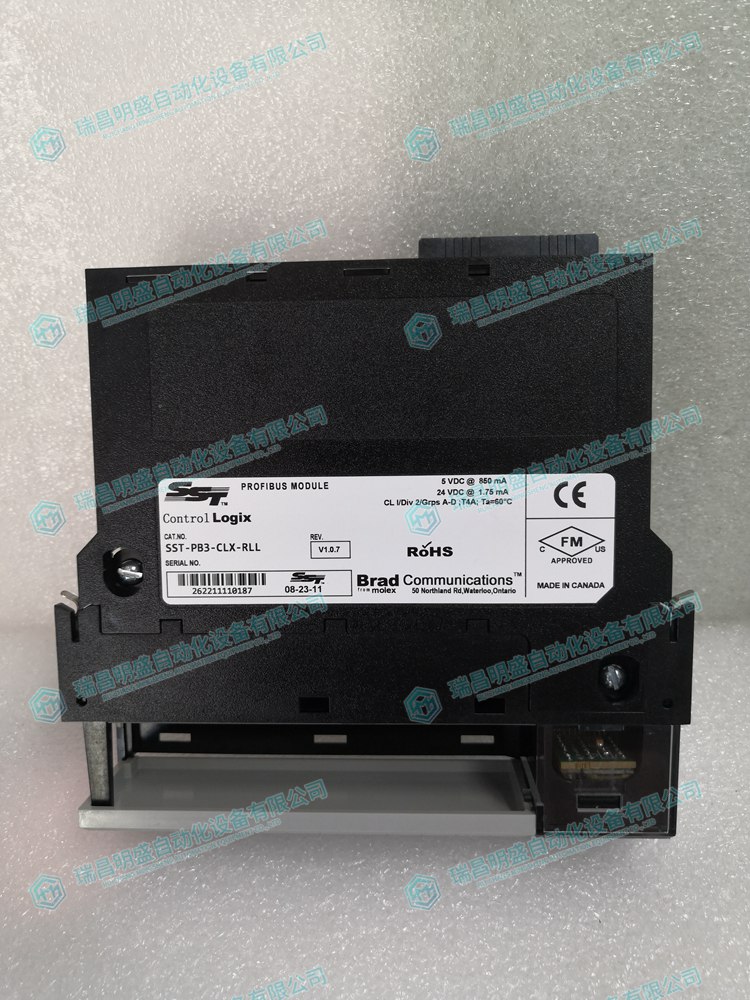

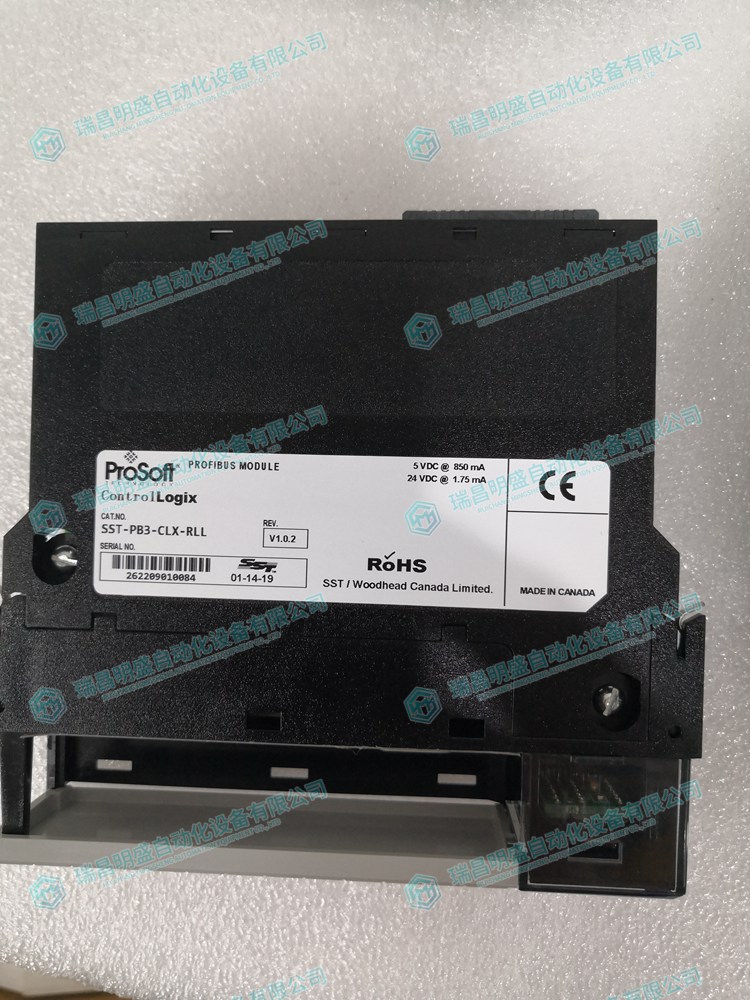

首先，SST-PB3-CLX-RLL模块配备有带有9个引脚的PROFIBUS D-sub母头模块，用于进行通信。每个模块都有一个通信端口，用作PROFIBUS-DP主站和/或从站协议，以与其他PROFIBUS兼容设备交换数据。
其次，该模块重430克，并可用于Allen-Bradley 1756背板系统和霍尼韦尔PlantScape系统的PROFIBUS扫描仪。它有助于启用CLX处理器和位于PROFIBUS网络上的远程I/O设备之间的通信链路。此外，SST-PB3-CLX-RLL模块还显示连接状态以及模块正常运行期间可能发生的任何故障。
为了更方便地集成到ControlLogix系统中，SST-PB3-CLX-RLL模块随附其“附加配置文件”(AOP)，允许使用RSLogix 5000软件轻松集成。该模块支持两种数据传输模式：直接模式和分页模式。直接模式允许在I/O处理器映像中映射PROFIBUS数据，而分页模式则允许从设置到Logix CPU内存中的用户定义的数据空间访问PROFIBUS数据。
此外，SST-PB3-CLX-RLL模块还具有LCD面板，下方配有3个LED指示灯，分别用于显示模块的通信、系统和正常状态。这些指示灯帮助用户快速识别模块的工作状态和任何潜在问题。
在工作温度范围方面，SST-PB3-CLX-RLL模块的工作温度范围在0到60摄氏度之间，确保其在各种环境条件下都能稳定运行。
总的来说，SST-PB3-CLX-RLL通信模块是一种功能强大、性能稳定的设备，适用于需要高效、可靠通信的工业自动化系统。通过与其他PROFIBUS兼容设备配合使用，该模块能够实现高效的数据交换和通信，提升系统的整体性能和可靠性。
SST-PB3-CLX-RLL communication module details introduction:
The SST-PB3-CLX-RLL communication module is a slot based communication module used on the Rockwell ControlLogix platform, which supports Profibus DP master and slave modes. This module is designed and manufactured by Molex and has multiple key features and functions.
Firstly, the SST-PB3-CLX-RLL module is equipped with a PROFIBUS D-sub female module with 9 pins for communication. Each module has a communication port that serves as the PROFIBUS-DP master and/or slave protocol for exchanging data with other PROFIBUS compatible devices.
Secondly, the module weighs 430 grams and can be used for PROFIBUS scanners in Allen Bradley 1756 backplane systems and Honeywell PlantScape systems. It helps to enable communication links between CLX processors and remote I/O devices located on the PROFIBUS network. In addition, the SST-PB3-CLX-RLL module also displays the connection status and any faults that may occur during normal module operation.
For easier integration into the ControlLogix system, the SST-PB3-CLX-RLL module comes with its Additional Configuration File (AOP), allowing for easy integration using RSLogix 5000 software. This module supports two data transmission modes: direct mode and paging mode. Direct mode allows the mapping of PROFIBUS data in the I/O processor image, while paging mode allows access to PROFIBUS data from user-defined data spaces set to Logix CPU memory.
In addition, the SST-PB3-CLX-RLL module also has an LCD panel with three LED indicator lights below, which are used to display the communication, system, and normal status of the module. These indicator lights help users quickly identify the working status of the module and any potential issues.
In terms of working temperature range, the SST-PB3-CLX-RLL module operates within the range of 0 to 60 degrees Celsius, ensuring stable operation under various environmental conditions.
Overall, the SST-PB3-CLX-RLL communication module is a powerful and stable device suitable for industrial automation systems that require efficient and reliable communication. By using it in conjunction with other PROFIBUS compatible devices, this module can achieve efficient data exchange and communication, improving the overall performance and reliability of the system.
