Alcatel-Lucent 3HE00101AB交换机端口模块

 ALCATEL LUCENT 3HE00101AB交换机端口模块

1.产 品 资 料 介 绍：

中文资料：

Alcatel-Lucent 3HE00101AB 交换机端口模块 是阿尔卡特朗讯（现隶属于诺基亚 Nokia）通信设备中的一款高性能接口扩展板卡，用于提供高速以太网端口，广泛应用于其运营商级设备，如 7705 Service Aggregation Router（SAR） 或 7450 ESS（Ethernet Service Switch） 系列中。

一、基本信息

二、主要功能

1. 端口扩展

   • 为主交换/路由设备增加多个物理以太网端口，用于连接用户设备、上联核心或下联接入节点。

2. 高性能数据处理

   • 支持线速转发，低延迟高吞吐，适用于骨干汇聚或企业边缘网络。

3. 多种接口支持

   • 支持 RJ-45、SFP/SFP+ 光电混合端口，满足不同速率和链路介质需求。

4. 支持丰富协议栈

   • 包括 VLAN、QinQ、MPLS、IP Routing、QoS、ACL 等高级网络功能。

英文资料：

The Alcatel Lucent 3HE00101AB Switch Port Module is a high-performance interface expansion board in Alcatel Lucent (now part of Nokia) communication equipment, used to provide high-speed Ethernet ports and widely used in its carrier grade devices, such as the 7705 Service Aggregation Router (SAR) or 7450 ESS (Ethernet Service Switch) series.

1、 Basic Information

Project Description

Model 3HE00101AB

Device type: Switch port module/Ethernet interface board

Manufacturer Alcatel Lucent (now Nokia)

The adaptation platform may be used for 7x50 series (such as 7750 SR, 7705 SAR) switching routing devices

The main purpose is to provide multi port Gigabit or 10 Gigabit Ethernet connections for network access and aggregation

2、 Main functions

Port Expansion

Add multiple physical Ethernet ports to the main switching/routing equipment to connect user devices, upstream cores, or downstream access nodes.

High performance data processing

Supports line speed forwarding, low latency and high throughput, suitable for backbone aggregation or enterprise edge networks.

Multiple interface support

Supports RJ-45, SFP/SFP+optoelectronic hybrid ports to meet different speed and link medium requirements.

Support rich protocol stack

Including advanced network functions such as VLAN, QinQ, MPLS, IP Routing, QoS, ACL, etc.

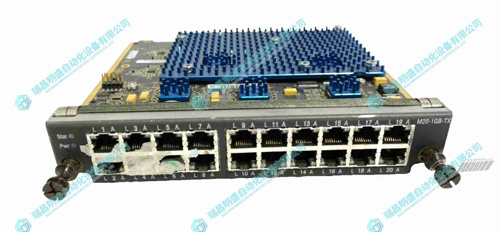

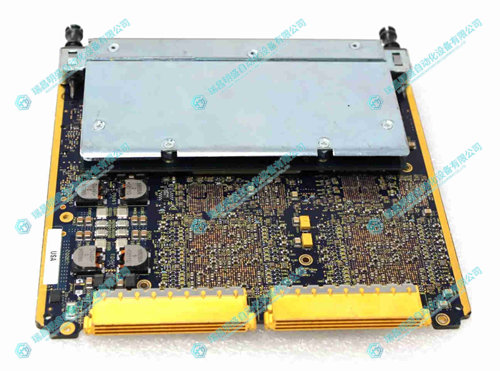

2.产      品      展      示
