KLA-Tencor 710-650879-20驱动器组件
1.产 品 资 料 介 绍：
中文资料：
KLA Tencor 710-650879-20 驱动器组件（Dual Stepper Driver PCB）是专门为KLA Tencor晶圆检测设备设计的重要电子模块，主要用于控制步进电机的驱动与定位，是设备精确运动控制的核心部件之一。
详细功能说明
步进电机驱动控制
该组件能够精确控制多路步进电机的转动，实现晶圆检测设备机械臂或传输系统的定位和移动。
通过接收来自主控制单元的脉冲和方向信号，驱动电机按照预设程序运动，确保检测流程的准确性和稳定性。
信号转换与处理
将高层控制逻辑信号转换为电机驱动信号，包括电流和电压的调节，保障电机的平稳启动、运行和停止。
具备一定的信号滤波和抗干扰能力，减少外界环境对信号的影响，提升系统可靠性。
多轴驱动支持
支持多轴步进电机的同步或独立驱动，满足复杂动作协调需求，提升设备的自动化和灵活性。
模块化设计
驱动器组件采用模块化设计，便于维护人员快速替换和升级，提高设备维护效率。
结构紧凑，适合设备内部有限空间的安装。
稳定性和耐用性
设计考虑工业环境，采用耐高温、抗震动的元件，确保长时间运行的稳定性。
具备过流、过压保护机制，防止电路损坏，保障设备安全。
应用场景
晶圆缺陷检测系统
如 Surfscan 系列设备，驱动机械臂精确定位晶圆表面，保证检测的全面性和高分辨率。半导体制造自动化设备
控制传送装置、载具及其他执行机构，实现高效稳定的生产过程。精密运动控制系统
应用于需要高精度定位的各类工业自动化设备中。
英文资料：
The KLA Tencor 710-650879-20 Dual Stepper Driver PCB is an important electronic module specifically designed for KLA Tencor wafer inspection equipment. It is mainly used to control the driving and positioning of stepper motors and is one of the core components for precise motion control of the equipment.
Detailed Function Description
Stepper motor drive control
This component can accurately control the rotation of multiple stepper motors, achieving the positioning and movement of wafer inspection equipment robotic arms or transmission systems.
By receiving pulses and directional signals from the main control unit, the motor is driven to move according to a preset program, ensuring the accuracy and stability of the detection process.
Signal Conversion and Processing
Convert high-level control logic signals into motor drive signals, including current and voltage regulation, to ensure smooth start, operation, and stop of the motor.
Having certain signal filtering and anti-interference capabilities, reducing the influence of external environment on signals, and improving system reliability.
Multi axis drive support
Support synchronous or independent driving of multi axis stepper motors to meet complex motion coordination requirements and enhance equipment automation and flexibility.
Modular design
The driver components adopt modular design, which facilitates quick replacement and upgrade by maintenance personnel and improves equipment maintenance efficiency.
Compact structure, suitable for installation in limited internal space of equipment.
Stability and durability
The design considers industrial environments and uses components that are resistant to high temperatures and vibrations to ensure long-term stability during operation.
Equipped with overcurrent and overvoltage protection mechanisms to prevent circuit damage and ensure equipment safety.
Application scenarios
Wafer defect detection system
The Surfscan series equipment drives the robotic arm to accurately position the wafer surface, ensuring comprehensive and high-resolution detection.
Semiconductor manufacturing automation equipment
Control transmission devices, vehicles, and other actuators to achieve efficient and stable production processes.
Precision motion control system
Applied to various industrial automation equipment that requires high-precision positioning.

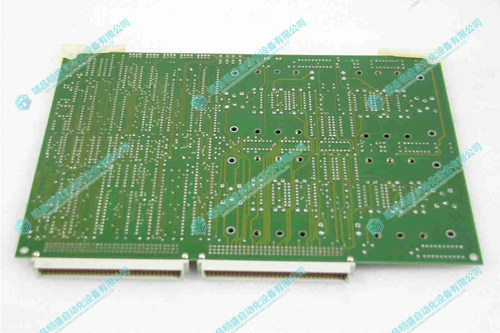

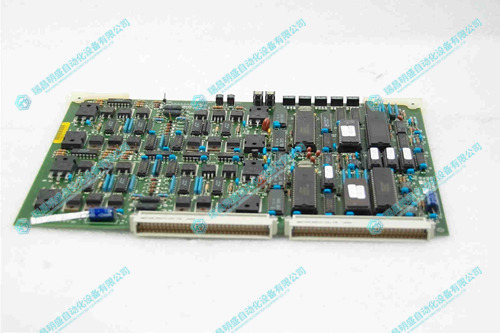

2.产 品 展 示
