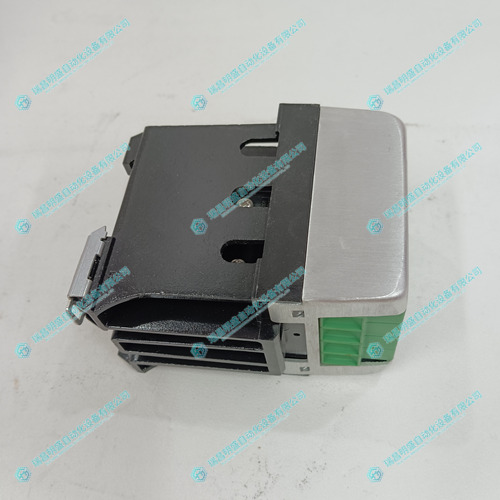

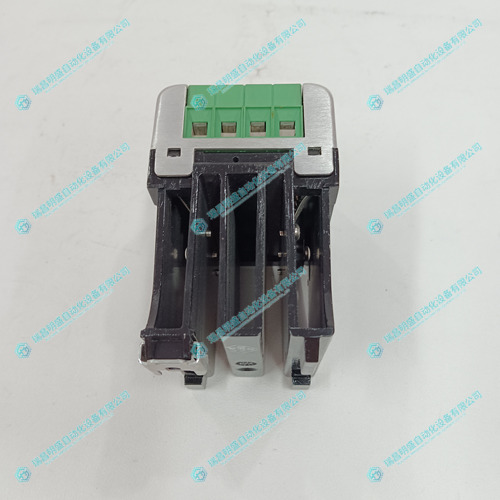

PHOENIX CONTACT QUINT-DIODE-40 2938963 冗余模块

  PHOENIX CONTACT  QUINT-DIODE-40 2938963 冗余模块

1.产 品 资 料 介 绍：

中文资料：

PHOENIX CONTACT QUINT-DIODE-40（型号2938963）是一款工业电源冗余模块，主要用于实现电源输入的冗余保护，保证系统在主电源故障时能由备用电源自动切换，确保供电稳定。

主要参数：

• 输入电压范围：0 V DC 至 30 V DC

• 额定输入电流：单路40 A，双路各20 A

• 输出电压：24 V DC

• 输出电流：最大40 A

• 最大功耗：约20 W（额定负载下）

• 效率：大于97%

• 电气隔离：输入/输出与接地间1 kV

• 工作温度：-25°C 至 +70°C（高于60°C时需降额使用）

• 保护等级：IP20，适合安装在封闭控制柜内

• 安装方式：DIN导轨安装

• 连接方式：螺钉端子，支持0.5至16 mm²导线

应用范围包括自动化控制系统、过程控制、电力监控、通信设备供电和交通控制系统等需要高可靠性电源的场景。

英文资料：

PHOENIX CONTACT QUINT-DIODE-40 (model 2938963) is an industrial power redundancy module mainly used to achieve redundant protection of power input, ensuring that the system can automatically switch from the backup power supply in case of main power failure, and ensuring stable power supply.

Main parameters:

Input voltage range: 0 V DC to 30 V DC

Rated input current: Single circuit 40 A, dual circuit 20 A each

Output voltage: 24 V DC

Output current: maximum 40 A

Maximum power consumption: approximately 20 W (under rated load)

Efficiency: greater than 97%

Electrical isolation: 1 kV between input/output and ground

Working temperature: -25 ° C to+70 ° C (derating is required for use above 60 ° C)

Protection level: IP20, suitable for installation in enclosed control cabinets

Installation method: DIN rail installation

Connection method: Screw terminal, supporting wires ranging from 0.5 to 16 mm ²

The application scope includes scenarios that require high reliability power supply, such as automation control systems, process control, power monitoring, communication equipment power supply, and traffic control systems.

2.产      品      展      示
