TEL Tokyo Electron 2981-600395-11 端子模块简介

1. 产品定义：
   2981-600395-11 是 Tokyo Electron（TEL）半导体设备中的端子模块，主要用于设备内部多条电气线路的连接、分配与接口管理。

2. 主要功能：
   实现电源线、信号线的安全连接和分配，保障设备内部电气线路的整齐和可靠性，方便维护和排查。

3. 适用设备类型：
   广泛应用于 TEL 的各种晶圆处理设备，如 CVD、Etch、Track、Load Port、EFEM 等控制柜及配电柜中。

4. 连接类型：
   支持多芯电缆接入，适用于直流电源线、控制信号线、地线及通讯线路等。

5. 产品特点：

   • 多通道设计，排布合理，便于线路管理

   • 具备良好的绝缘性能和机械固定结构

   • 带标识条，方便快速识别与查线

   • 采用工业标准导轨安装，方便模块化布置

6. 安装位置：
   安装于设备的控制柜或配电柜内部，通常固定于导轨或面板上，与电源板、控制器板等模块配合使用。

7. 典型应用场景：

   • 电机控制电源与信号线分配

   • 传感器信号的集中接入

   • 安全联锁与紧急停止回路的线路管理

   • 外部接口信号的汇集点

英文资料：

Introduction to TEL Tokyo Electron 2981-600395-11 Terminal Module

Product definition:

2981-600395-11 is a terminal module in Tokyo Electron (TEL) semiconductor equipment, mainly used for the connection, distribution, and interface management of multiple electrical lines inside the equipment.

Main functions:

Ensure the safe connection and distribution of power and signal lines, guarantee the neatness and reliability of the internal electrical circuits of the equipment, and facilitate maintenance and troubleshooting.

Applicable device types:

Widely used in various wafer processing equipment of TEL, such as CVD, Etch, Track, Load Port, EFEM control cabinets and distribution cabinets.

Connection type:

Supports multi-core cable connection, suitable for DC power lines, control signal lines, ground wires, and communication lines.

Product features:

Multi channel design, reasonable layout, convenient for line management

Having good insulation performance and mechanical fixing structure

With identification strips, it is convenient for quick identification and line checking

Adopting industrial standard guide rail installation for convenient modular layout

Installation location:

Installed inside the control cabinet or distribution cabinet of the equipment, usually fixed on rails or panels, and used in conjunction with modules such as power boards and controller boards.

Typical application scenarios:

Motor control power supply and signal line distribution

Centralized access of sensor signals

Line management of safety interlock and emergency stop circuit

Collection point for external interface signals

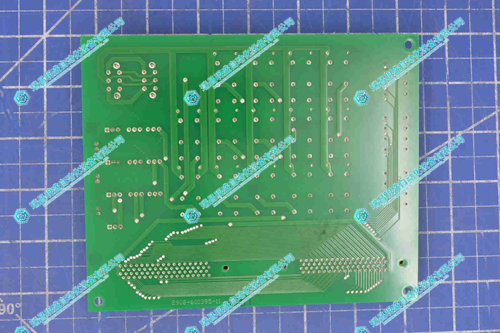

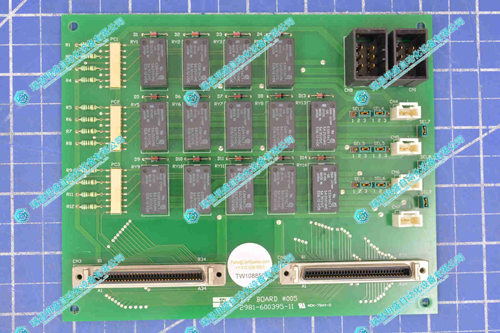

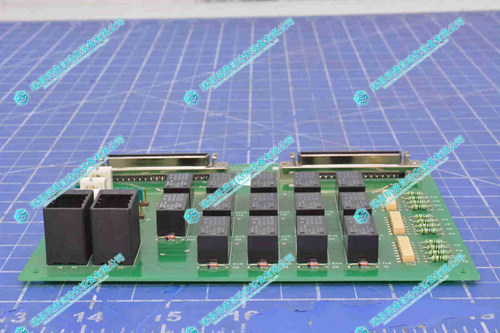

2.产      品      展      示
