TEL Tokyo Electron E240-000057-11控制器冷却风扇卡
1.产 品 资 料 介 绍：
中文资料：
产品型号：E240-000057-11
产品名称：控制器冷却风扇卡（Controller Cooling Fan Card）
制造商：Tokyo Electron Ltd.（TEL）
部件类别：散热与风扇控制模块
一、产品概述：

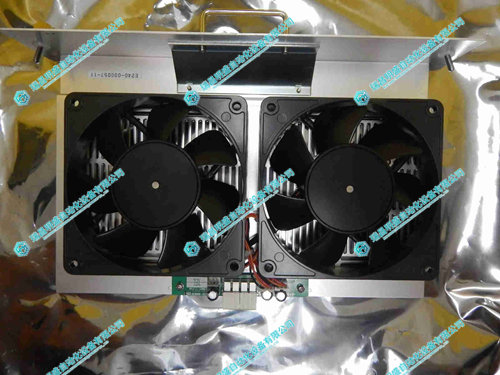

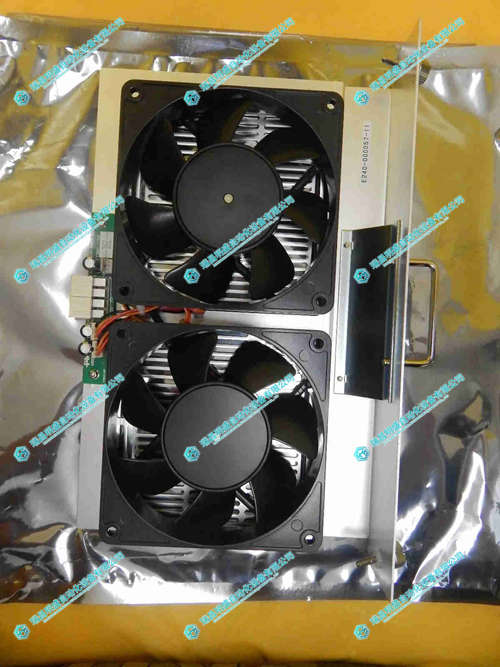

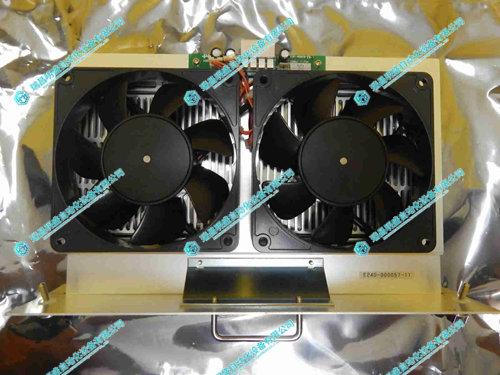

E240-000057-11 控制器冷却风扇卡 是TEL半导体设备中用于控制和管理控制器冷却风扇的电子模块。该模块通过监控风扇状态，调节风扇转速，实现设备控制器及关键电子部件的有效散热，保障设备长期稳定运行。
此风扇卡集成风扇驱动、状态检测和保护功能，是设备热管理系统的重要组成部分。
二、主要功能：
| 功能模块 | 说明 |
|---|---|
| 风扇驱动控制 | 调节冷却风扇的转速以适应温度变化 |
| 状态监测 | 实时检测风扇转速和工作状态，反馈异常报警 |
| 过载保护 | 防止风扇电机过载损坏，确保安全运行 |
| 接口连接 | 与设备主控板和风扇电机连接，支持信号通信 |
| 故障诊断 | 支持设备系统获取风扇故障信息，便于维护 |
三、技术参数（典型值推测）：
| 项目 | 说明 |
|---|---|
| 工作电压 | 通常为12V或24V DC |
| 风扇转速范围 | 依风扇规格，支持PWM调速或电压调速 |
| 监测信号 | 风扇转速传感器信号输入（如Tach信号） |
| 保护功能 | 过流、过温和停转报警 |
| 连接接口 | 多针连接器或端子排 |
英文资料：
Product model: E240-000057-11
Product Name: Controller Cooling Fan Card
Manufacturer: Tokyo Electron Ltd. (TEL)
Component category: Heat dissipation and fan control module
1、 Product Overview:
E240-000057-11 Controller Cooling Fan Card is an electronic module used in TEL semiconductor equipment to control and manage the controller cooling fan. This module monitors the status of the fan, adjusts the fan speed, and achieves effective heat dissipation for the device controller and key electronic components, ensuring long-term stable operation of the equipment.
This fan card integrates fan drive, status detection, and protection functions, and is an important component of the device's thermal management system.
2、 Main functions:
Function module description
Fan drive control adjusts the speed of the cooling fan to adapt to temperature changes
Real time monitoring of fan speed and working status, feedback of abnormal alarms
Overload protection prevents damage to the fan motor due to overload, ensuring safe operation
Interface connection with device main control board and fan motor, supporting signal communication
Fault diagnosis supports the device system to obtain fan fault information for easy maintenance
3、 Technical parameters (typical value estimation):
Project Description
The working voltage is usually 12V or 24V DC
The fan speed range depends on the fan specifications and supports PWM speed regulation or voltage speed regulation
Monitoring signal fan speed sensor signal input (such as Tach signal)
Protection function overcurrent, over temperature, and shutdown alarm
Multi pin connector or terminal block for connecting interfaces
